Recuperator CLIMTEC Quattro 125 profi – Single Room MVHR Heat Recovery System
Single Room MVHR Heat Recovery System
Recuperator CLIMTEC Quattro 125

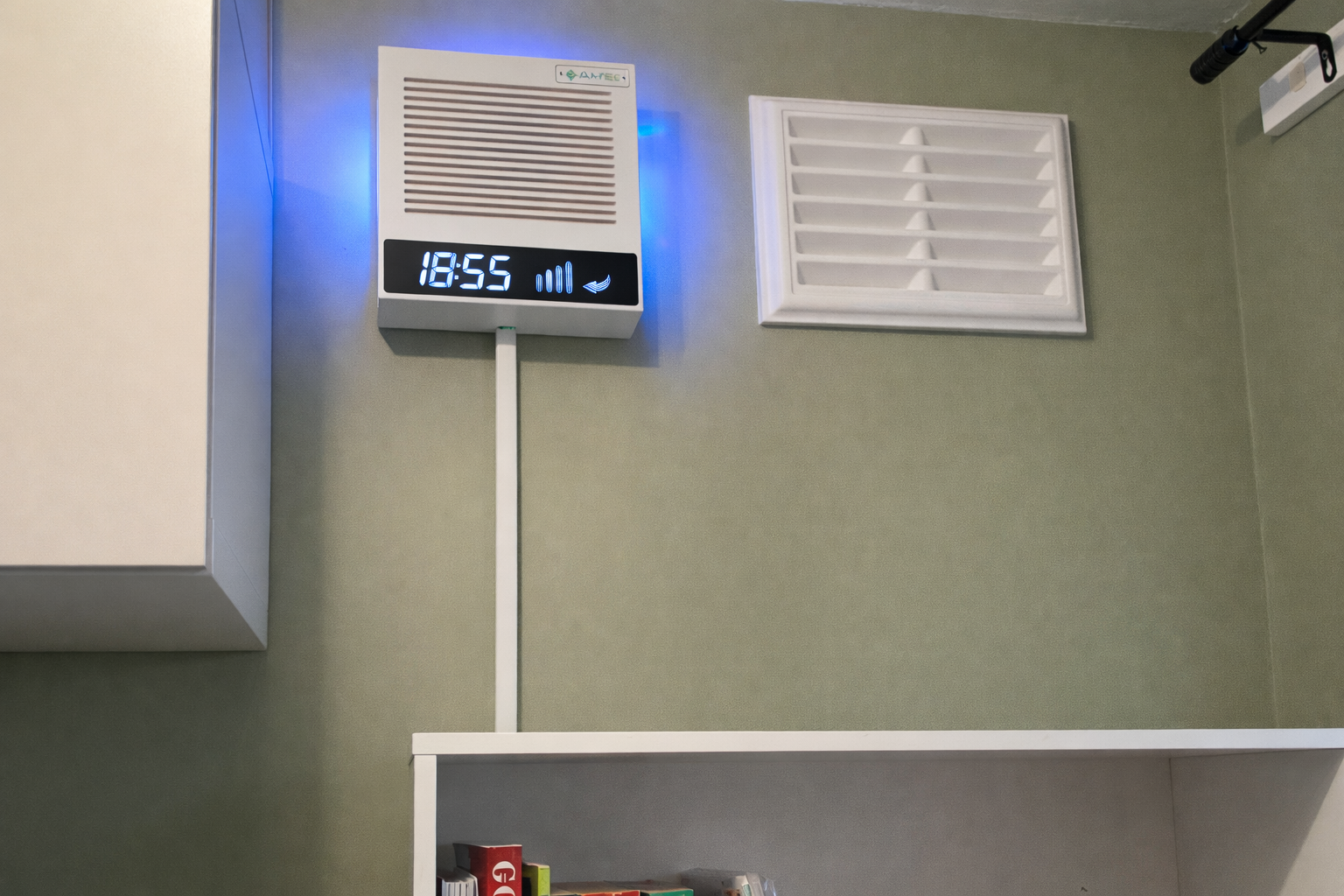

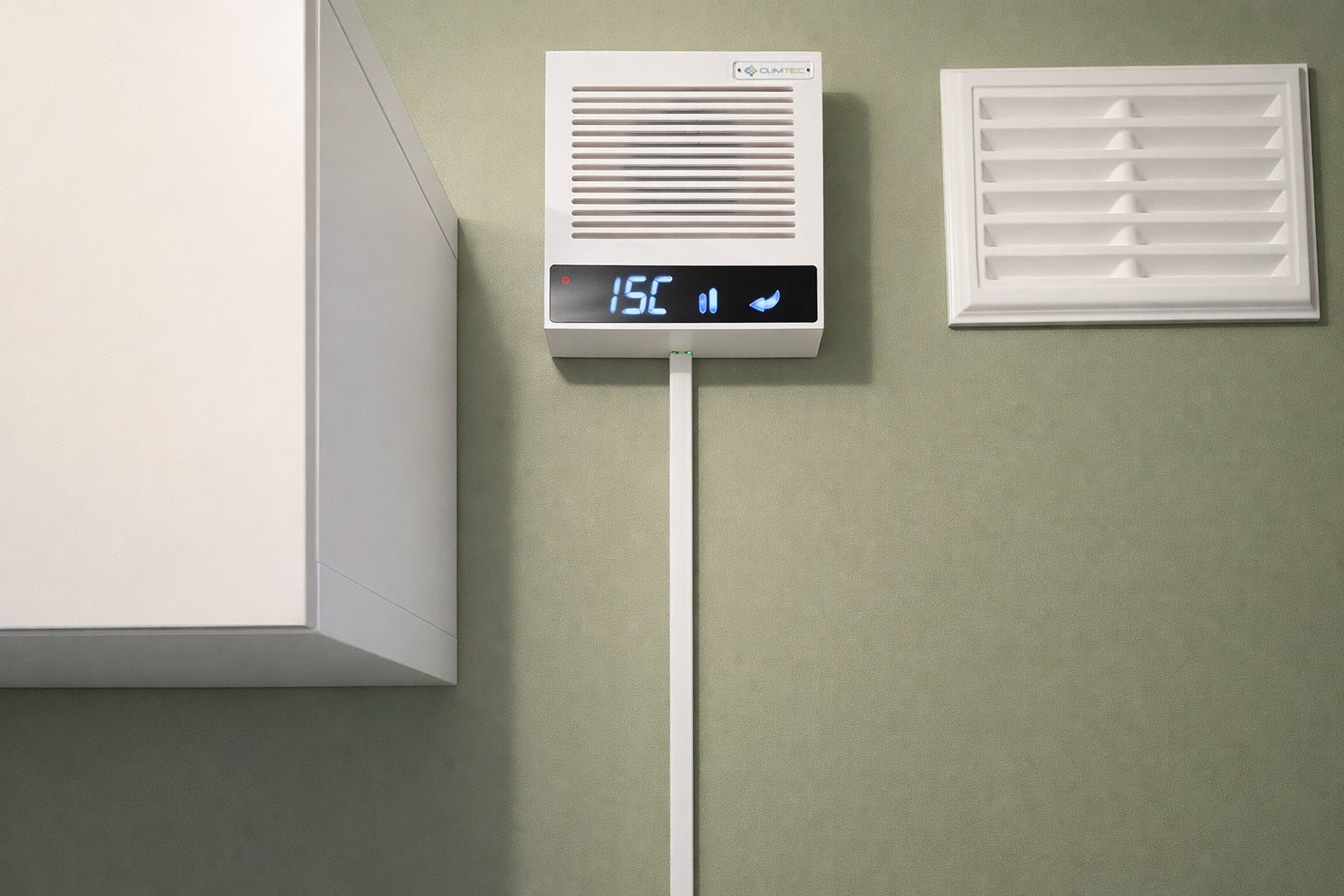

Wall-Mounted Heat Recovery Ventilation Unit with Aluminium Heat Exchanger Quattro 125 profi.
Ensure a healthier indoor environment with this compact, wall-mounted heat recovery unit. Designed to provide continuous fresh air while efficiently removing stale indoor air, it helps prevent damp, mould, and mildew — keeping your home dry and comfortable all year round.
The high-performance aluminium heat exchanger guarantees excellent thermal efficiency and long-term durability, thanks to its corrosion resistance. With balanced supply and extract airflow, it delivers effective ventilation without energy loss.
- Acrylic surface

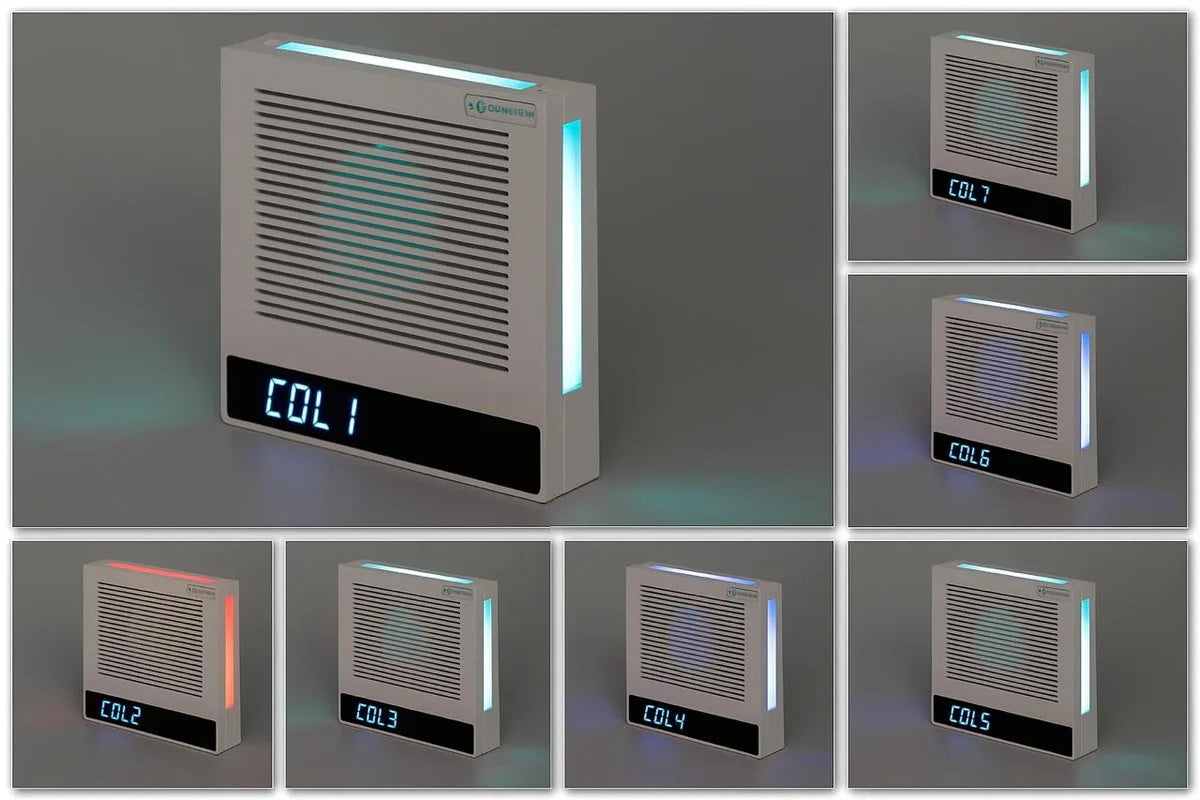

- Led backlighting
- Sensors (temperature, CO₂, humidity)
- Clock
- Aluminum heat exchanger
- Integrated preheat function

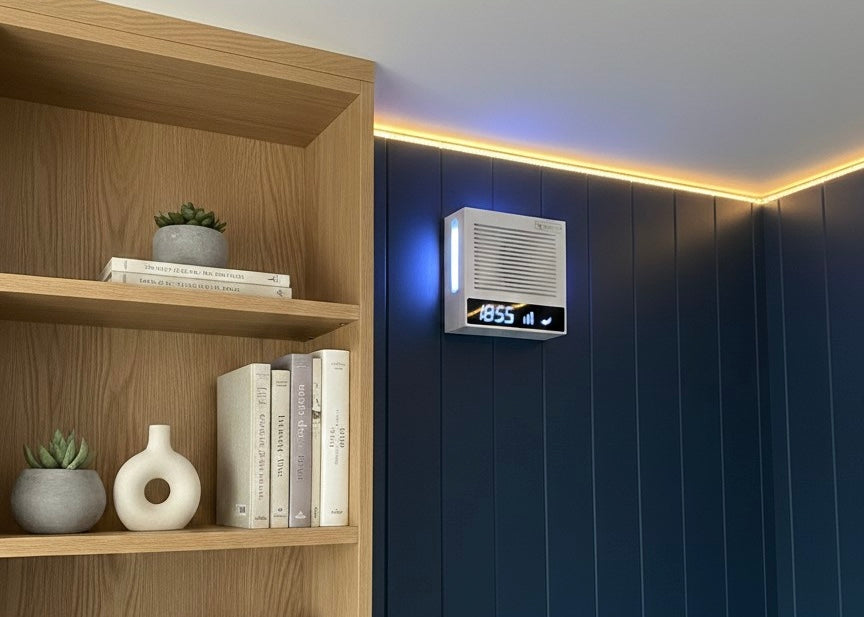

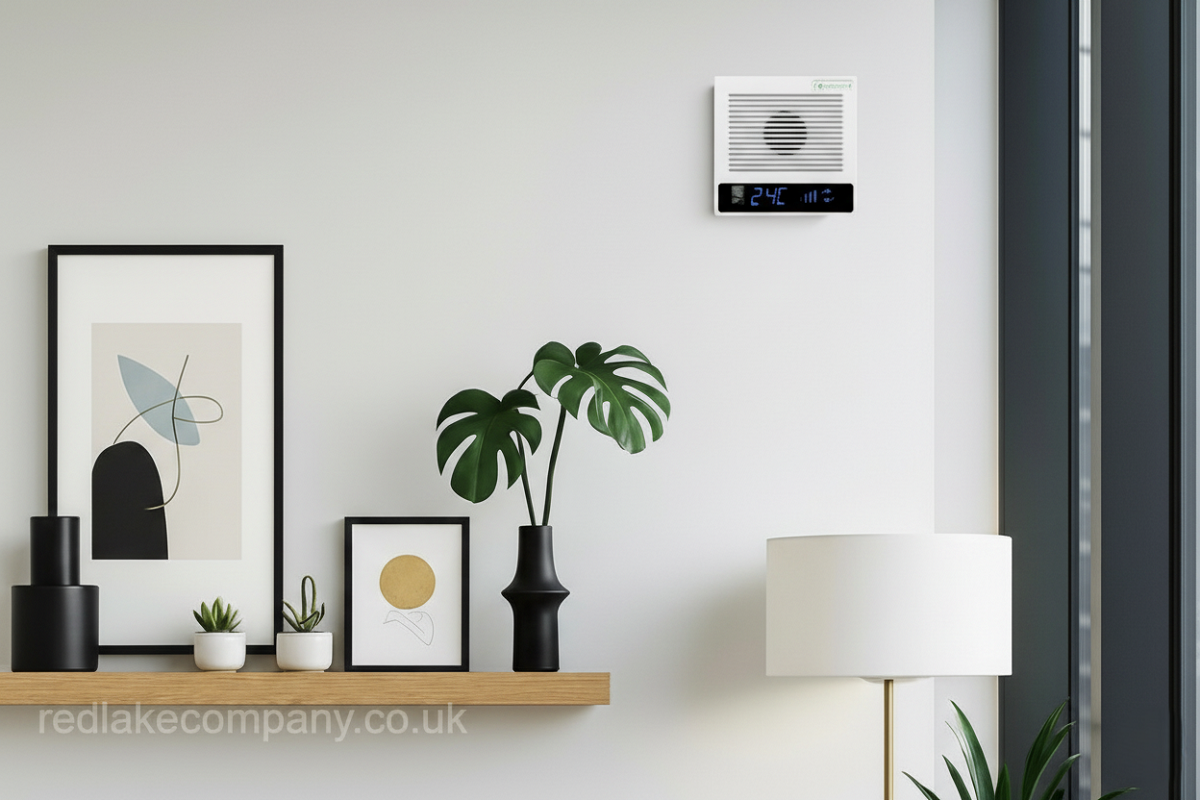

The new Climtec recuperator series combines eco-friendly materials with modern technologies. The stylish design of the recuperator allows it to blend seamlessly with any interior.

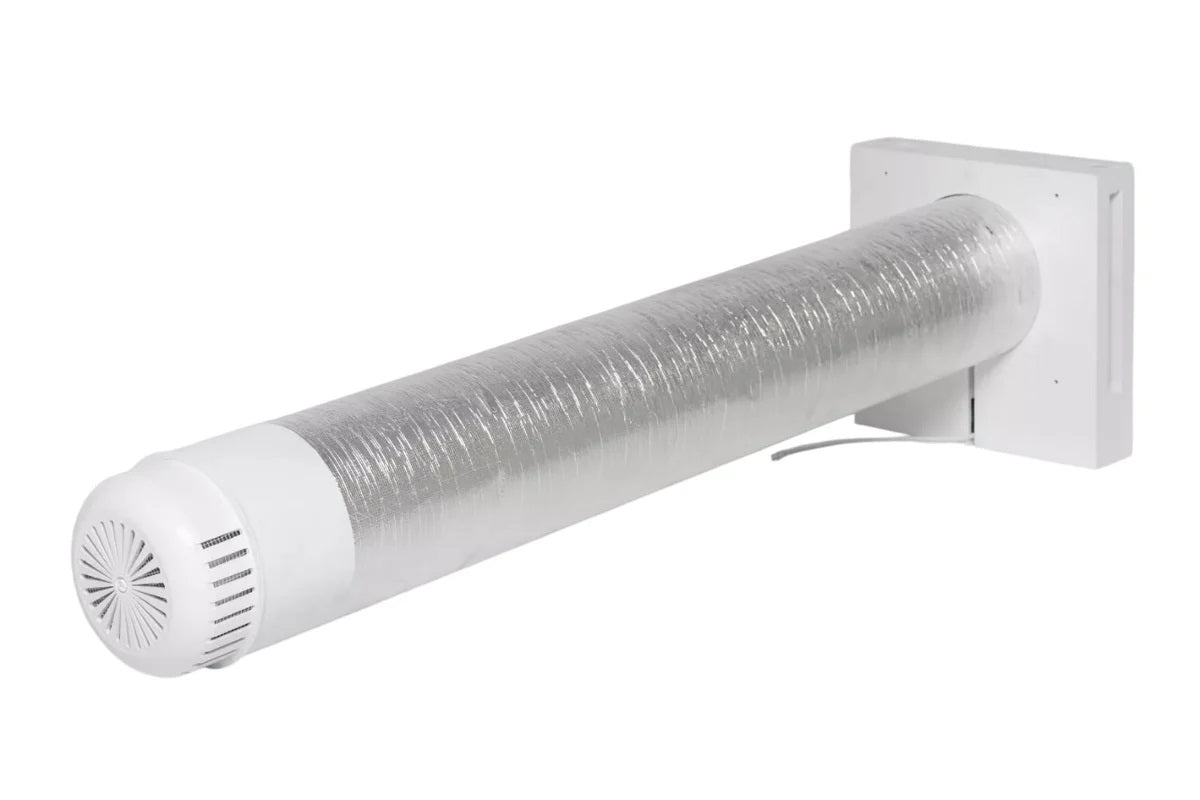

Full-featured supply and extract ventilation, with two fans included.
Technical Specifications:
- Diameter of the working module body without insulation, mm: 125
- Mounting hole diameter, mm: 142
- Length, mm: 410-1000

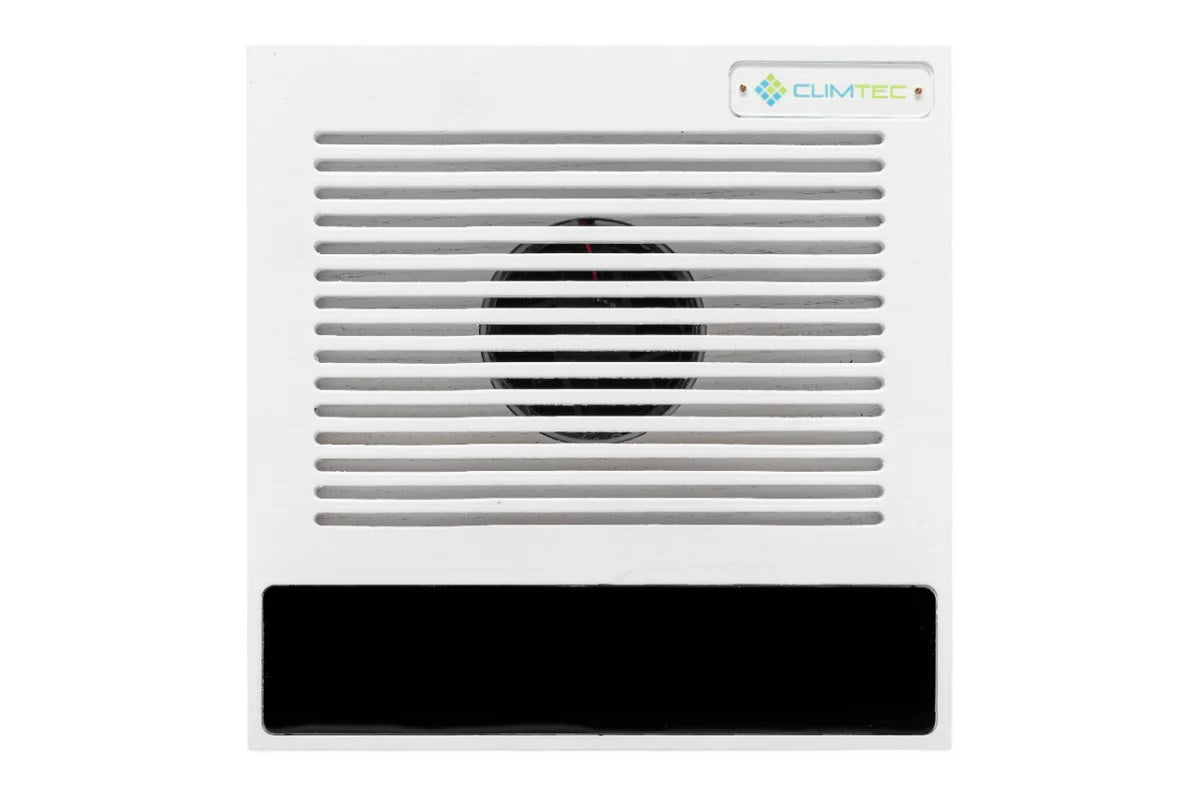

- Front panel size, mm: 210 x 210
- Weight, kg: 2.5
- Efficiency, %: Up to 93
- Supply/exhaust air volume at maximum power, m³/h: 60/60
- Supply/exhaust air volume at minimum power, m³/h: 25/25
- Recommended room area up to, m²: 20-25
- Recommended number of people in the room up to: 4
- Voltage, V: 220/230
- Power consumption in recovery mode without reheating heater, W: 7
- Thermal power of the heating element, W: 40
- Noise level, dB, min/max: 22/38
Features:
- Aluminum diametrical plate heat exchanger: Yes
- Flow control valve: Auto
- Air purification filter (G3): Yes
- Information LED panel: Yes
- CO₂ sensor: Yes
- Supply air temperature sensor: Yes
- Outdoor temperature sensor: Yes
- Humidity sensor: Yes
- Drainage channel heating: No
- Front panel made of MDF and acrylic: Yes
Control (Remote control):
- Number of speeds: 4
- Operating modes: Recovery, Supply, Exhaust
- Timer: Yes

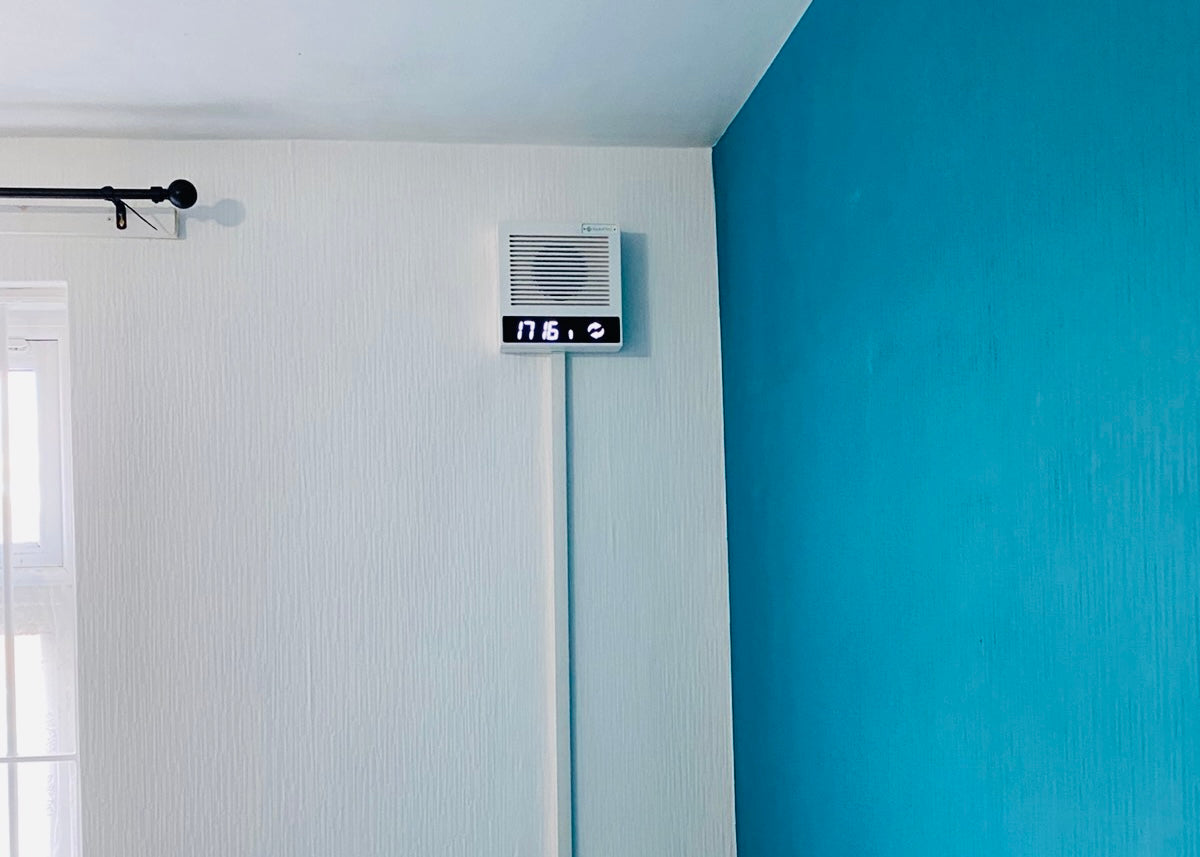

- Clock: Yes

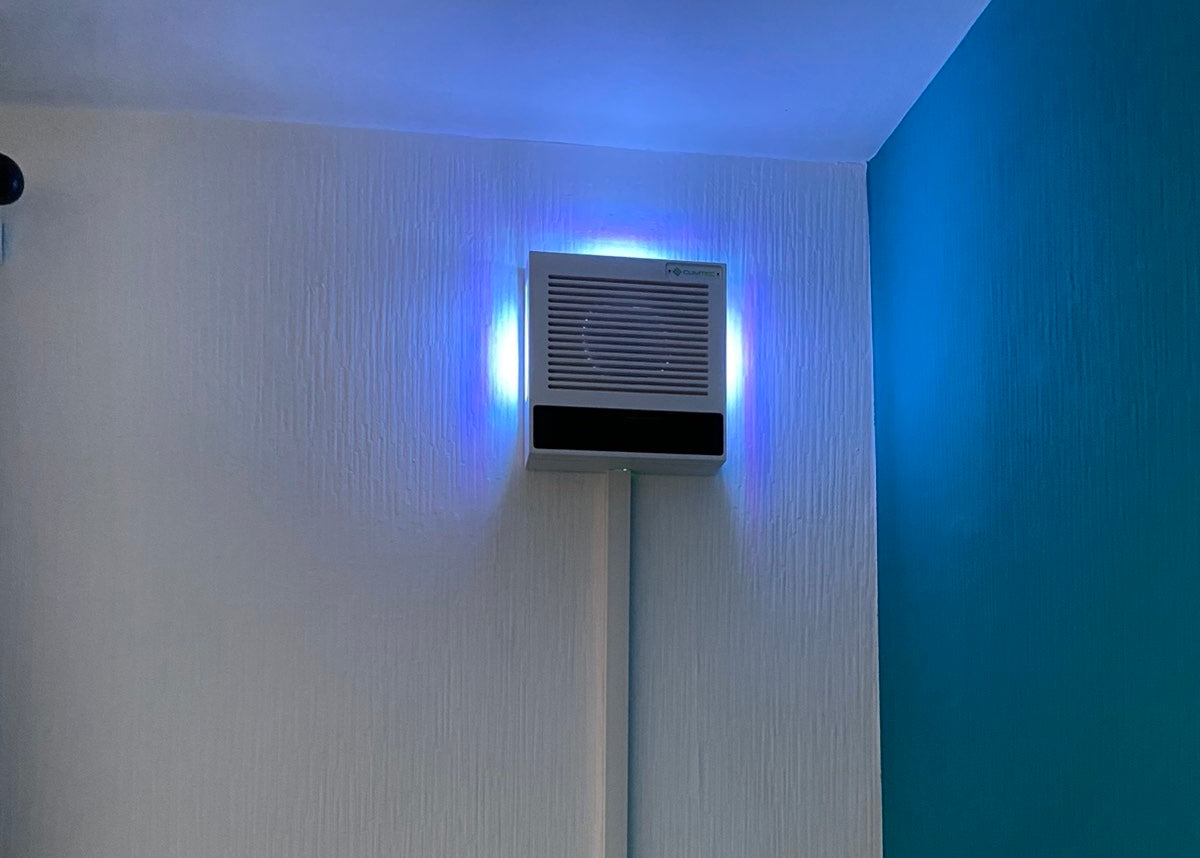

- LED backlight: Yes
Full Range of Models:
CLIMTEC Quattro 100 profi - Suitable for spaces up to 15 m²
CLIMTEC Quattro 125 profi - Suitable for spaces up to 20 m²
CLIMTEC Quattro 150 profi - Suitable for spaces up to 40 m²
CLIMTEC Quattro 200 profi - Suitable for spaces up to 90 m²
Click for more information:
Catalogue
Manual and recommendations
Device length change manual
You can install the CLIMTEC energy recovery unit yourself or use our installation service.
