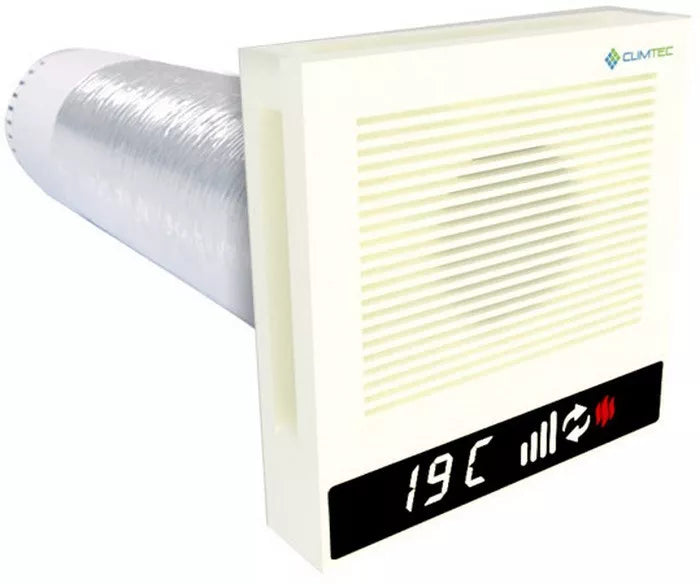

Recuperator CLIMTEC Quattro 100 profi – Single Room MVHR Heat Recovery System
Single Room MVHR Heat Recovery System
Recuperator CLIMTEC Quattro 100
Wall-Mounted Heat Recovery Ventilation Unit with Aluminium Heat Exchanger Quattro 100 profi.
Ensure a healthier indoor environment with this compact, wall-mounted heat recovery unit. Designed to provide continuous fresh air while efficiently removing stale indoor air, it helps prevent damp, mould, and mildew — keeping your home dry and comfortable all year round.
The high-performance aluminium heat exchanger guarantees excellent thermal efficiency and long-term durability, thanks to its corrosion resistance. With balanced supply and extract airflow, it delivers effective ventilation without energy loss.
- Acrylic surface

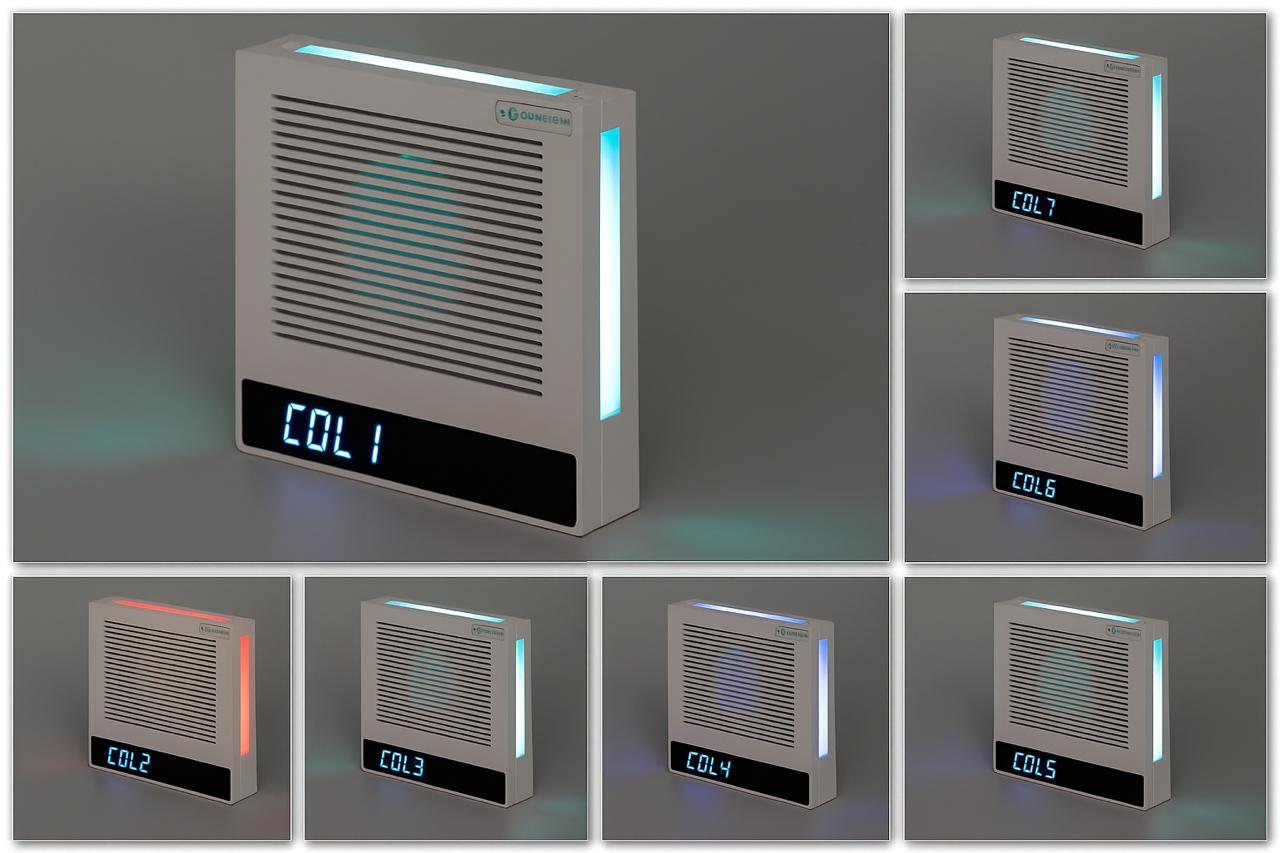

- Led backlighting
- Sensors (temperature, CO₂, humidity)
- Clock
- Aluminum heat exchanger
- Integrated preheat function

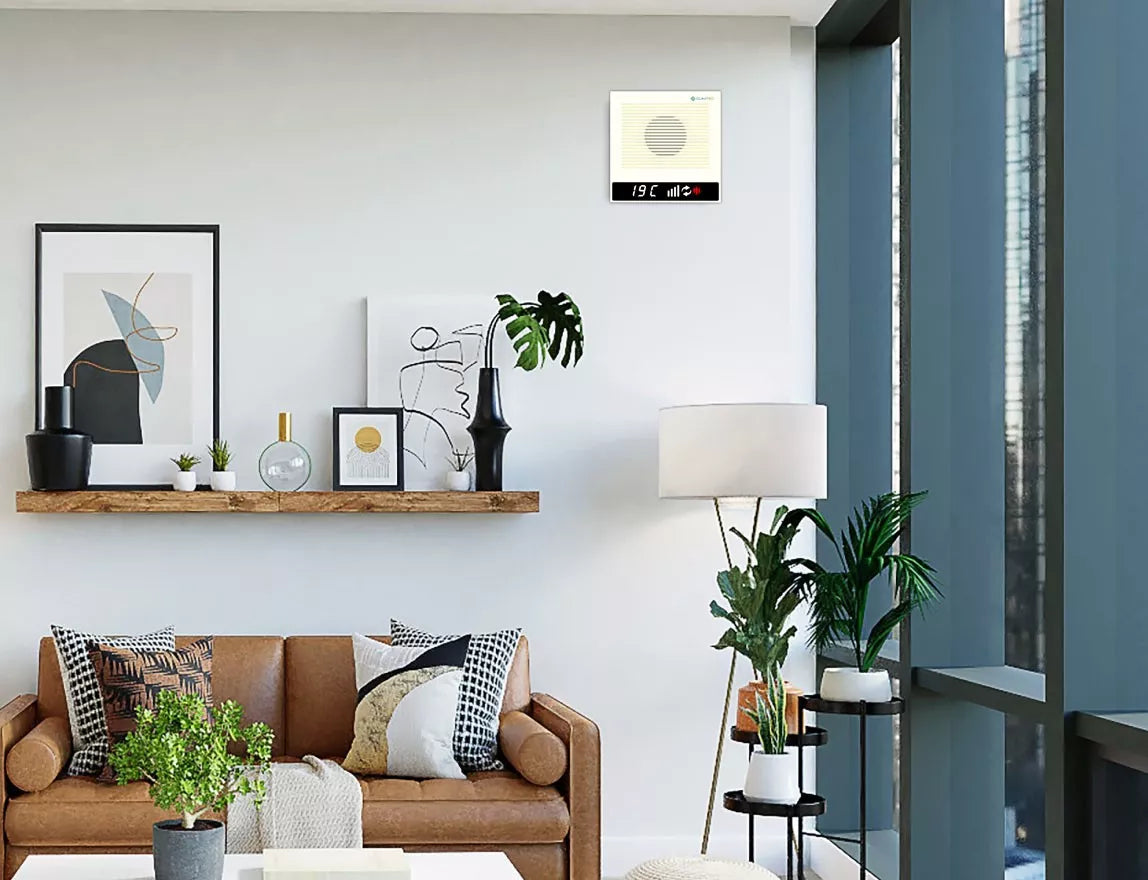

The new Climtec recuperator series combines eco-friendly materials with modern technologies. The stylish design of the recuperator allows it to blend seamlessly with any interior.
Full-featured supply and extract ventilation, with two fans included.
Technical Specifications:

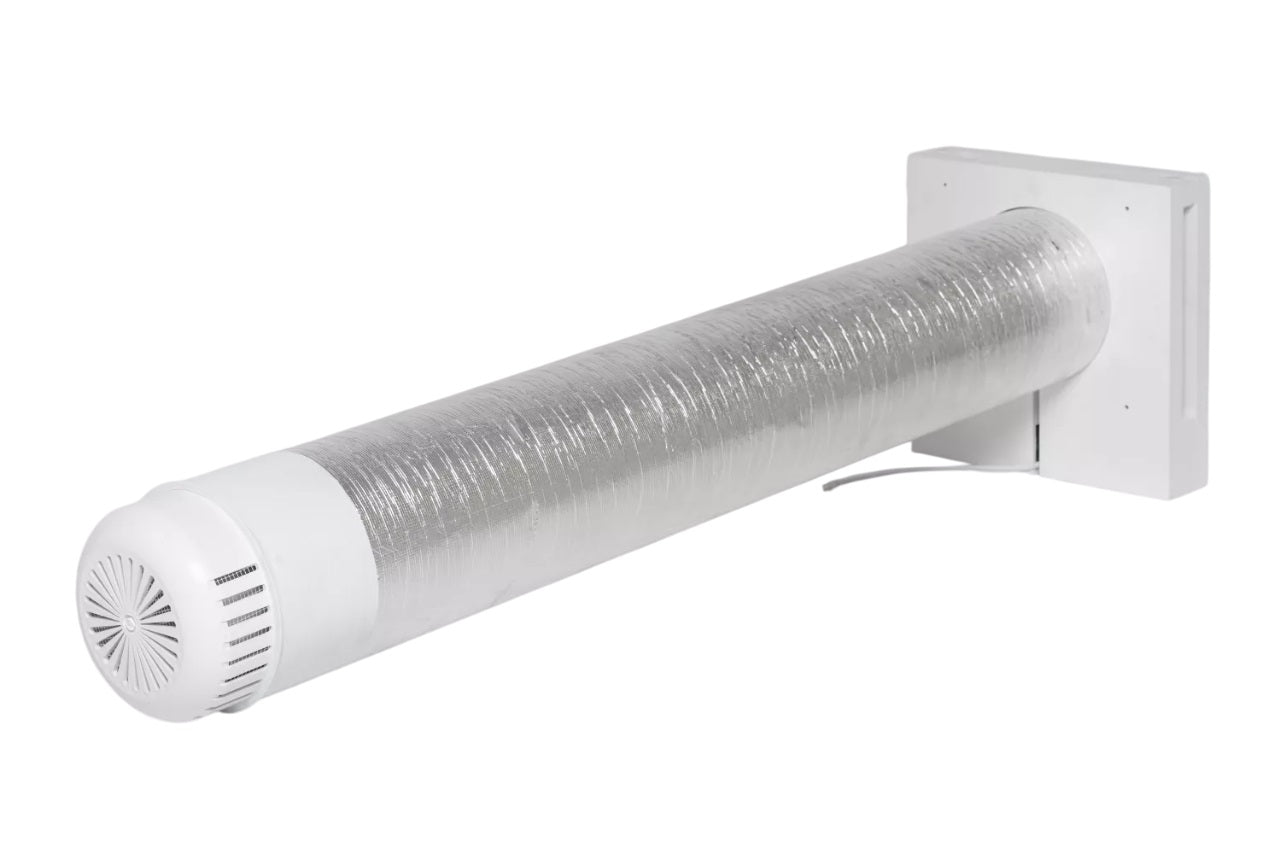

- Diameter of the working module body without insulation, mm: 100
- Mounting hole diameter, mm: 112
- Length, mm: 320-650
- Front panel size, mm: 210 x 210
- Weight, kg: 2.5
- Efficiency, %: Up to 93
- Supply/exhaust air volume at maximum power, m³/h: 40/40
- Supply/exhaust air volume at minimum power, m³/h: 10/10
- Recommended room area up to, m²: 15
- Recommended number of people in the room up to: 2
- Voltage, V: 220/230
- Power consumption in recovery mode without reheating heater, W: 6
- Thermal power of the heating element, W: 40
- Noise level, dB, min/max: 22/32
Features:
- Aluminum diametrical plate heat exchanger: Yes
- Flow control valve: Auto
- Air purification filter (G3): Yes
- Information LED panel: Yes
- CO₂ sensor: Yes
- Supply air temperature sensor: Yes
- Outdoor temperature sensor: Yes
- Humidity sensor: Yes
- Drainage channel heating: No
- Front panel made of MDF and acrylic: Yes
Control (Remote control):
- Number of speeds: 4
- Operating modes: Recovery, Supply, Exhaust
- Timer: Yes
- Clock: Yes
- LED backlight: Yes
Click for more information - Catalogue
You can install the CLIMTEC energy recovery unit yourself or use our installation service.
