INLINE TUBE FAN RUCK Etamaster EM 125 E2 01
Ruck ventilators GmbH is a best-known brand in the ventilation industry, known for producing top-quality products that regulate climate and ventilation.
RUCK EM 125 E2 01 - Up to 142 m³/h
- Innovative, high-efficiency diagonal fan
- Optimally tuned, CFD-optimized aerodynamics
- Housing made of impact-resistant, reinforced polypropylene
- Robust single phase AC motor
- Conveyed medium temperature up to 60 °C in continuous operation
- Integrated thermal switch
- The benchmark for efficiency since 2012
- Made in Germany

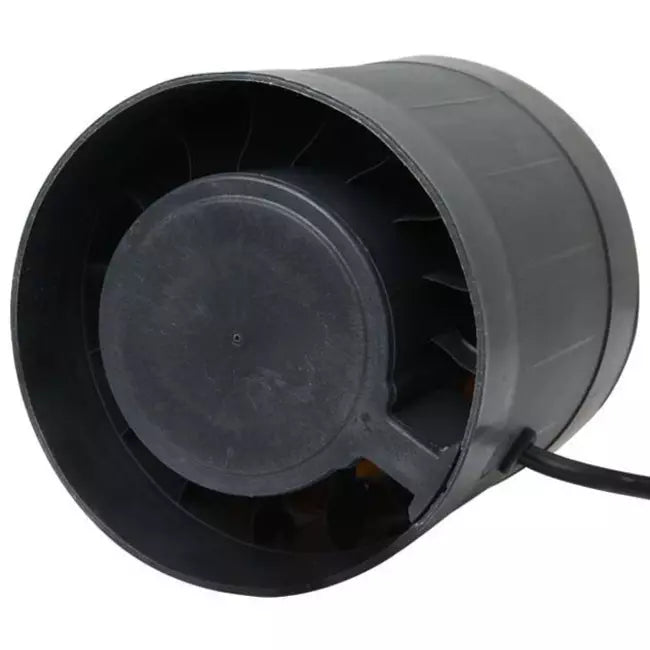

RUCK EM 125 E2 01 – 125 mm Inline Tube Fan
The Ruck ETAMASTER inline tube fan (EM series) can be operated with an on/off switch.
The Etamaster has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate.
The EM series is available with capacities ranging from 124 m³/h to a maximum of 315 m³/h and with diameters ranging from 100 mm to a maximum of 160 mm respectively.
TECHNICAL DATA
|
Connection diameter |
125 mm |
|
Number of phases |
1~ |
|
Number of poles |
2 |
|
Control |
On/Off |
|
Category code |
35 |
|
Weight |
0.7 kg |
|
IP Motor |
IP00 |
|
Insulation Class Motor |
F |
|
Max. Operating Current |
0.22 A |
|
Max. pressure |
84 Pa |
|
Max. Air Volume |
142 m³/h |
|
Max. Current Consumption |
0.22 A |
|
Max. power consumption |
14 W |
|
Max. Static Efficiency |
7.2 % |
|
Max. allowed Medium Temperature |
60 °C |
|
Max. allowed Medium Temperature at Rated Current |
60 °C |
|
Max. allowed Ambient Temperature |
60 °C |
|
Max. allowed Ambient Temperature at Rated Current |
60 °C |
|
Max. number of revolutions |
2590 1/min |
|
Max. Total Efficiency |
7.8 % |
|
With timer |
No |
|
Min. allowed Voltage |
207 V |
|
Min. Operating Temperature |
-25 °C |
|
Motor Protection |
TAI |
|
Motor type |
Gap pole |
|
Nominal frequency |
50 Hz |
|
Rated Speed |
2450 1/min |
|
Nominal power consumption |
14 W |
|
Nominal voltage |
230 V |
|
Nominal current |
0.21 A |
Click for more detail
PRODUCT DATA.PDF
