Heat recovery ventilation system
MVHR

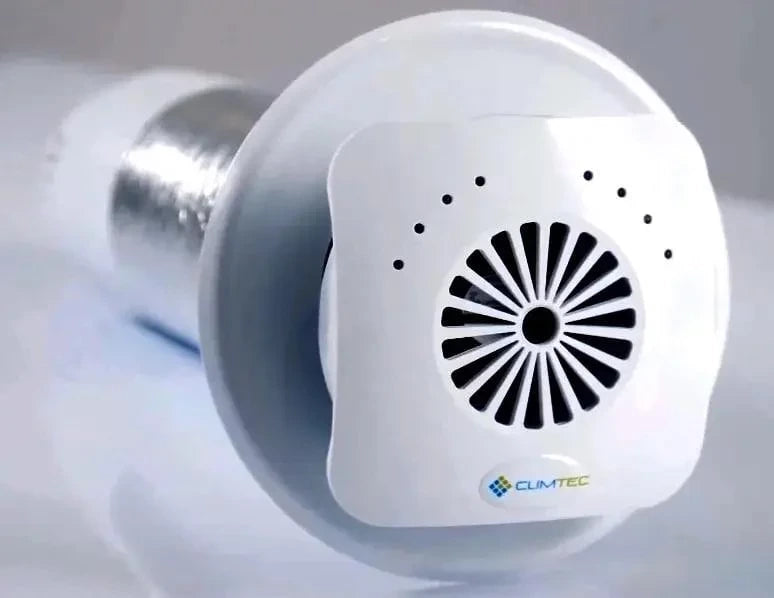

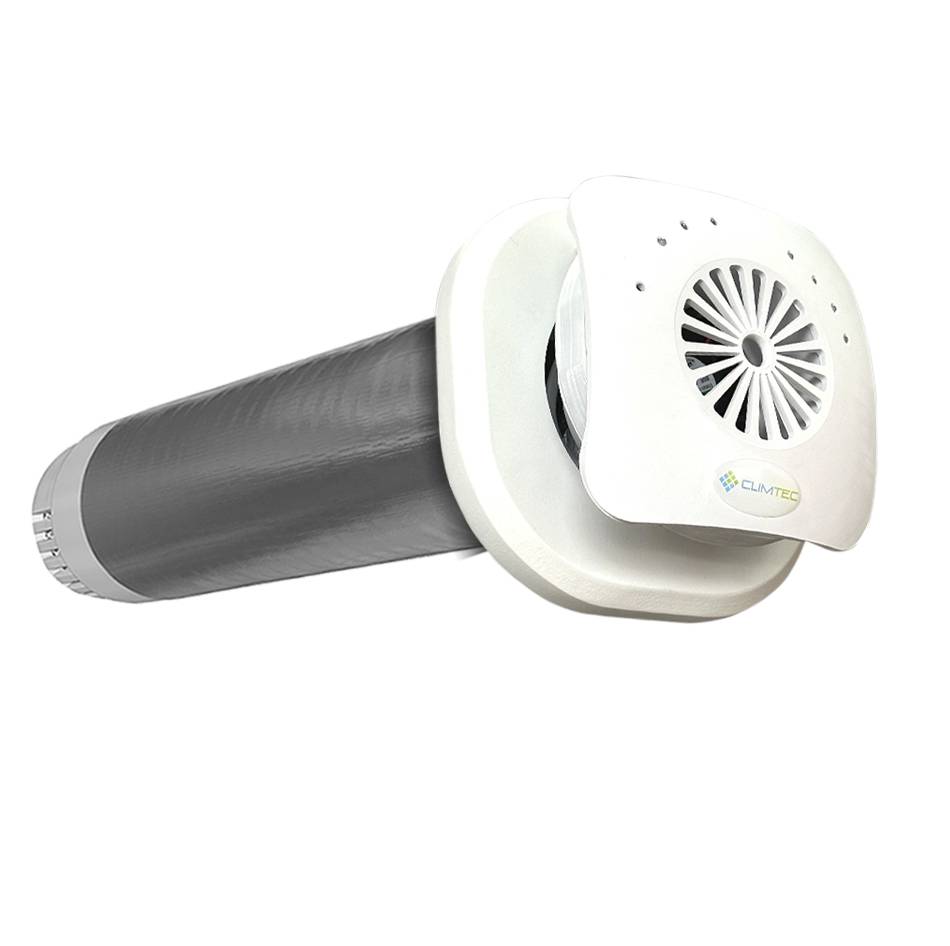

Recuperator CLIMTEC RD-100 standard Heat Recovery Ventilation Unit
The RD 100 Standard is designed for installation in small rooms — with an area of up to 15 m². The key advantage of the Standard version is remote control and automatic shut-off of the air flow valve.

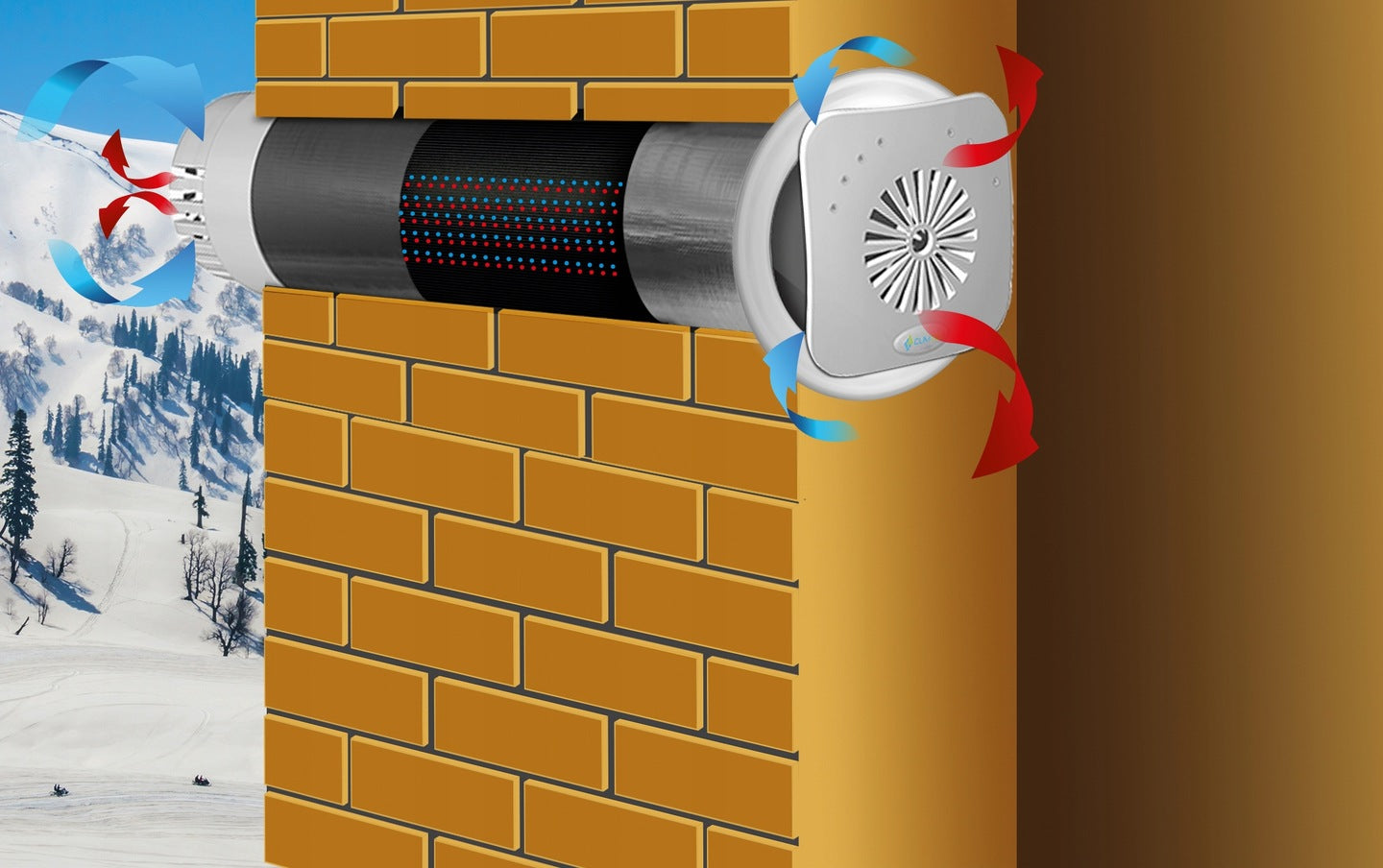

The Climtec 100 Standard unit removes stale indoor air through an aluminium heat exchanger while simultaneously supplying fresh outdoor air into the room. The air streams do not mix — instead, they move through separate channels within the heat exchanger. One of the main benefits of an aluminium heat exchanger is its resistance to oxidation.
Ideal for bedrooms, kitchens, and small living spaces, this unit is easy to install and blends seamlessly into modern interiors.
Full-featured supply and extract ventilation, with two fans included.
Technical Specifications:
• Working module body diameter: 100 mm
• Mounting hole diameter: 112 mm
• Unit length: 360-650 mm (Adjustable and can be cut to the required length during fitting)
• Weight: 2 kg
• Heat recovery efficiency: up to 93%
• Maximum supply/extract air volume: 40/40 m³/h
• Recommended room area: up to 15 m²
• Recommended occupancy: up to 2 people
• Fan power consumption: 6 W
• Sound power level (min/max): 22/32 dB
• Aluminium counterflow plate heat exchanger: ✓
• Airflow shut-off valve: Automatic
• G3 air purification filter: ✓

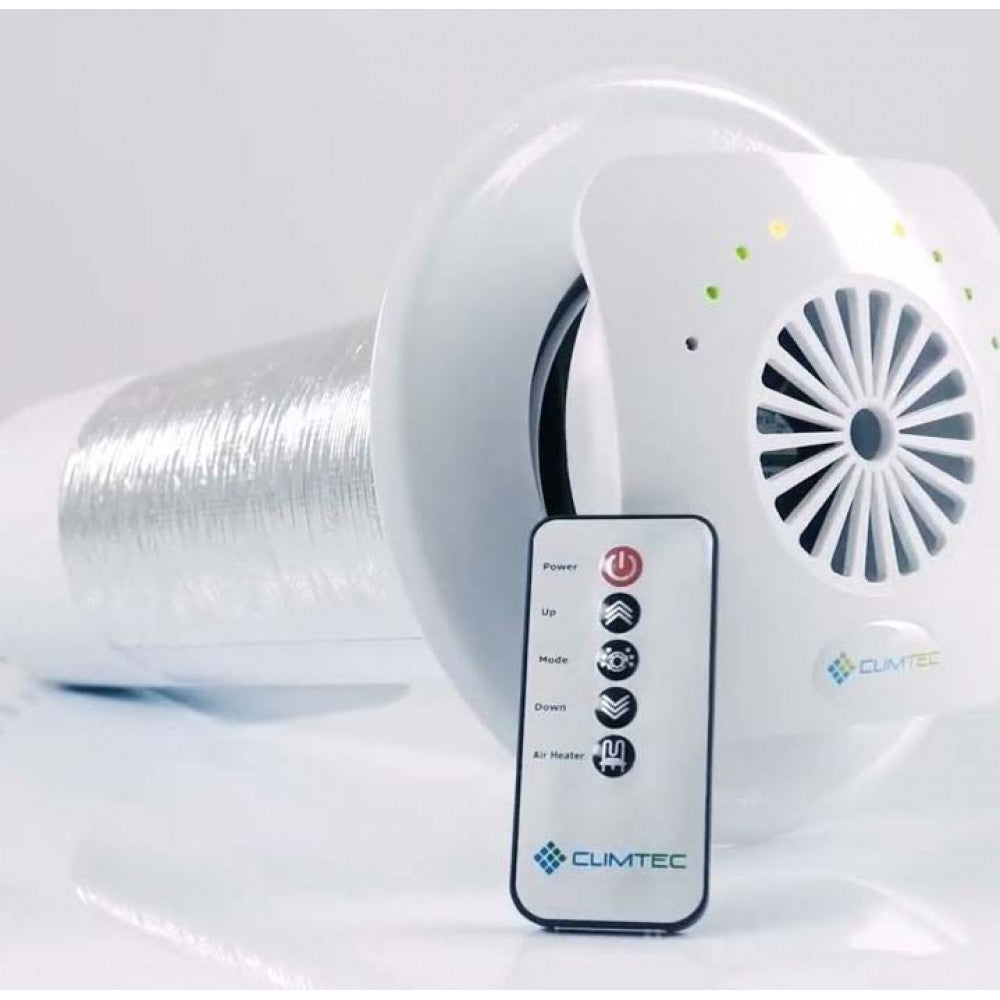

• Control system: Remote control
• Heat exchanger surface area: 1.5 m²
Click for more information - Catalogue
Wall-Mounted Heat Recovery Ventilation Unit with Aluminium Heat Exchanger CLIMTEC RD-100 standard.
Ensure a healthier indoor environment with this compact, wall-mounted heat recovery unit. Designed to provide continuous fresh air while efficiently removing stale indoor air, it helps prevent damp, mould, and mildew — keeping your home dry and comfortable all year round.
The high-performance aluminium heat exchanger guarantees excellent thermal efficiency and long-term durability, thanks to its corrosion resistance. With balanced supply and extract airflow, it delivers effective ventilation without energy loss.
