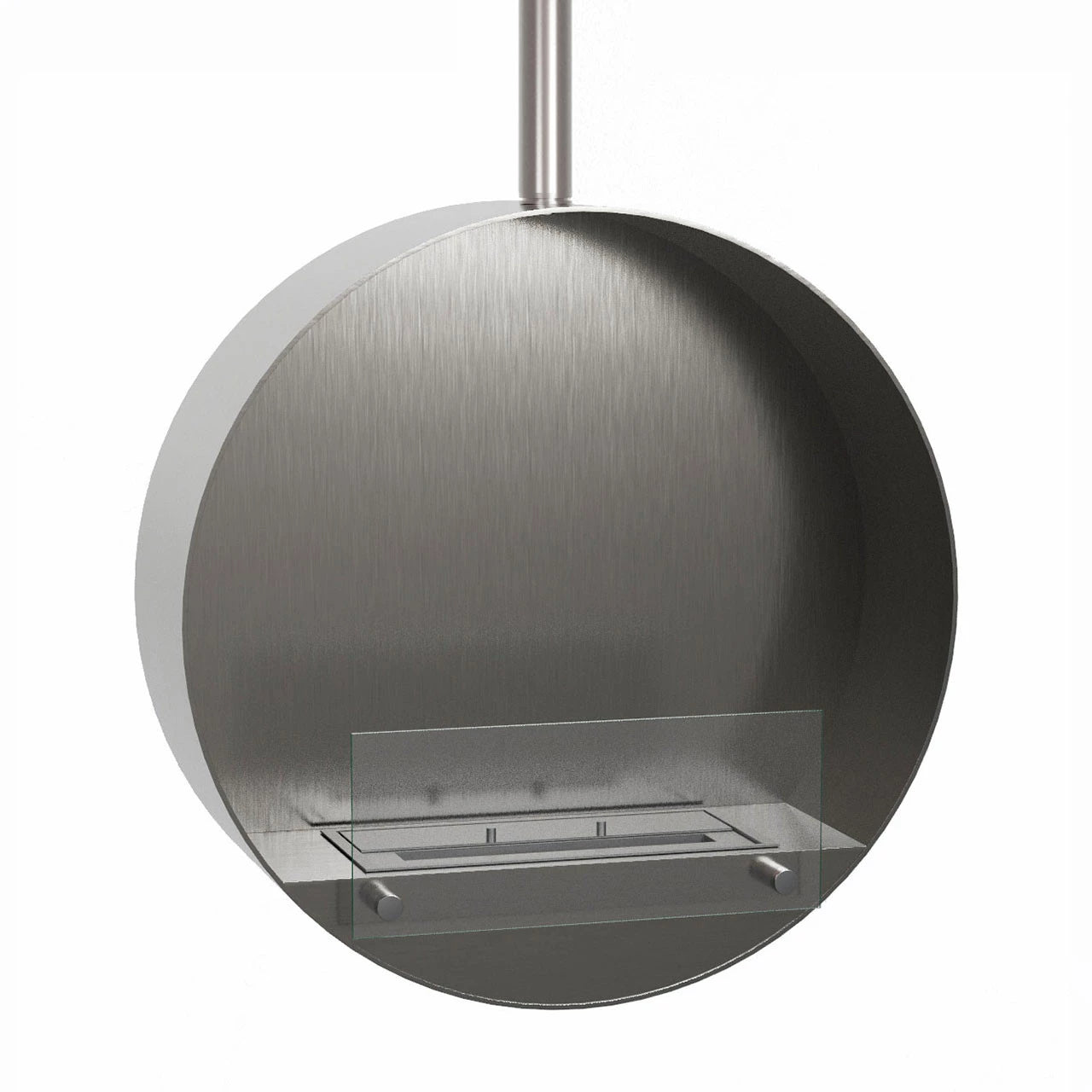

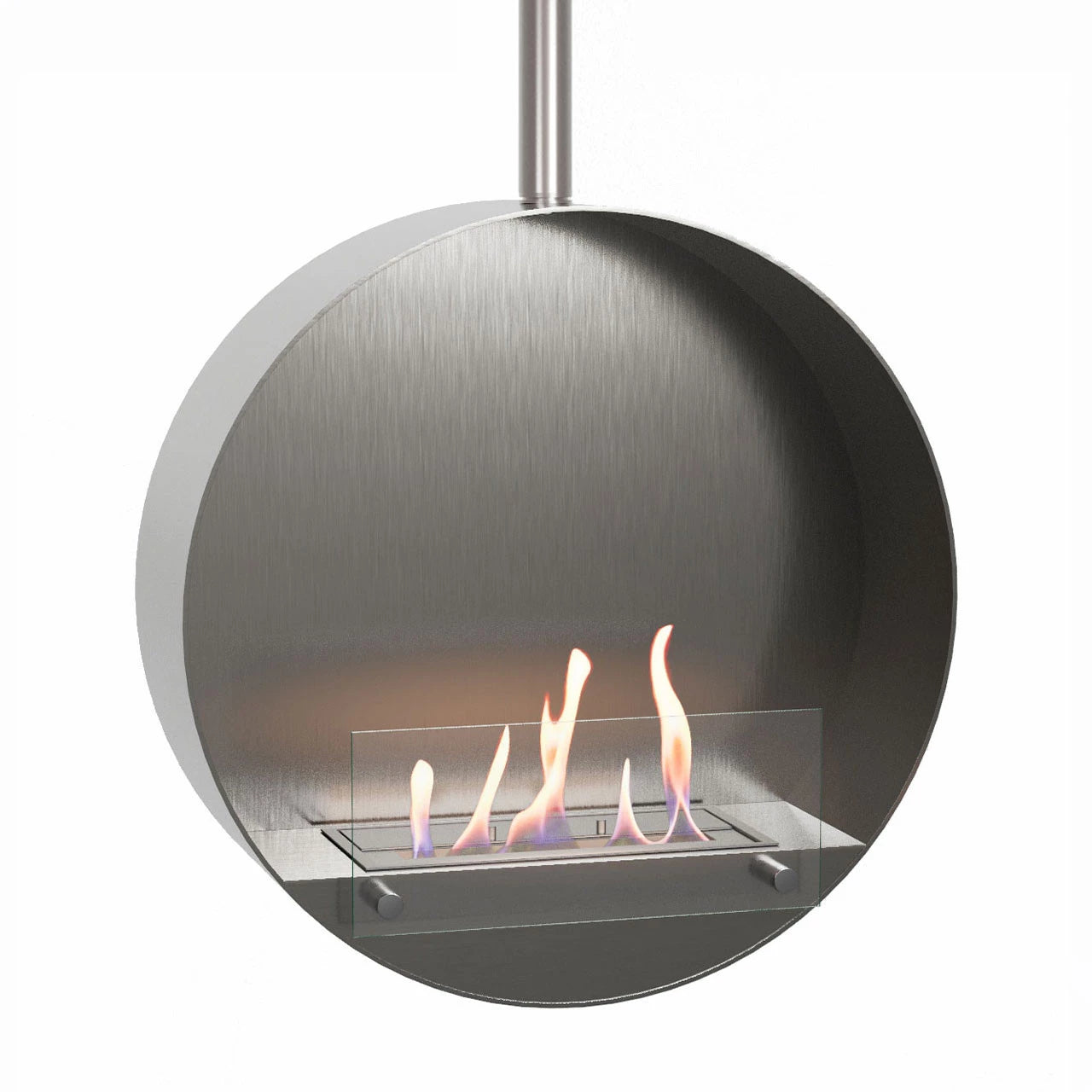

Ottawa Steel - 60 cm Hanging Bioethanol Fireplace

Ottawa Steel Suspended Bioethanol Fireplace - 60 cm diameter

The Ottawa BIO-40-104 is a round suspended bioethanol fireplace with a 1.5 litre bio ethanol burner, with a burn time of 6 hours per filling.

The Ottawa bio fireplace is made of 4 mm thick brushed steel, which gives a nice raw and almost rustic look to the fireplace.

Installation and assembly

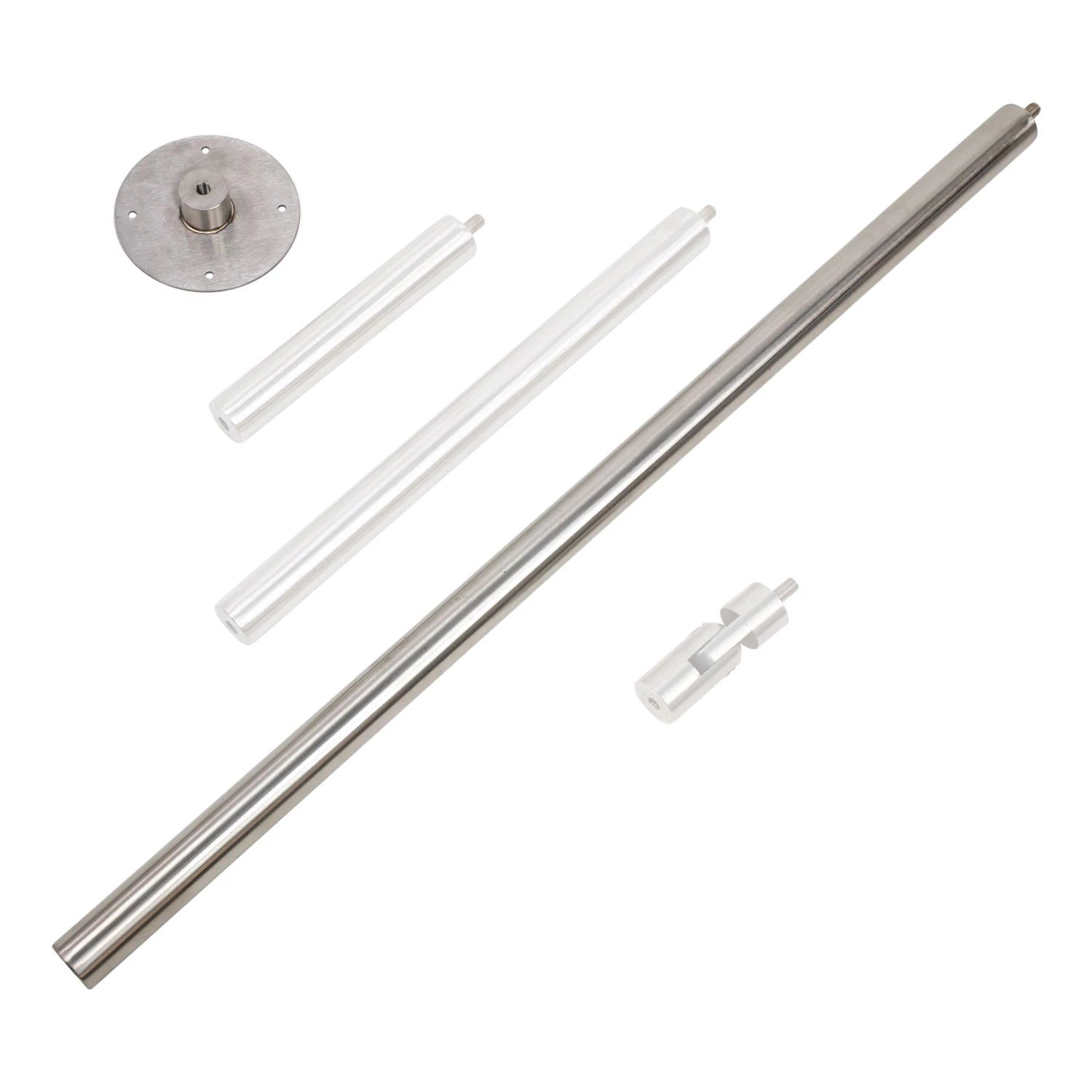

The bio fireplace is attached to the ceiling using a bracket and ceiling rod provided.

If the fireplace is to be mounted on a sloping ceiling, a sloping bracket must be purchased, which is attached between the ceiling bracket and the ceiling rod.

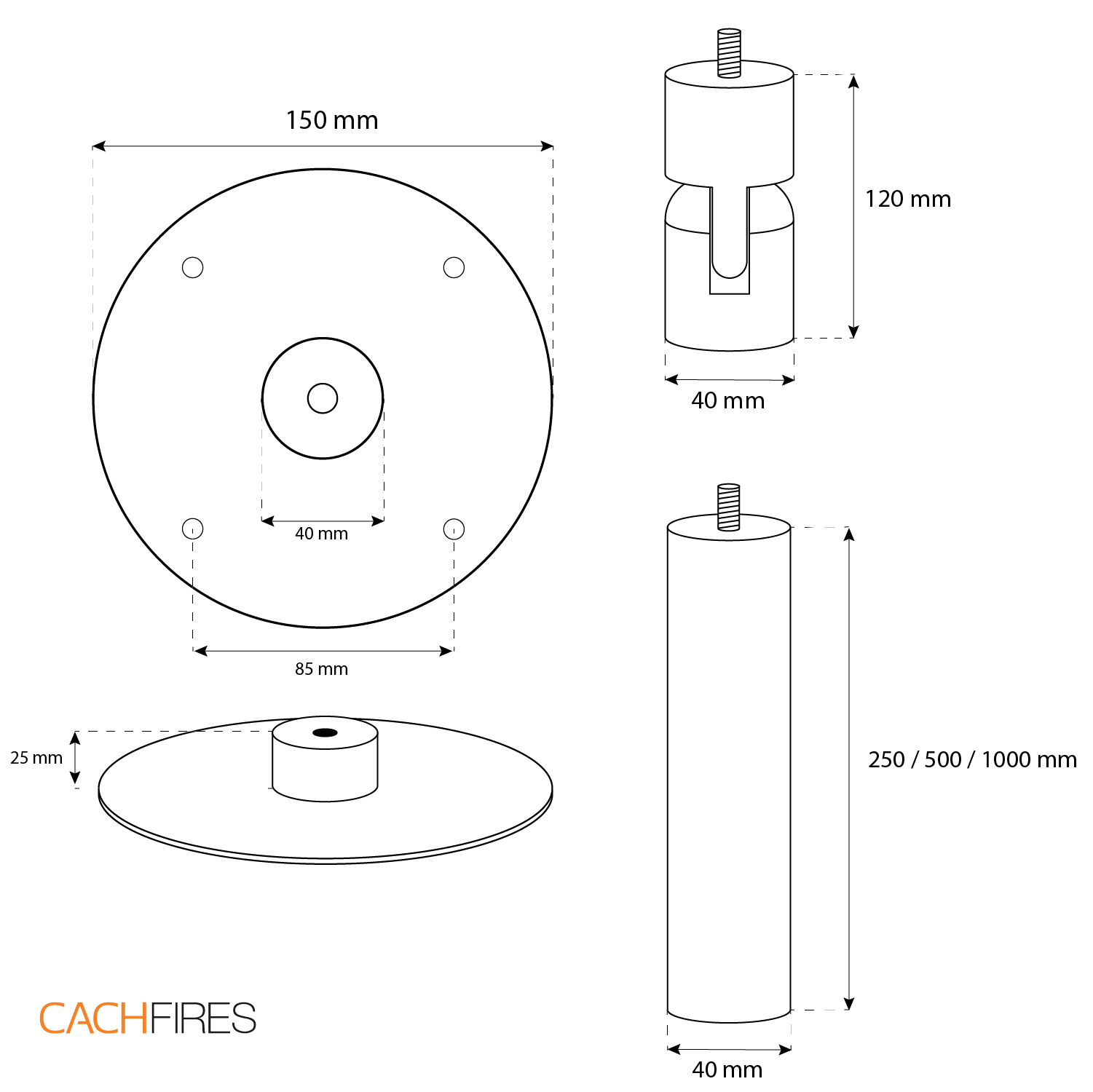

One 1 metre ceiling rod is supplied as standard for the fireplace. If you are in need of a longer ceiling rod, you can purchase extension rods in following lengths of 25, 50 and 100 cm. The ceiling poles can then be screwed together to obtain the desired length.

We recommend that the fireplace is installed between 80 and 120 cm from the floor.

However, the total length of the ceiling rod should not exceed 5 metres.

Highlighted features

• 1.5 litre bioethanol burner
• Up to 6 hours burn time per fill
• Adjustable flame
• Suspended from the ceiling
• Choose the length of the ceiling rod

Included in the package

• Ottawa 60 cm steel fireplace + bioethanol burner
• Ceiling bracket
• Adjustment and extinguishing tool
• User manual

Burner

• Flue/chimney – Not required
• Remote control – No
• Flame length – 24 cm
• Minimum room size – 45 m³
• Requires electricity – No
• Burn time – 6 hours
• Adjustable flame – Yes
• Control – Manual
• Usage – 0.25 L/h
• Heat output (max) – 2.2 kW
• Capacity – 1.2 litres
• Fuel – Bioethanol

Appearance

• Materials – Steel
• Colour – Steel
• Shape – Round
• Glass included – Yes

Type

• Product type – Ceiling-mounted bioethanol fireplace
• Brand – ScandiFlames
• Use – Indoor
• Warranty – 2 years

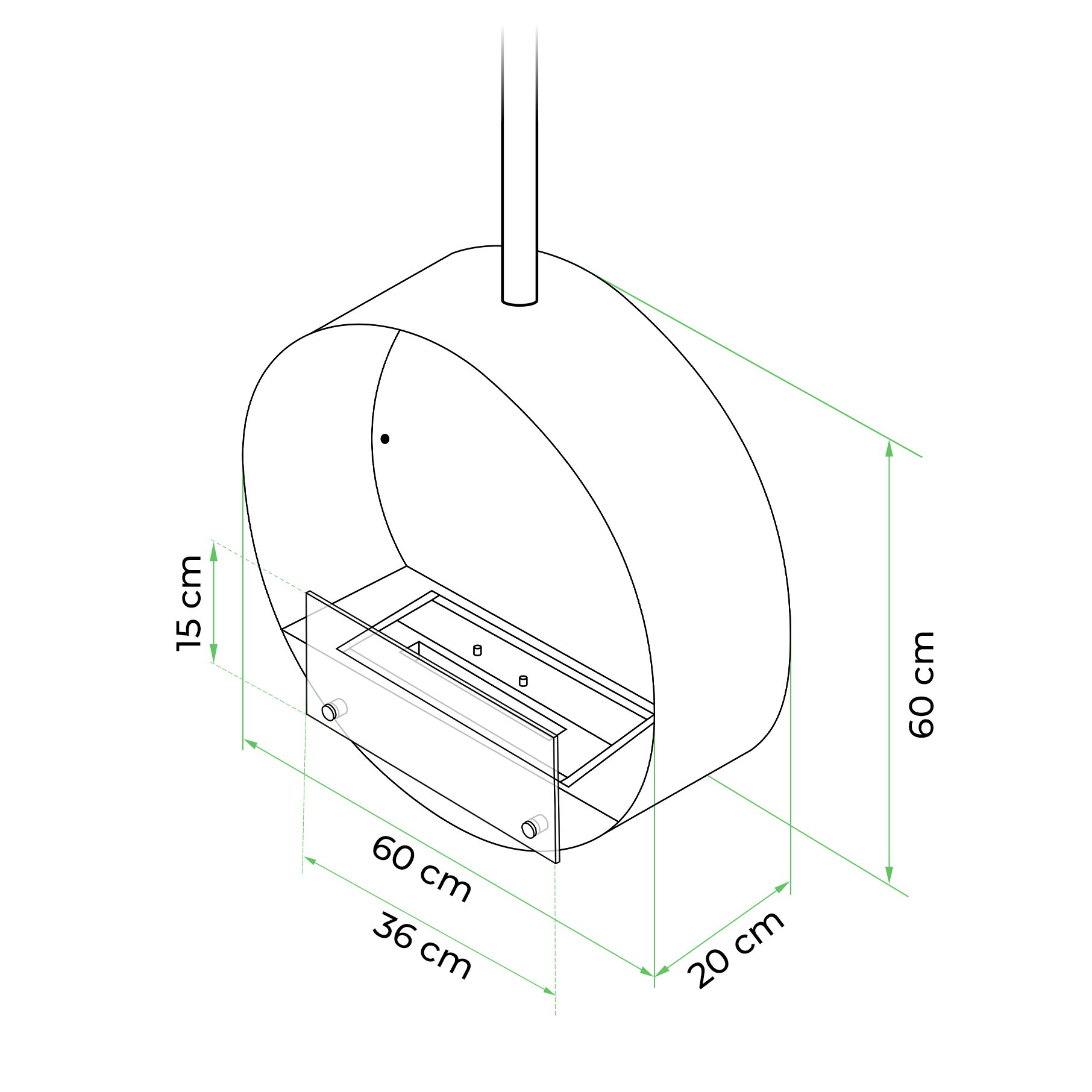

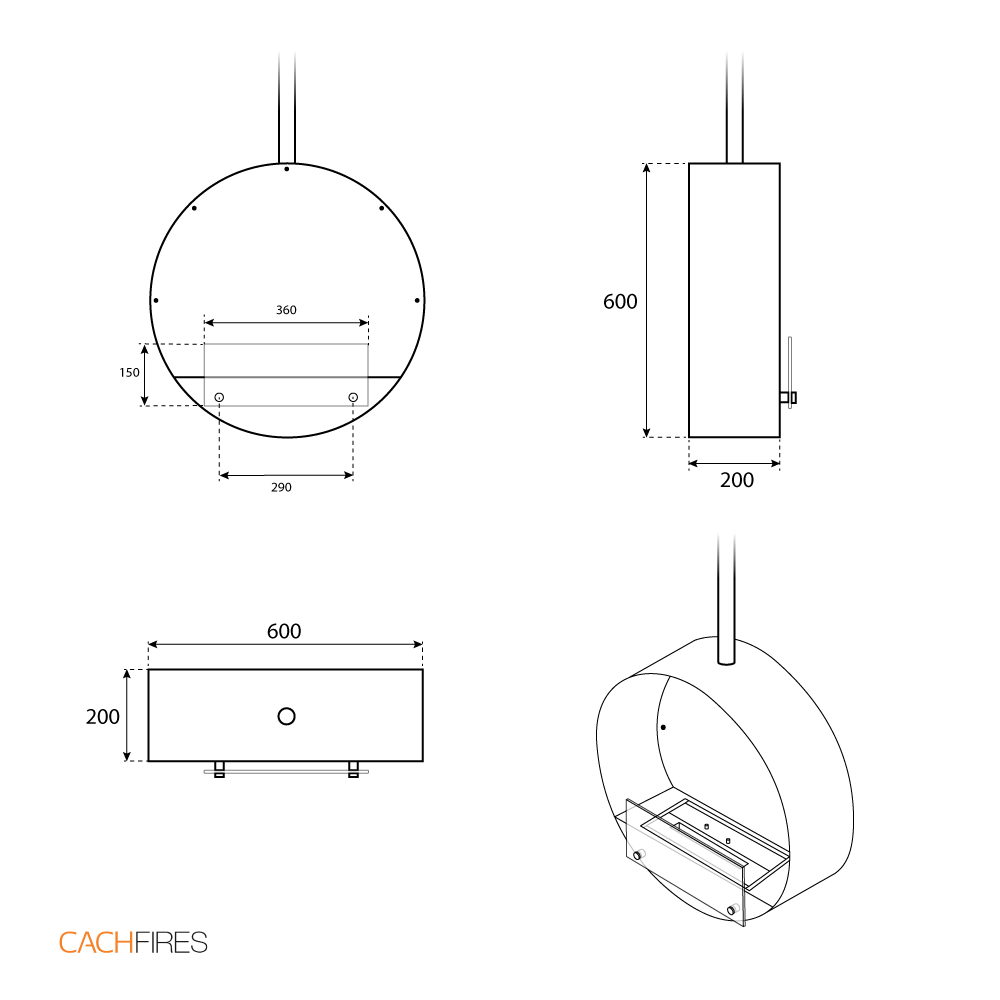

Size

• Length/Width – 60 cm
• Height – 160 cm
• Depth – 20 cm
• Diameter – 60 cm

Click for more details:

PDF USER GUIDE
