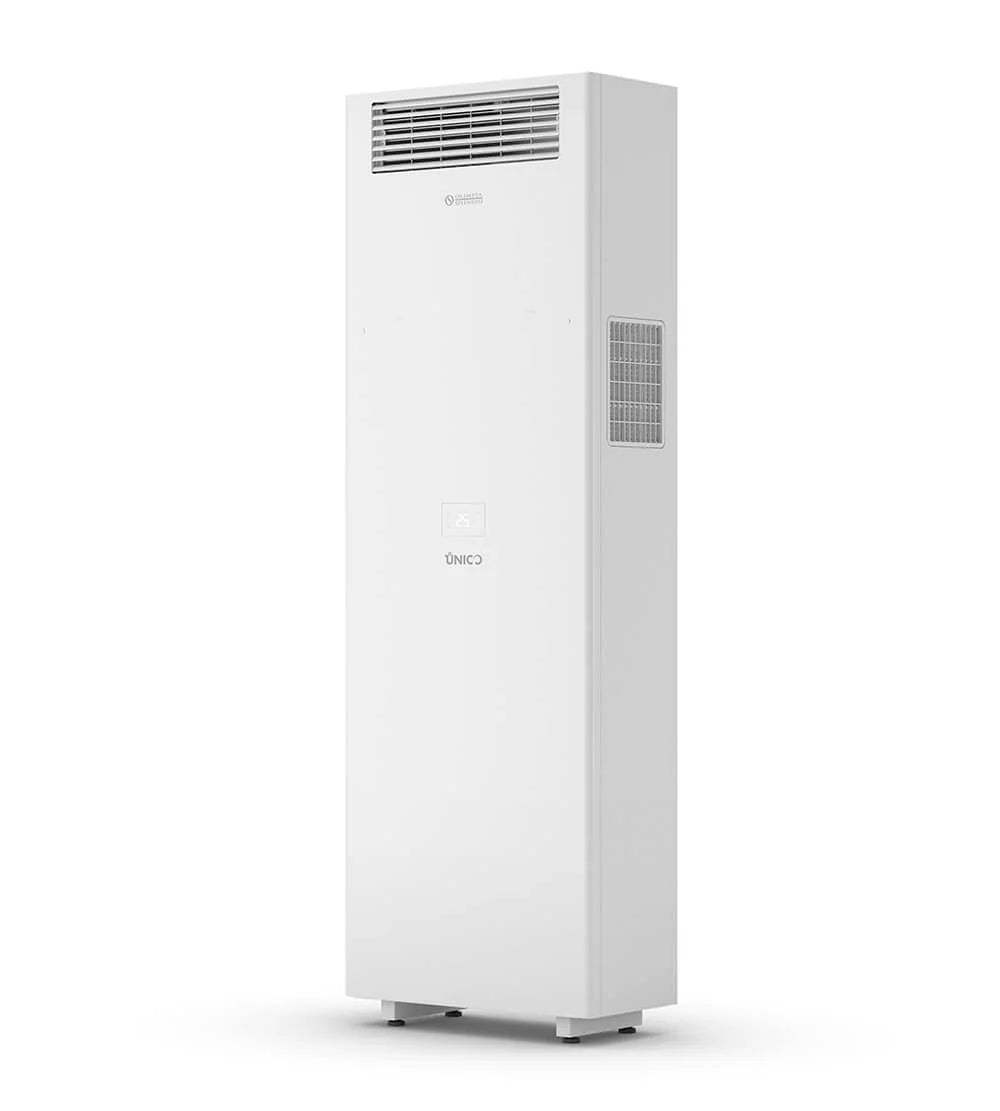

NEW 2025 Olimpia Splendid UNICO VERTICAL 35 HP EVAN R32 WIFI included 3.5 kW All-in-One Air Conditioning Unit with Heat Pump

NEW 2025 Olimpia Splendid Unico Vertical 3.5 kW 12000 BTU All-in-One Air Conditioning Unit with Heat Pump INVERTER

Description & Selling Points

NEW Unico Vertical EVAN Heat pump air conditioner without external unit.

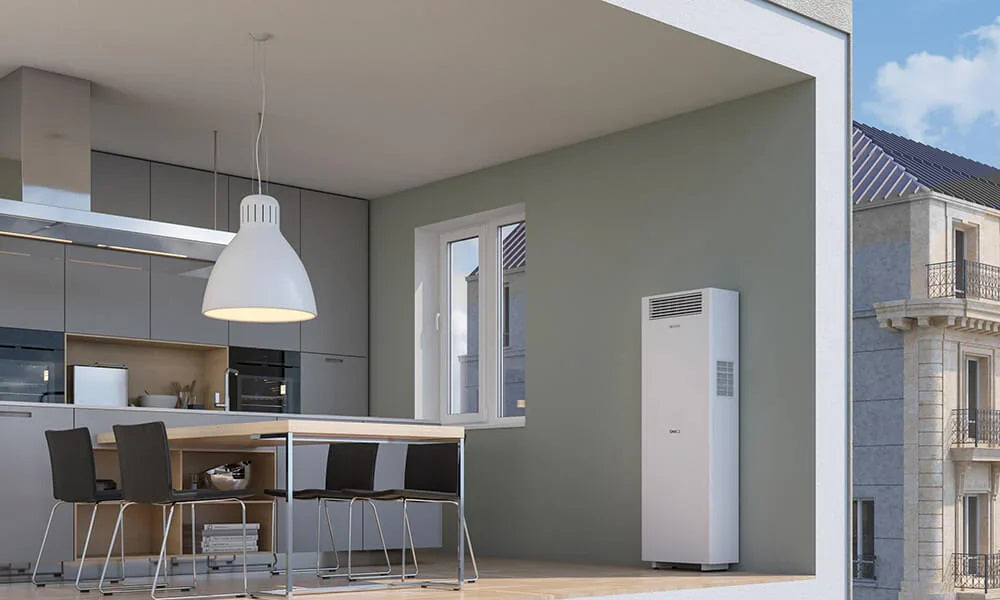

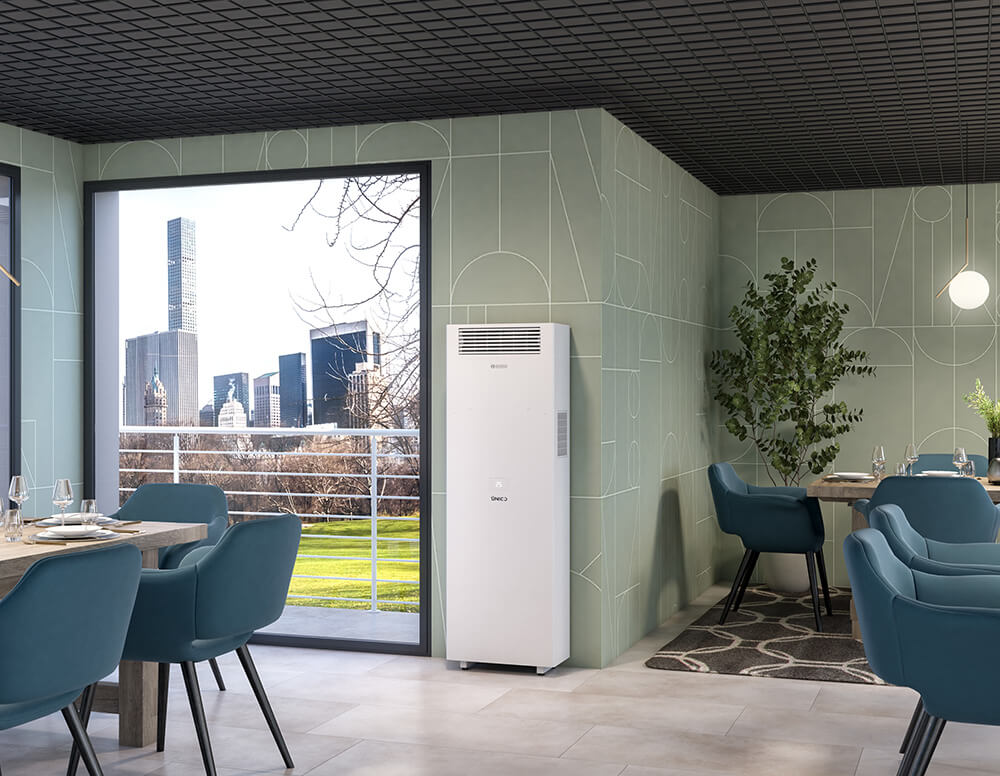

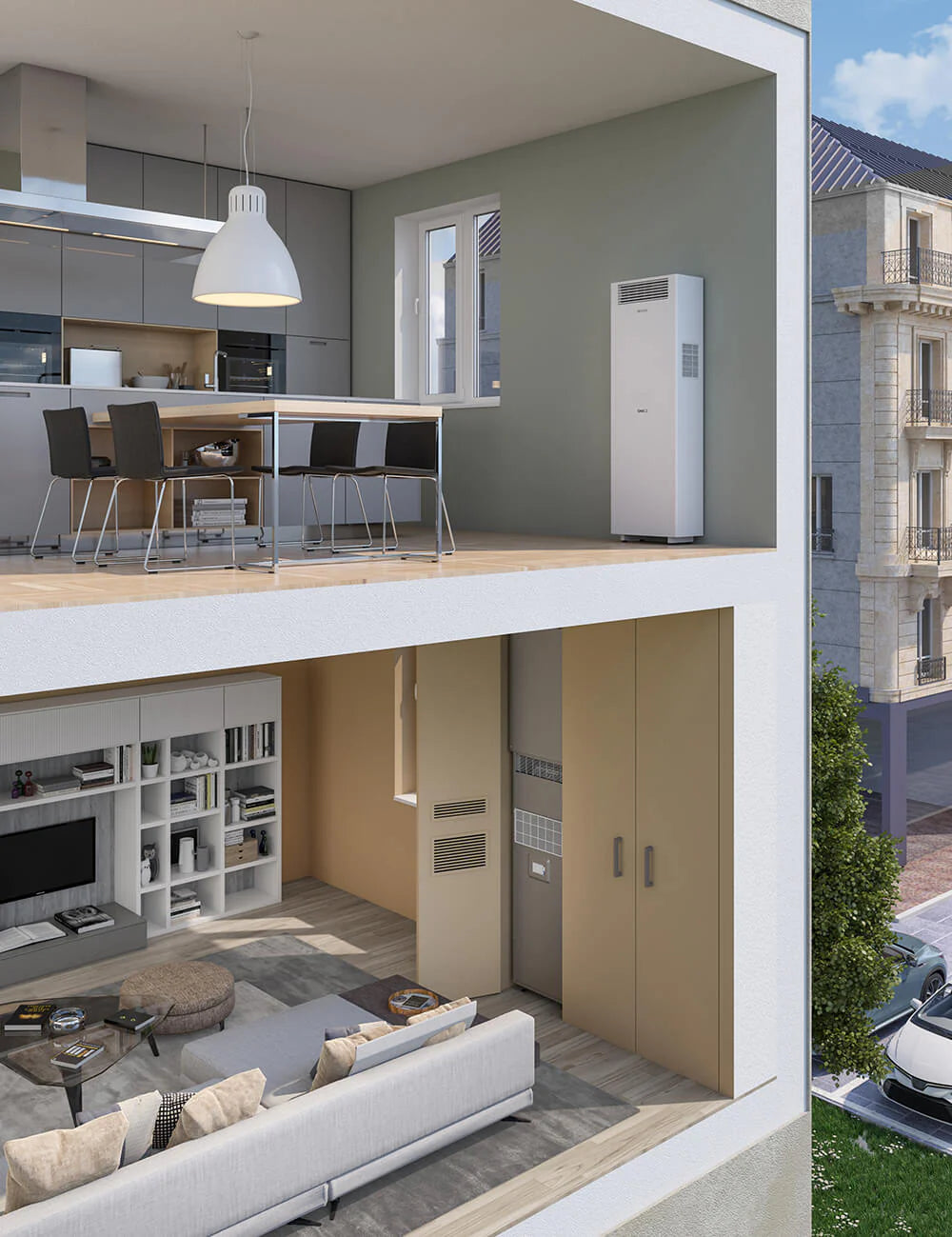

The Unico Vertical is a space-saving heat pump air conditioner developed vertically, allowing for installation in locations where other systems would be impossible, such as the corner of a room or the space between two windows.

PRO POWER It delivers a super cooling power of up to 3.5 kW to meet the needs of even the largest environments.

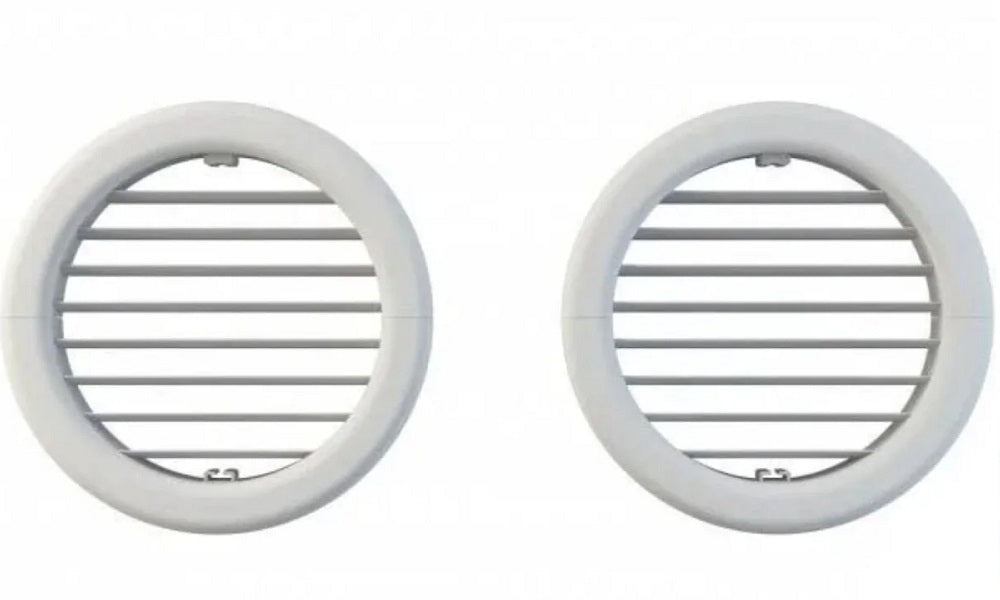

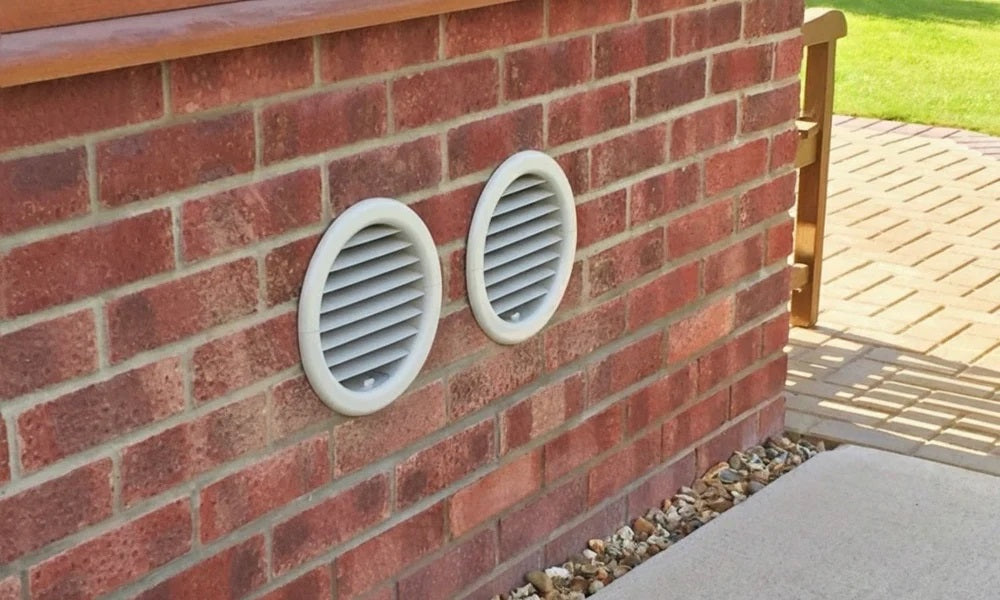

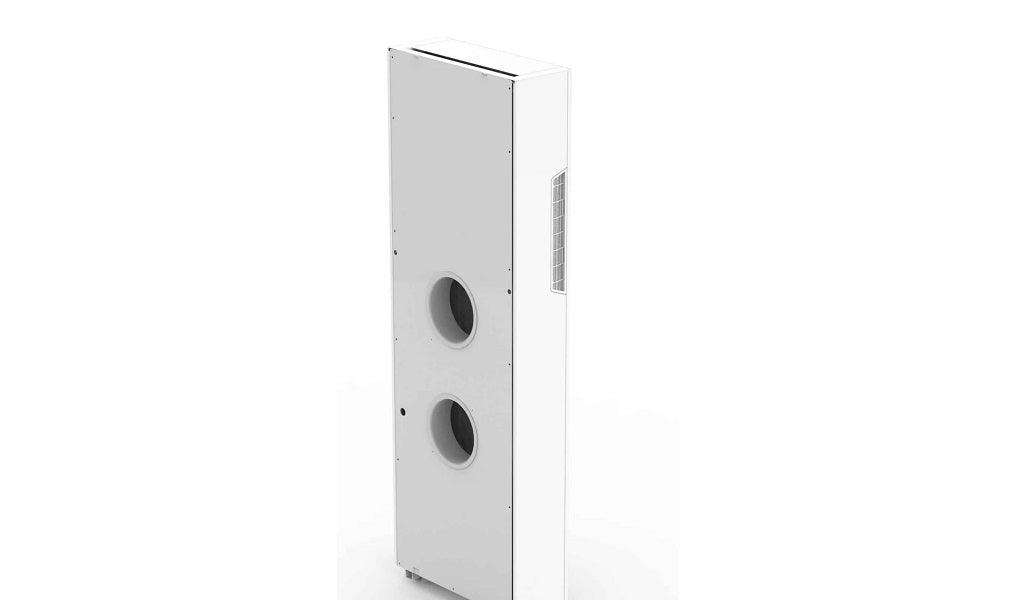

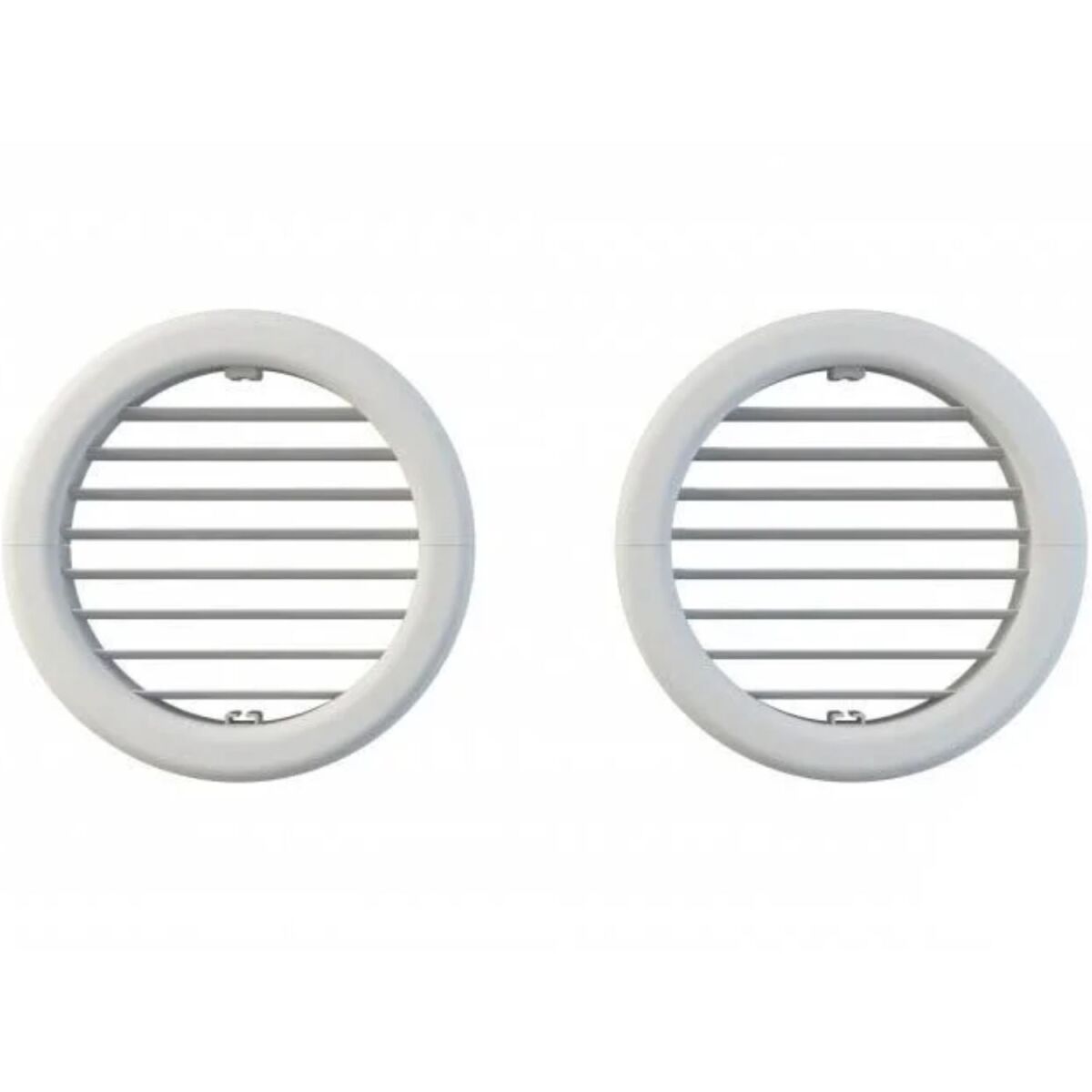

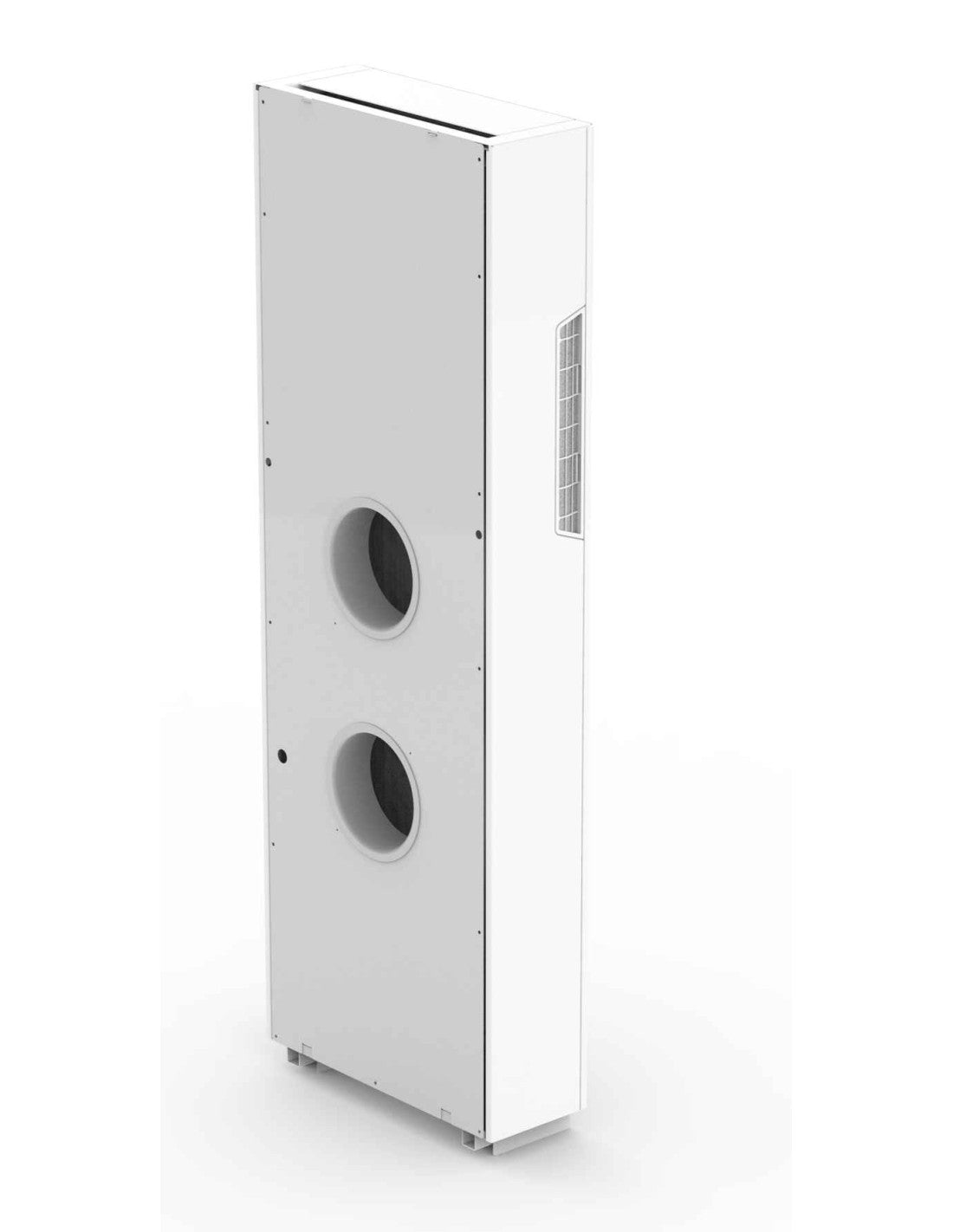

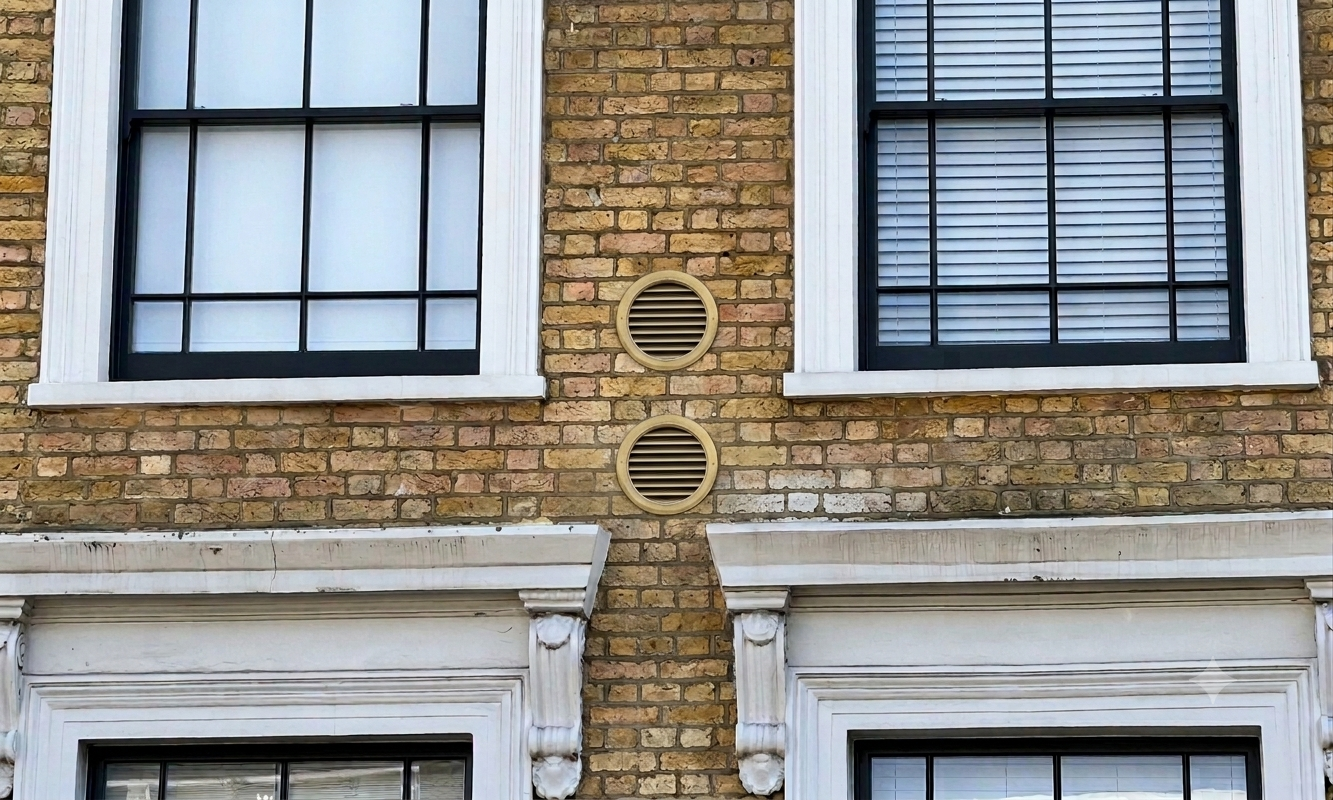

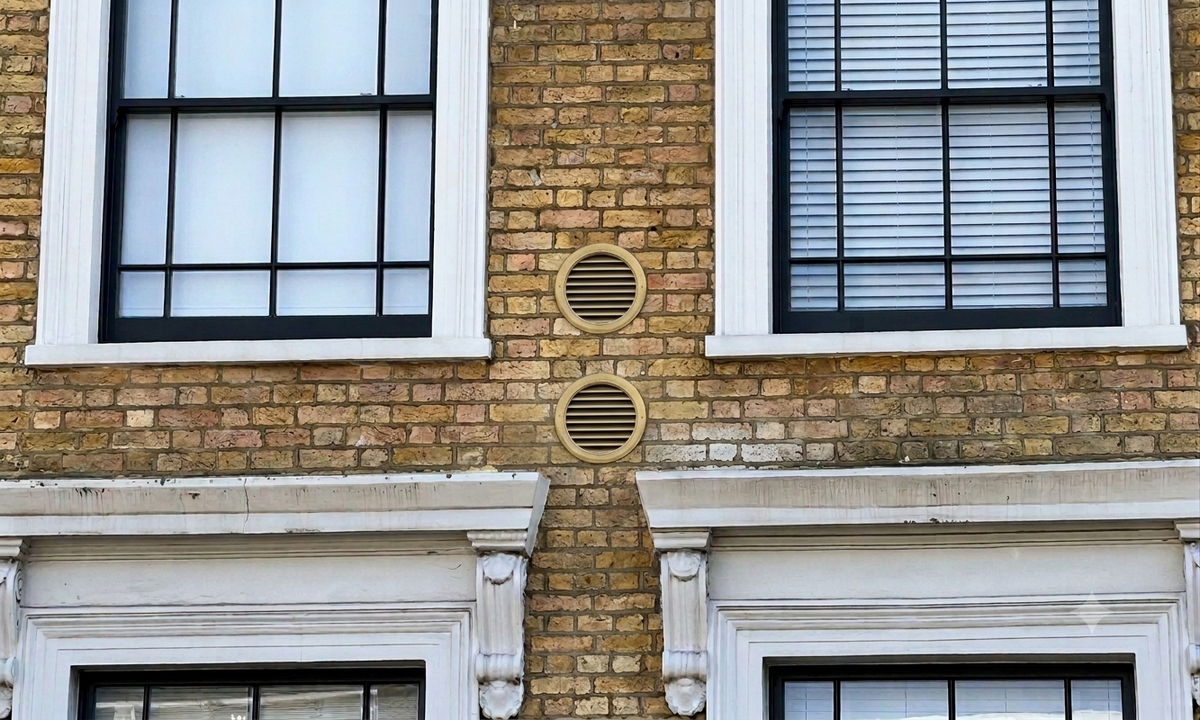

The unit must be installed on an external wall and requires two 20 cm diameter holes for the heat pump unit.

Key Features & Functions

• Inverter.
• The recommended area of the premises: up to 40 m².
• Max power: 3.5 kW.
• Version: HP (heat pump).
• Cooling class: A.
• Refrigerant gas: R32 (GWP=675).
• Functions: Cooling, heating, dehumidification, and ventilation.
• On-board controls: Touchscreen display (for aesthetic version only).

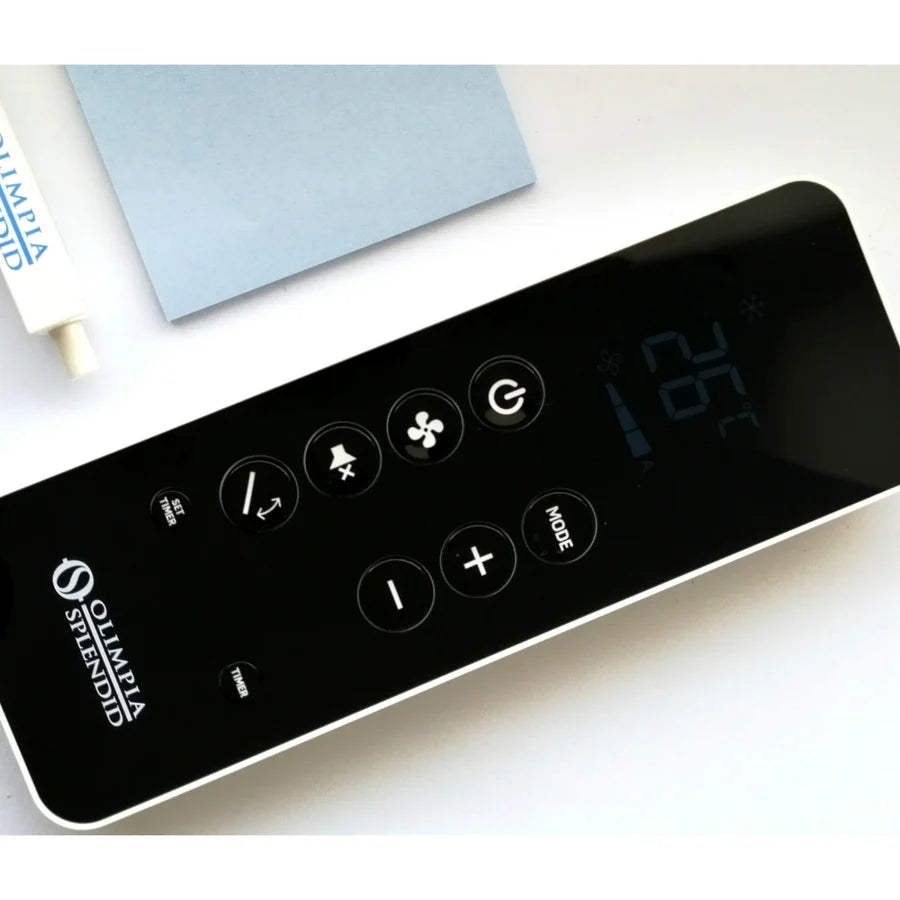

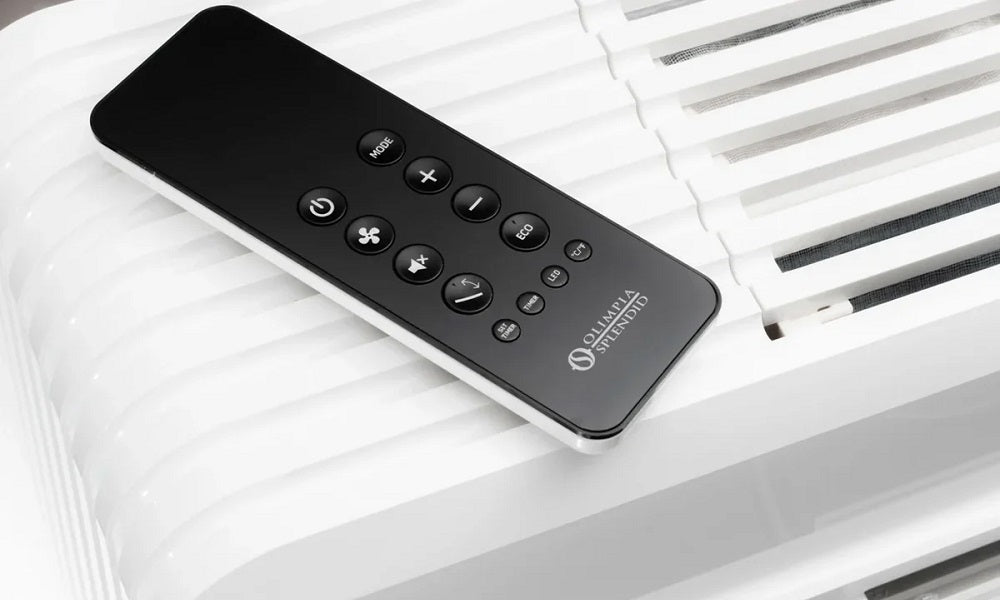

• Remote control: Multifunctional remote control with LCD display (for aesthetic version only).
• Connectivity: An RS485 port is available to control the unit with external BMS in Modbus RTU language.
• Condensate drain: Mandatory. See the installation manual for details.
• Silent Mode: Sets the machine to the lowest noise level. The compressor and fans are set to reduce the sound pressure down to 36 dB(A).
• Economy function: Allows energy savings by automatically optimising machine performance.
• Auto function: Modulates operating parameters in relation to the room temperature.
• Timer: 24 H timer.
• Made in Italy.
• 3 years warranty.

CLICK FOR MORE DETAIL – CATALOGUE

Technical Specifications Unico Vertical 35 HP EVAN

General

• Invertor
• Made in Italy
• 3 years warranty
• Weight without packaging kg. 84.
• Dimensions (WxHxD) without packaging mm. 523x1590x255.
• Diameter wall holes mm. 202.

Performance

• Cooling power (min/max) KW. 1.8/3.5.

• Heating power (min/max) KW. 1.7/3.2.

• Nominal cooling capacity Prated (1) KW. 3.1.

• Nominal heating capacity Prated (1) W. 2.4.

Power Consumption & Efficiency

• Nominal power consumption for cooling PEER (1) KW. 1.2.

• Nominal power consumption for heating PCOP (1) KW. 0.8.

• Nominal energy efficiency index EERD (1). 2.5.

• Nominal efficiency coefficient COPD (1). 3.1.

• Energy efficiency class in cooling (1). A.

• Energy efficiency class in heating. A.

• Energy consumption in "standby mode" PSB (EN 62301) W. 0.5.

Air Flow & Dehumidification

• Dehumidification capacity l/h. 1.1.

• Air flow rate in cooling environment (max/med/min) m³/h. 440/390/290.

• Air flow rate in heating environment (max/med/min) m³/h. 440/390/290.

• External air flow rate in cooling (max/min) m³/h. 640/190.

• External air flow rate in heating (max/min) m³/h. 640/190.

Sound Levels

• Internal sound pressure (min/max) (2) dB(A). 36-44.

• Silent Mode sound pressure level dB(A). 38.

Refrigerant

• Refrigerant gas type. R32.

• Refrigerant gas charge kg. 0.4.

• Global warming potential (GWP). 675.
