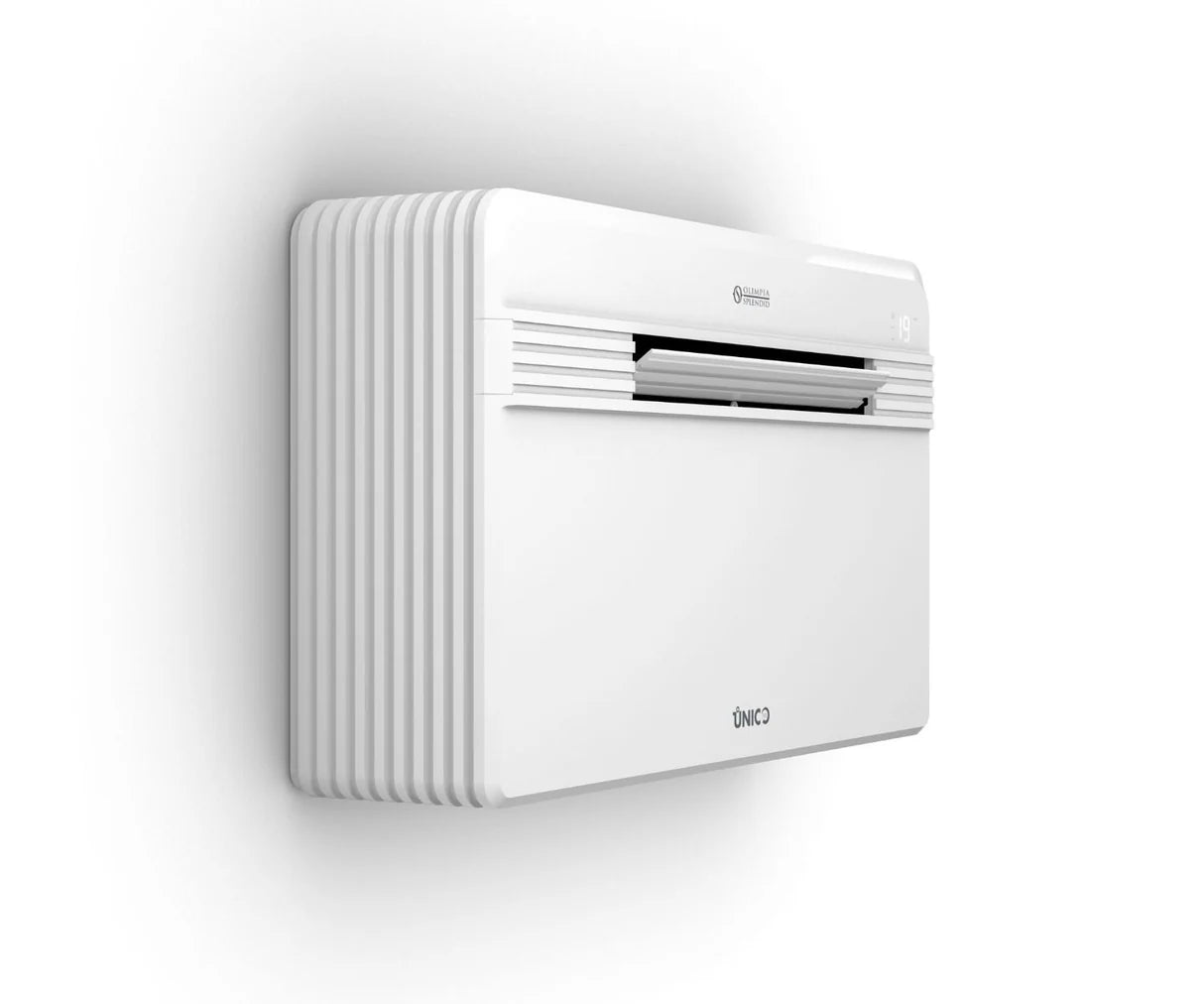

NEW 2025 Olimpia Splendid Unico PRO EVAN 35 HP Inverter 12000 BTU 3.5 kW All-in-One Air Conditioning Unit with WiFi

Olimpia Splendid UNICO PRO – Advanced Wall-Mounted Air Conditioner & Heat Pump with Wi-Fi and BMS Connectivity

✅ 3.5 kW Cooling | ✅ 3.2 kW Heating | ✅ Heating, Dehumidification & Ventilation | ✅ No Outdoor Unit | ✅ Wi-Fi Control | ✅ Ultra-Quiet Operation | ✅ Designed in Italy

Experience professional-grade climate control with the UNICO PRO – the most powerful and sophisticated air conditioning unit in the UNICO range. Designed for larger spaces and modern environments, the UNICO PRO combines high cooling capacity, award-winning aesthetics, and smart connectivity in one compact wall-mounted unit – all without the need for an external condenser.

CLICK FOR MORE DETAIL – CATALOGUE

---

Powerful Performance

• The recommended area of the premises: up to 40 m².

• High Cooling Capacity: With a cooling output of 3.5 kW, UNICO PRO efficiently cools even large rooms.

• Heating Power: Delivers up to 3.2 kW of heating capacity, making it ideal for year-round comfort.

• Energy Efficient: Reaches up to A energy class, thanks to advanced inverter technology and a synchronised compressor system for reduced energy use and quiet operation.

• All-Season Comfort: Provides cooling, heating, ventilation, and dehumidification modes for complete indoor climate control.

• Cooling-Only Option: Heating function can be disabled during installation if not required.

---

Smart Control & Connectivity

• Built-in Wi-Fi: Adjust your comfort remotely from any smartphone or smart home system.

• RS485 Port for BMS: Seamlessly integrates with external building management systems (BMS) via Modbus RTU.

• Touch Display: Intuitive backlit control panel for easy, direct access to all functions.

• On/Off Energy Management Contact: For enhanced automation and energy optimisation.

---

Whisper-Quiet Comfort

• Silent Mode: Operates as quietly as 32 dB(A) – perfect for bedrooms, offices, or hotels where silence matters.

• Even Air Distribution: Wide flap design ensures smooth and uniform airflow across the entire room.

---

Eco-Friendly Technology

• Refrigerant: Uses next-gen R32 refrigerant, which has a significantly lower global warming potential (GWP) than older gases.

• Efficient Design: Built for minimal energy use with maximum comfort.

• Made for Sustainability: Built-in features to reduce power consumption and improve long-term energy management.

---

Easy Installation & Maintenance

• No Outdoor Unit Required: Ideal for buildings with restrictions or where aesthetics matter.

• Front Access Maintenance: All internal components are accessible from the front after installation.

• Compact Dimensions: 903 x 520 x 215 mm

• Weight: 42 kg

---

Award-Winning Italian Design

Designed by renowned Italian architects Matteo Thun & Antonio Rodriguez, UNICO PRO blends minimalist design with maximum function. Its sleek, modern finish has earned global recognition and fits seamlessly into high-end residential or commercial spaces.

---

Advanced Filtration System

• Dual Filters: Includes an electrostatic filter to capture fine dust and an activated carbon filter to neutralise odours – improving indoor air quality for healthier living.

---

✅ Why Choose UNICO PRO?

• No external unit – fully self-contained

• Powerful enough for large rooms and commercial applications

• Smart control via Wi-Fi and building systems

• Ultra-quiet for undisturbed comfort

• Designed and engineered in Italy for elegance and efficiency

---

📐 Technical Specifications

General Information & Design

• Design: Designed by Matteo Thun and Antonio Rodriguez, it has essential and original lines, and has won numerous international competitions.
• Refrigerant Gas: R32, which is a low GWP (Global Warming Potential) refrigerant.
• Condensate Drain: Mandatory if heating is used.

Performance & Energy Efficiency

• Max Power Model: 3.5 kW.
• Cooling Power (min/max): 1.9/3.5 kW.
• Heating Power (min/max): 1.5/3.2 kW.
• Nominal Cooling Capacity (Prated): 3.1 kW.
• Nominal Heating Capacity (Prated): 2.4 kW.
• Nominal Energy Efficiency Index (EERD) (1): 2.6.
• Nominal Efficiency Coefficient (COP) (1): 3.1.
• Energy Efficiency Class in Cooling (1): A (on a range between A+++ and D).
• Energy Efficiency Class in Heating (1): A.
• Dehumidification Capacity: 1.3 l/h.

Electrical Data

• Supply Voltage (V-F-Hz): 230-1-50.
• Supply Voltage (min/max): 198/264 V.
• Nominal Power Consumption for Cooling (PEER) (1): 1.2 kW.
• Nominal Absorption for Cooling (1): 4.3 A.
• Nominal Power Consumption for Heating (PCOP) (1): 0.8 kW.
• Nominal Absorption for Heating (1): 3.76 A.
• Power Consumption in Cooling Mode (min/max): 0.5/1.5 kW.
• Absorption in Cooling Mode (min/max): 3.1/7.5 A.
• Absorbed Power in Heating Mode (min/max): 0.4/1.4 kW.
• Absorption in Heating Mode (min/max): 2.5/6.8 A.
• Power Cable (N pole×section mm2): 3×1.5.
• Electric Resistance Heating: Not applicable/No data available in the table.

Dimensions, Weight, and Acoustic Data

• Dimensions (WxHxD) (without packaging): 903×520×215 mm.
• Dimensions (WxHxD) (with packaging): 980×610×330 mm.
• Weight (without packaging): 39 kg.
• Weight (with packaging): 42 kg.
• Internal Sound Pressure (min/max) (2): 43/32-43 dB(A).
• Silent Mode Sound Pressure Level: 34 dB(A).
• Air Flow Rate in Cooling Environment (max/med/min): 350/390/490 m3/h.
• Air Flow Rate in Heating Environment (max/med/min): 350/390/490 m3/h.
• External Air Flow Rate in Cooling (max/min): 120/600 m3/h.
• External Air Flow Rate in Heating (max/min): 120/500 m3/h.

Refrigerant and Operation Limits

• Refrigerant Gas Type: R32.
• Refrigerant Gas Charge: 0.46 kg.
• Global Warming Potential (GWP): 675.
• Maximum Operating Pressure: 4.28 MPa.
• Operating Conditions Limits (Indoor/Outdoor):
• Maximum Temperature in Cooling (Outdoor): DB 43°C-WB 32°C.
• Minimum Temperature in Cooling (Outdoor): DB 24°C-WB 18°C.
• Maximum Temperature in Cooling (Indoor): DB 38.35°C-WB 24°C.
• Minimum Temperature in Cooling (Indoor): DB 18°C.
• Maximum Temperature in Heating (Indoor): DB 27°C.
• Minimum Temperature in Heating (Outdoor): DB −15°C.

Features & Functions

• Functions: Cooling, heating, dehumidification, and ventilation.
• Economy function: Allows energy savings by automatically optimising machine performance.
• Auto function: Modulates operating parameters relative to room temperature.
• Silent Mode function: Sets the machine to the lowest noise level (compressor and fans reduce sound pressure down to 34 dB(A)).
• 24 H timer.
• Filters: Multi-filtering system with an electrostatic filter (anti-dust) and an activated carbon filter (anti-odour).

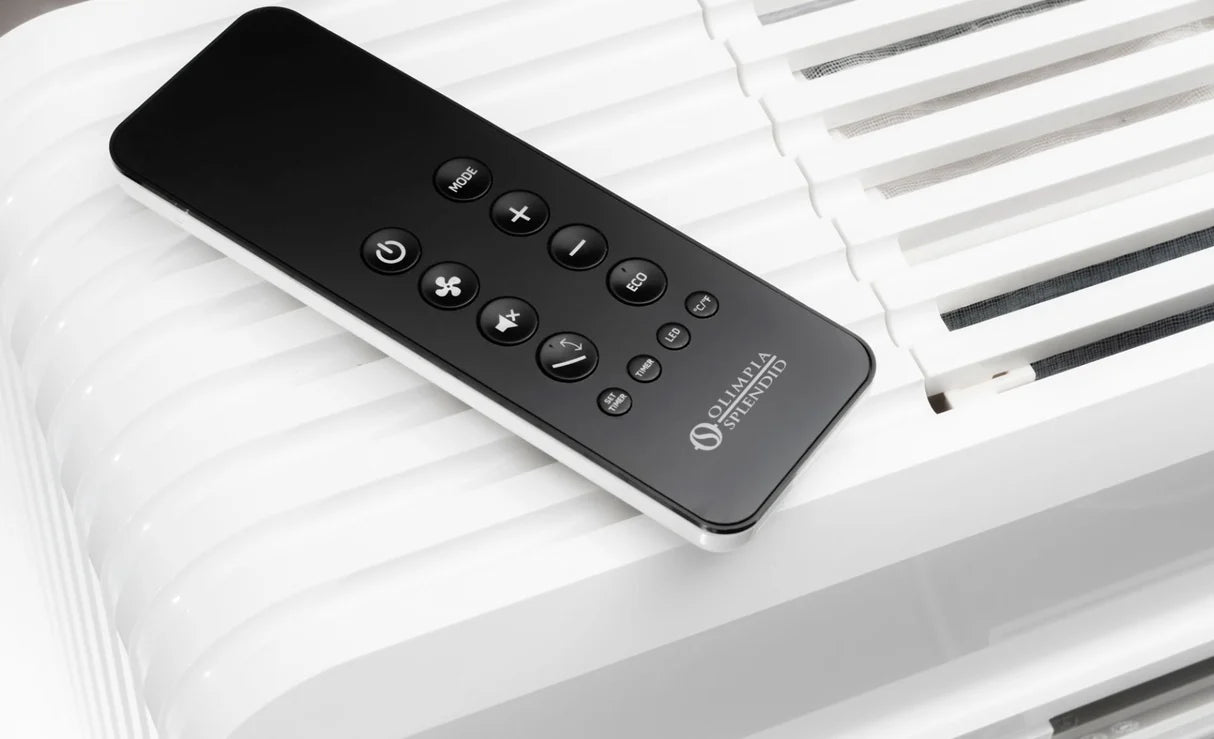

• Controls: Backlit display with touch controls on the machine; Remote Control Included; Wi-Fi capability.
• Connectivity: RS485 port prepared for controlling the conditioner with external BMS (Building Management System) in Modbus RTU language.
• Installation: Internal components are accessible from the front once the machine is installed. The machine can be configured during installation for "ONLY COOLING" (disabling heating) or "ONLY HEATING" (deactivating cooling).

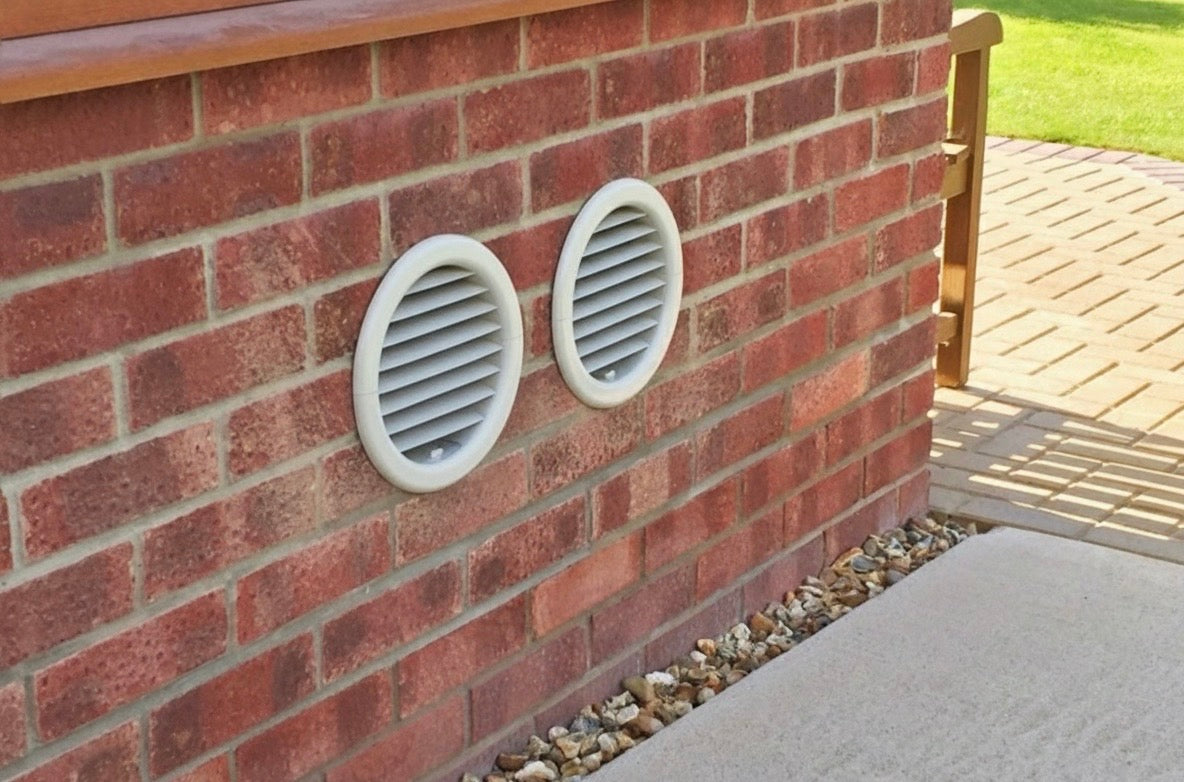

• Wall Holes: Diameter wall holes are 162/202 mm; machine is supplied with 202 mm grilles.
• Made in Italy.
• 3-year warranty.

---

🛒 Order now and enjoy silent, stylish, and sustainable air comfort — with the added reliability of electric heating for cold winters.

You can have the all-in-one Olimpia air conditioner installed by a third-party company (no F-gas certificate required), or make use of our professional installation services.
