The Ruck smoke box fan (MPS DF series) features a frequency-controlled motor that is positioned outside the air stream. This design prevents dirty or contaminated air, or gases up to 200 °C, from passing through the motor, ensuring durability and reliability. The fan is capable of handling short-term temperatures up to 400 °C, making it ideal for use in catering environments or applications involving grease. Note that the fan requires a frequency converter for operation, which can optionally be adjusted via a variable potentiometer.
MPS 500 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck
MPS 500 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck
MPS 500 D4 F4 30
- Backward curved centrifugal impeller

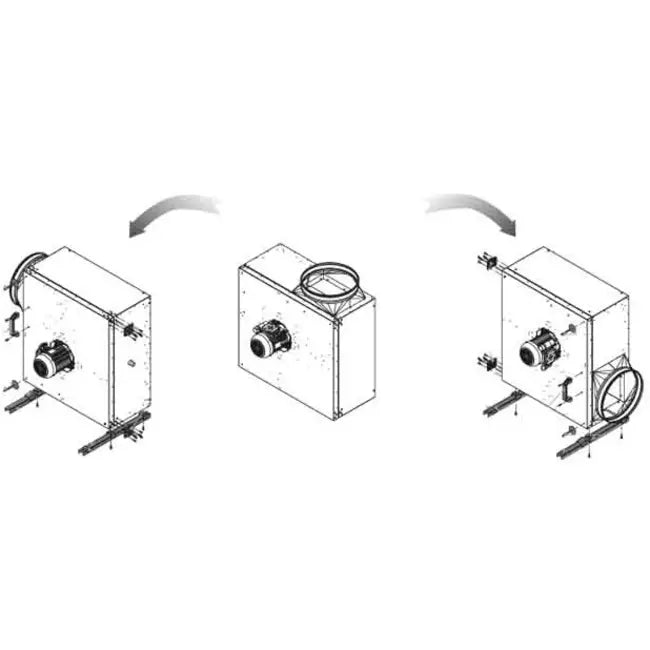

- Swing out fan unit
- Sheet steel housing double-walled, 40 mm mineral wool
- IE3 motor outside the airflow, frequency controllable
- Smoke extract fan F400, 200 °C continuous operation
- With condensate and grease drain
Maintenance is straightforward thanks to the fan's easy-open design, which also facilitates condensation and grease removal. The MPS DF series offers a wide range of capacities, from 1960 m³/h up to 11,840 m³/h, accommodating various ventilation needs while providing efficient performance.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Weight: 112.7 kg
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 3 A
- Max. pressure: 855 Pa
- Max. Air Volume: 7890 m³/h
- Max. Current Consumption: 3 A
- Max. power consumption: 1504 W
- Max. Static Efficiency: 53.7 %
- Max. allowed Frequency (3˜ motors): 50 Hz
- Max. allowed Medium Temperature: 200 °C
- Max. allowed Medium Temperature at Rated Current: 200 °C
- Max. allowed Ambient Temperature: 50 °C
- Max. allowed Ambient Temperature at Rated Current: 50 °C
- Max. number of revolutions: 1490 1/min
- Max. Total Efficiency: 57.8 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1450 1/min
- Nominal power consumption: 1504 W
- Nominal voltage: 400 V
- Nominal current: 2.8 A
- Direction of blow out: Shifted by 90° compared to suction
