The Ruck box fan (MPS EC T series) features an energy-efficient EC motor positioned outside the airflow. This design ensures that dirty or contaminated air up to 120 °C does not pass through the motor, making the fan ideal for use in catering or environments with grease. The motor can be operated via variable speed control (MTP 20), constant pressure control, or 0–10 V control. For duct connection, the Ruck fast clamp is recommended to minimize vibrations and noise.

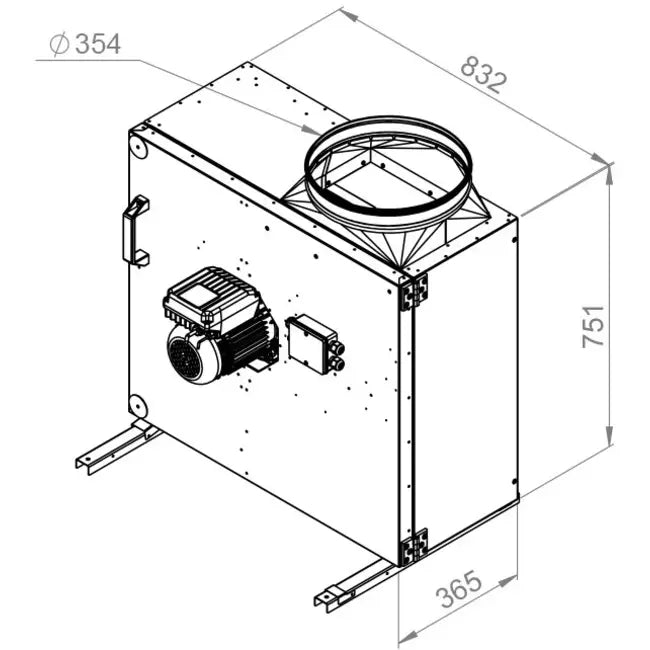

MPS 450 EC 30
- Backward curved centrifugal impeller
- Swing out fan unit
- Sheet steel housing double-walled, 40 mm mineral wool
- High efficiency EC motor outside the air flow
- Conveyed medium temperature up to 120 °C in continuous operation
- With condensate and grease drain
The fan is designed for easy maintenance and allows for condensation and grease extraction. The MPS EC series offers airflow capacities from 2220 m³/h up to 6975 m³/h, with diameters ranging from 200 mm to 355 mm.
Specifications
|
Number of phases |
1~ |
|
Type of motor control |
0-10V |
|
Category code |
35 |
|
Weight |
74 kg |
|
IP Motor |
IP54 |
|
Insulation Class Motor |
F |
|
Max. Operating Current |
9.7 A |
|
Max. pressure |
860 Pa |
|
Max. Air Volume |
6975 m³/h |
|
Max. Current Consumption |
9.7 A |
|
Max. power consumption |
1350 W |
|
Max. Static Efficiency |
57.2 % |
|
Max. allowed Medium Temperature |
120 °C |
|
Max. allowed Medium Temperature at Rated Current |
120 °C |
|
Max. allowed Ambient Temperature |
50 °C |
|
Max. allowed Ambient Temperature at Rated Current |
50 °C |
|
Max. number of revolutions |
1640 1/min |
|
Max. Total Efficiency |
64.3 % |
|
Min. Operating Temperature |
-20 °C |
|
Motor Protection |
TEC |
|
Motor type |
EC |
|
Nominal frequency |
50 Hz |
|
Rated Speed |
1640 1/min |
|
Nominal power consumption |
1350 W |
|
Nominal voltage |
230 V |
|
Nominal current |
9.2 A |
|
Direction of blow out |
Shifted by 90° compared to suction |
