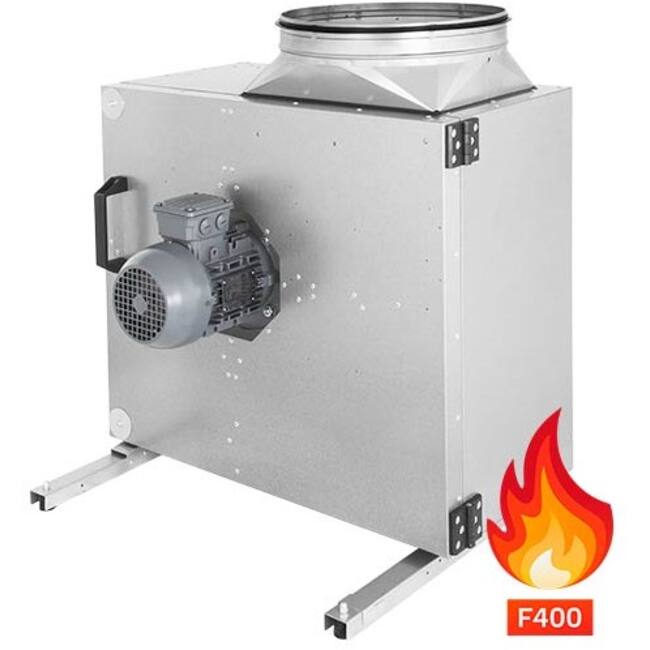

The Ruck MPS DF series smoke box fan features a frequency-driven motor positioned outside the air stream, preventing dirty or contaminated air and gases up to 200 °C from passing through the motor. The fan can even withstand temporary temperatures of up to 400 °C. Its design makes it particularly suitable for use in the catering industry or in environments with grease. The fan must be operated with a frequency converter, which can optionally be adjusted via a variable potentiometer.
MPS 450 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck
MPS 450 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck
MPS 450 D4 F4 30
- Backward curved centrifugal impeller

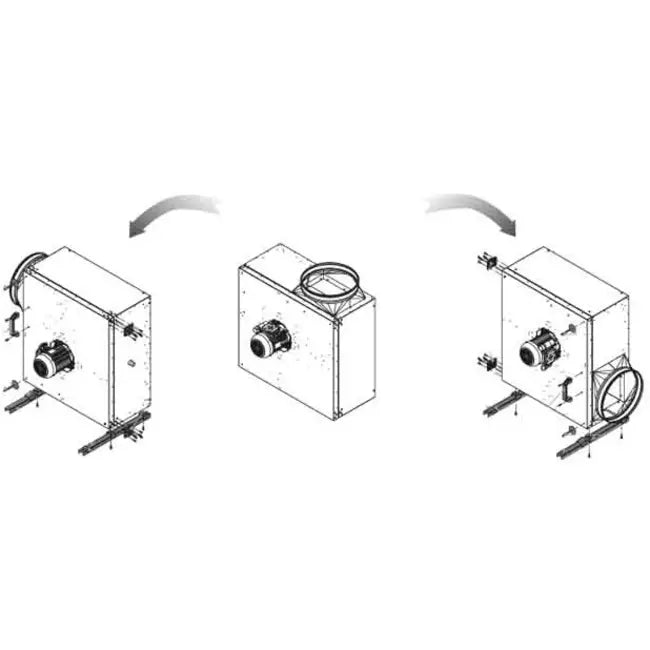

- Swing out fan unit
- Sheet steel housing double-walled, 40 mm mineral wool
- IE3 motor outside the airflow, frequency controllable
- Smoke extract fan F400, 200 °C continuous operation
- With condensate and grease drain
Maintenance is straightforward thanks to the swing-out design, allowing easy access for cleaning, condensation removal, and grease extraction. The MPS DF series offers airflow capacities from 1,960 m³/h up to 11,840 m³/h, providing a wide range of options for smoke extraction applications.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Weight: 74.9 kg
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 2.5 A
- Max. pressure: 850 Pa
- Max. Air Volume: 6600 m³/h
- Max. Current Consumption: 2.5 A
- Max. power consumption: 1278 W
- Max. Static Efficiency: 55.5 %
- Max. allowed Frequency (3~ motors): 55 Hz
- Max. allowed Medium Temperature: 200 °C
- Max. allowed Medium Temperature at Rated Current: 200 °C
- Max. allowed Ambient Temperature: 50 °C
- Max. allowed Ambient Temperature at Rated Current: 50 °C
- Max. number of revolutions: 1630 1/min
- Max. Total Efficiency: 60.9 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1600 1/min
- Nominal power consumption: 1278 W
- Nominal voltage: 400 V
- Nominal current: 2.4 A
- Direction of blow out: Shifted by 90° compared to suction
