MPC 450 D4 40 – Box fan with frequency driven AC motor – Ruck
MPC 450 D4 40 – Box fan with frequency driven AC motor – Ruck

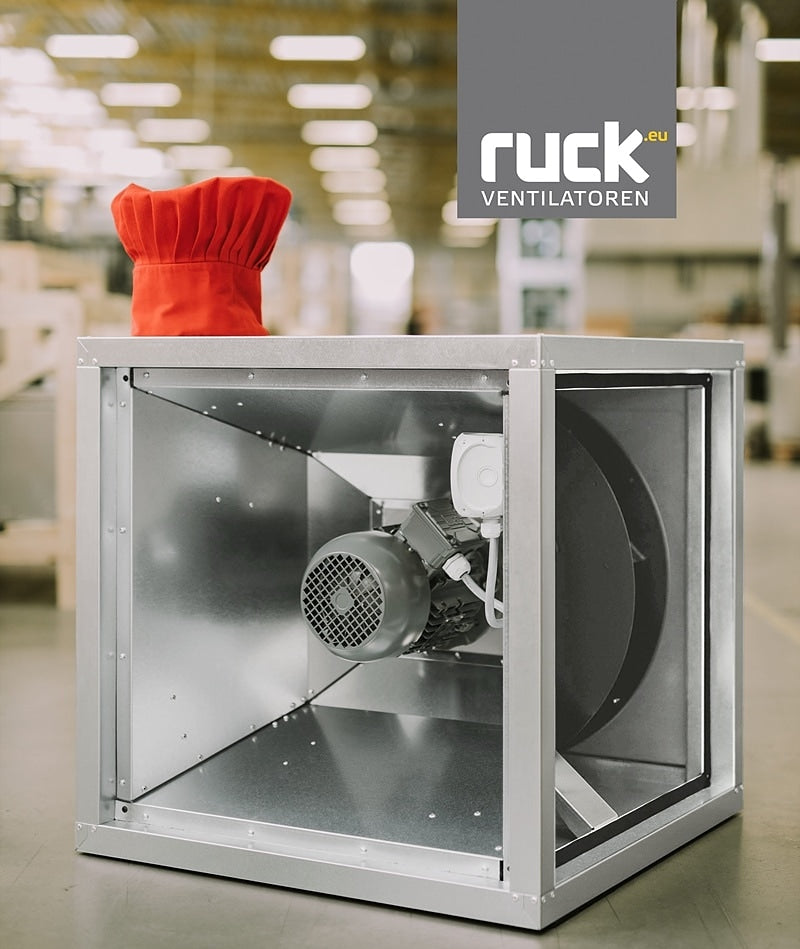

The Ruck MPC D T series box fan is equipped with a frequency-driven three-phase motor, mounted outside the air stream. This design prevents contaminated or greasy air from passing through the motor, making the unit particularly suitable for catering and other applications involving polluted air. Please note: operation requires a frequency converter, which can also be adjusted using a variable potentiometer if desired.
MPC 450 D4 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
The fan features 30 mm insulation and an integrated electronic temperature control system to prevent overheating. It can be installed using Ruck’s base frame and allows for a flexible discharge direction. The MPC D series offers a wide performance range, with capacities from 2010 m³/h up to 13,060 m³/h.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 75 kg
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 2.5 A
- Max. pressure: 810 Pa
- Max. Air Volume: 7125 m³/h
- Max. Current Consumption: 2.5 A
- Max. power consumption: 1226 W
- Max. Static Efficiency: 53.1 %
- Max. allowed Frequency (3~ motors): 55 Hz
- Max. allowed Medium Temperature: 120 °C
- Max. allowed Medium Temperature at Rated Current: 120 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 1630 1/min
- Max. Total Efficiency: 53.7 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1470 1/min
- Nominal power consumption: 967 W
- Nominal voltage: 400 V
- Nominal current: 2.2 A
- Direction of blow out: Shifted by 90° compared to suction
