MPC 400 D4 F4 T40 – Smoke extractor box fan with motor outside the air stream – Ruck
MPC 400 D4 F4 T40 – Smoke extractor box fan with motor outside the air stream – Ruck

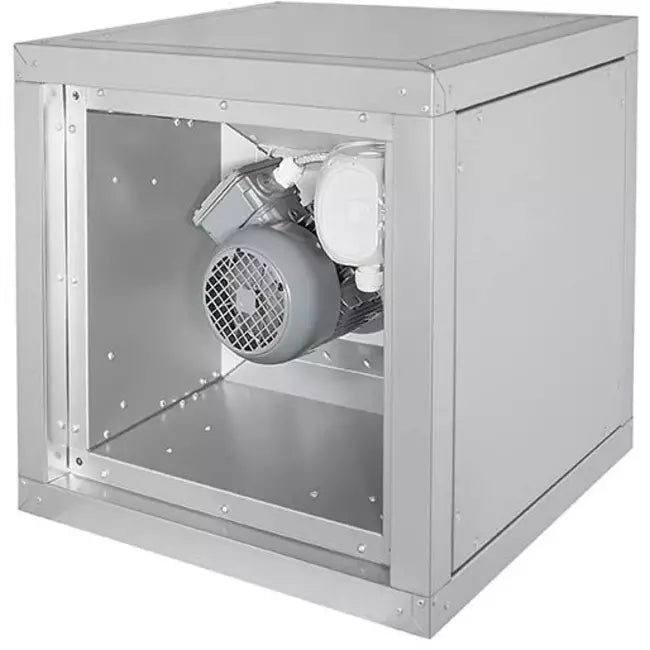

The Ruck® smoke box fan (MPC DFT series) is equipped with a frequency-driven three-phase motor, positioned outside the air stream. Thanks to this design, contaminated or greasy air, as well as smoke, does not pass through the motor. This construction allows the fan to operate continuously at temperatures up to 200 °C and withstand peaks of 400 °C for up to 120 minutes. Such characteristics make it ideal for use in catering and kitchen extraction systems. Please note that operation requires a frequency converter, which can also be controlled via a variable potentiometer if needed.
MPC 400 D4 F4 T40
- Backward curved centrifugal impeller
- Variable discharge direction right / left / up
- Galvanized sheet steel housing, double-walled, 25 mm mineral wool
- IE3 motor outside airflow, frequency controllable
- Smoke extract fan F400, 200 °C continuous operation, dual-use
- Housing bottom designed with integrated drain
The unit features 30 mm insulation and integrated electronic temperature protection, preventing overheating and motor damage. Installation is possible using the Ruck® base frame, while the discharge direction can be flexibly adjusted. Additionally, all Ruck® smoke extraction fans are F400 certified, ensuring compliance with strict fire safety standards.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Weight: 65 kg
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.1 A
- Max. pressure: 505 Pa
- Max. Air Volume: 4840 m³/h
- Max. Current Consumption: 1.1 A
- Max. power consumption: 564 W
- Max. Static Efficiency: 50.5 %
- Max. allowed Frequency (3~ motors): 50 Hz
- Max. allowed Medium Temperature: 200 °C
- Max. allowed Medium Temperature at Rated Current: 200 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 1470 1/min
- Max. Total Efficiency: 50.9 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1440 1/min
- Nominal power consumption: 564 W
- Nominal voltage: 400 V
- Nominal current: 1.1 A
- Direction of blow out: Shifted by 90° compared to suction
