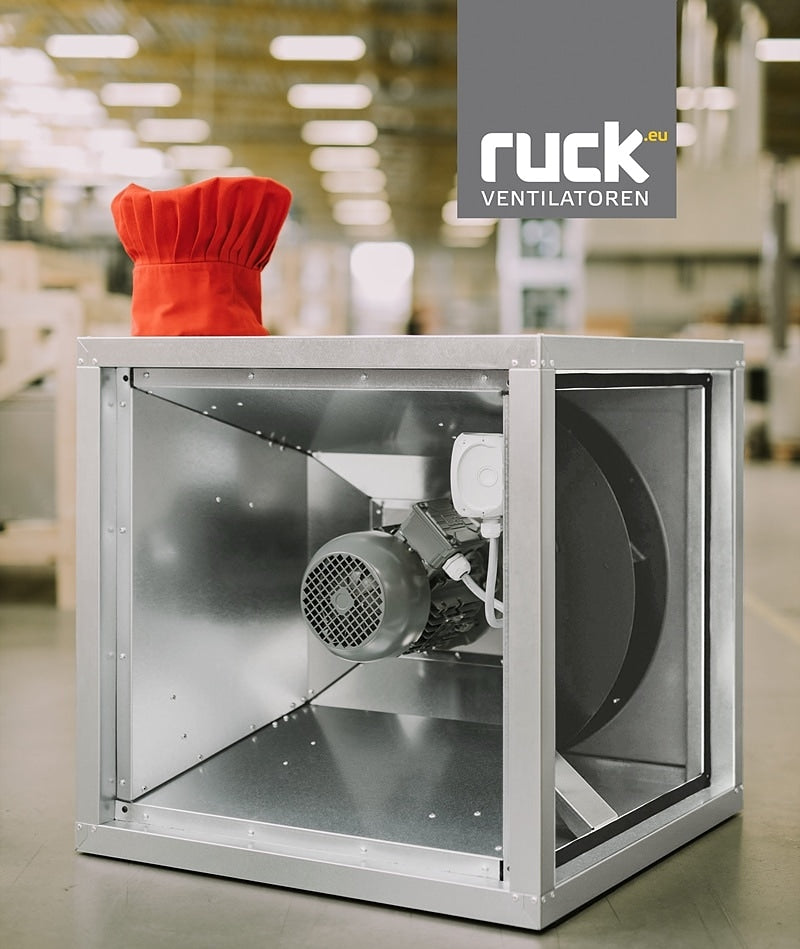

MPC 400 D4 40 – Box fan with frequency driven AC motor – Ruck
MPC 400 D4 40 – Box fan with frequency driven AC motor – Ruck
The box fan is designed with 30 mm insulation and an integrated electronic temperature control system to prevent overheating. It can be mounted using Ruck®’s base frame and allows for flexible discharge direction. The MPC series offers airflow capacities starting from 2020 m³/h and reaching up to 19555 m³/h. Please note that operation requires a frequency converter, which can also be managed via a variable potentiometer if needed.
MPC 400 D4 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of expertise in the ventilation industry. As a market leader in energy-efficient box fans, the company employs more than 300 dedicated specialists who continuously develop and improve new technologies. With strict quality control processes in place, Ruck ensures reliable performance and compliance with the latest ERP (Energy Related Product) standards.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 66 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.1 A
- Max. pressure: 540 Pa
- Max. Air Volume: 4730 m³/h
- Max. Current Consumption: 1.1 A
- Max. power consumption: 553 W
- Max. Static Efficiency: 52.6 %
- Max. allowed Frequency (3~ motors): 50 Hz
- Max. allowed Medium Temperature: 60 °C
- Max. allowed Medium Temperature at Rated Current: 60 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 1480 1/min
- Max. Total Efficiency: 53.2 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1450 1/min
- Nominal power consumption: 553 W
- Nominal voltage: 400 V
- Nominal current: 1 A
- Direction of blow out: Shifted by 90° compared to suction
