The Ruck box fan (MPC D T series) is designed with a frequency-driven three-phase motor, strategically mounted outside the airflow. This construction prevents contaminated air, such as grease or smoke particles, from passing through the motor, ensuring longer service life and reliable operation. Thanks to this feature, the unit is a preferred choice for demanding environments like the catering industry, where air extraction often involves greasy or polluted air. It is important to note that the fan requires operation with a frequency converter, which can also be managed via a variable potentiometer for greater control.

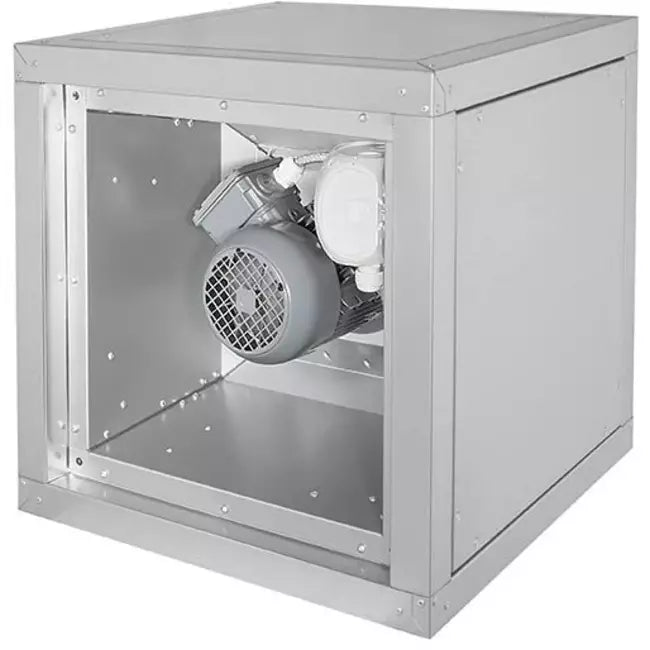

MPC 355 D4 F4 T40

• Backward curved centrifugal impeller
• Variable discharge direction right / left / up
• Galvanized sheet steel housing, double-walled, 25 mm mineral wool
• IE3 motor outside airflow, frequency controllable
• Smoke extract fan F400, 200 °C continuous operation, dual-use
• Housing bottom designed with integrated drain


Built with 30 mm insulation, the box fan provides effective noise reduction and protection, while its integrated electronic temperature control safeguards the motor against overheating. For installation, the fan can be mounted using Ruck’s base frame, offering flexibility with a variable discharge direction to suit different layouts.

Specifications

• Number of phases: 3~
• Number of poles: 4
• Type of motor control: F
• Category code: 35
• Capacitor µ: 0 µF
• Capacitor Voltage: 0 V
• Weight: 63 kg
• IP Motor: IP55
• Insulation Class Motor: F
• Max. Operating Current: 1.4 A
• Max. pressure: 810 Pa
• Max. Air Volume: 4590 m³/h
• Max. Current Consumption: 1.4 A
• Max. power consumption: 793 W
• Max. Static Efficiency: 52.9 %
• Max. allowed Frequency (3~ motors): 70 Hz
• Max. allowed Medium Temperature: 200 °C
• Max. allowed Medium Temperature at Rated Current: 200 °C
• Max. allowed Ambient Temperature: 60 °C
• Max. allowed Ambient Temperature at Rated Current: 60 °C
• Max. number of revolutions: 2060 1/min
• Max. Total Efficiency: 53.2 %
• Min. Operating Temperature: -20 °C
• Motor type: 3~
• Nominal frequency: 50 Hz
• Rated Speed: 1470 1/min
• Nominal power consumption: 338 W
• Nominal voltage: 400 V
• Nominal current: 0.8 A
• Direction of blow out: Shifted by 90° compared to suction
