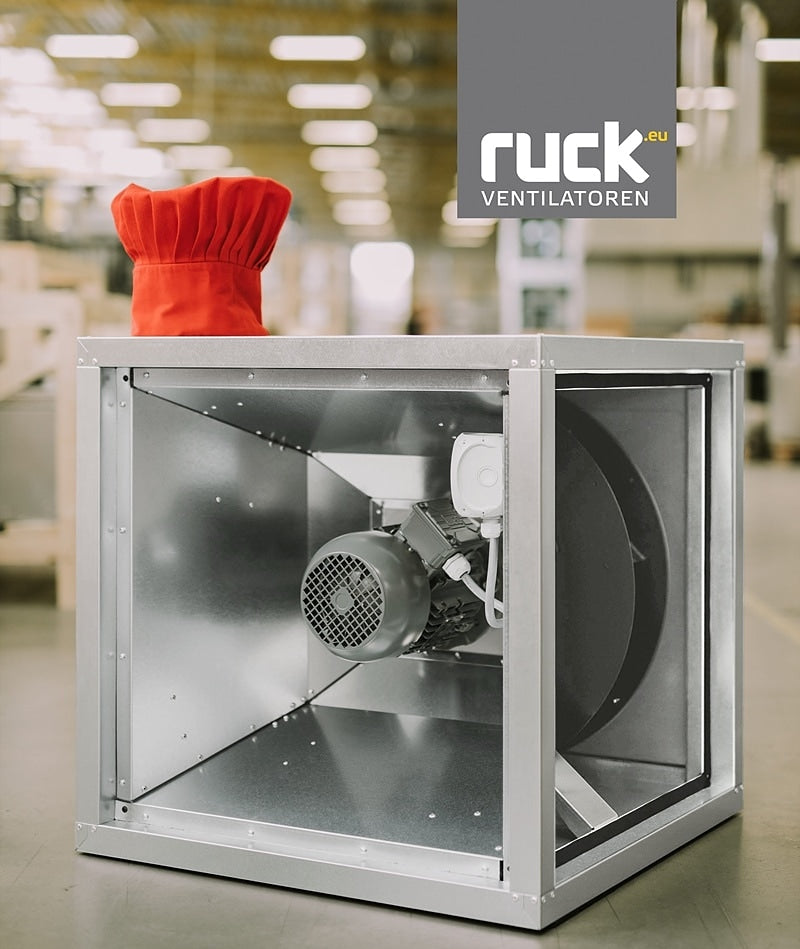

MPC 355 D4 40 – Box fan with frequency driven AC motor – Ruck
MPC 355 D4 40 – Box fan with frequency driven AC motor – Ruck
The box fan comes with 30 mm insulation and features an integrated electronic temperature control system to prevent overheating. It can be mounted using Ruck®'s base frame and offers a flexible discharge direction. The MPC series covers a wide performance range, with capacities from 2020 m³/h up to 19555 m³/h. Please note: the fan must be operated with a frequency converter, which can also be adjusted via a variable potentiometer if required.
MPC 355 D4 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of expertise. As a market leader in energy-efficient box fans, the company employs more than 300 specialists who continuously develop innovative solutions and technologies. With strict quality assurance processes, Ruck ensures that all products meet the latest ERP (Energy Related Product) standards while delivering exceptional reliability and performance.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 63 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.4 A
- Max. pressure: 800 Pa
- Max. Air Volume: 4620 m³/h
- Max. Current Consumption: 1.4 A
- Max. power consumption: 821 W
- Max. Static Efficiency: 54.1 %
- Max. allowed Frequency (3~ motors): 70 Hz
- Max. allowed Medium Temperature: 60 °C
- Max. allowed Medium Temperature at Rated Current: 60 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 2050 1/min
- Max. Total Efficiency: 54.6 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1470 1/min
- Nominal power consumption: 349 W
- Nominal voltage: 400 V
- Nominal current: 0.8 A
- Direction of blow out: Shifted by 90° compared to suction
