MPC 315 D4 F4 T40 – Smoke extractor box fan – Ruck
MPC 315 D4 F4 T40 – Smoke extractor box fan – Ruck

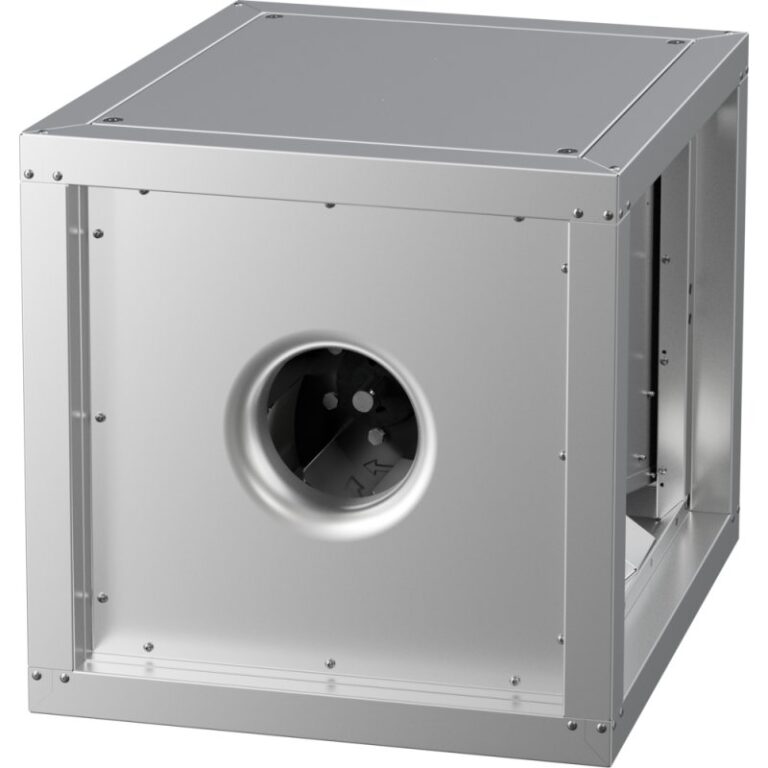

The Ruck smoke box fan (MPC DFT series) features a frequency-controlled three-phase motor, mounted outside the air stream. This design ensures that contaminated or greasy air does not pass through the motor, allowing the fan to operate continuously at 200°C and temporarily withstand up to 400°C for 120 minutes. Due to these properties, the fan is commonly used for smoke and grease extraction in catering and industrial kitchens. Note: operation requires a frequency converter, which can optionally be adjusted using a variable potentiometer.
MPC 315 D4 F4 T40
- Backward curved centrifugal impeller
- Variable discharge direction right / left / up
- Galvanized sheet steel housing, double-walled, 25 mm mineral wool
- IE3 motor outside airflow, frequency controllable
- Smoke extract fan F400, 200 °C continuous operation, dual-use
- Housing bottom designed with integrated drain
Equipped with 30 mm insulation and internal electronic temperature protection, the smoke box fan is designed to prevent motor burnout. It can be mounted on Ruck's base frame with a variable discharge direction.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Weight: 40 kg
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.1 A
- Max. pressure: 810 Pa
- Max. Air Volume: 3300 m³/h
- Max. Current Consumption: 1.1 A
- Max. power consumption: 658 W
- Max. Static Efficiency: 43.6 %
- Max. allowed Frequency (3˜ motors): 80 Hz
- Max. allowed Medium Temperature: 200 °C
- Max. allowed Medium Temperature at Rated Current: 200 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 2360 1/min
- Max. Total Efficiency: 44.1 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1480 1/min
- Nominal power consumption: 221 W
- Nominal voltage: 400 V
- Nominal current: 0.7 A
- Direction of blow out: Shifted by 90° compared to suction
