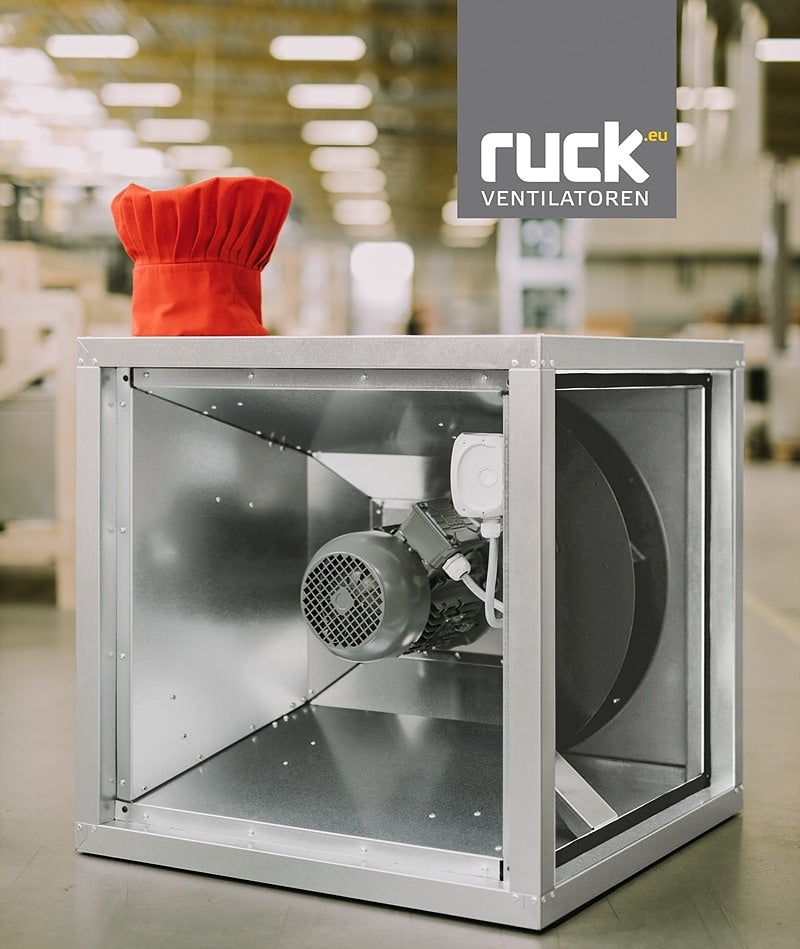

The box fan comes with 30 mm insulation and an integrated electronic temperature control system that protects the unit from overheating. It can be mounted using the Ruck® base frame and offers a flexible discharge direction. The MPC series covers a wide performance range, with airflow capacities from 2,020 m³/h up to 19555 m³/h. Please note: operation requires a frequency converter, which can optionally be regulated via a variable potentiometer.
MPC 315 D4 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of expertise in ventilation technology. As a market leader in efficient box fans, the company employs more than 300 dedicated specialists who continuously develop innovative solutions and technologies. With strict quality assurance processes in place, Ruck ensures that every product complies with the latest ERP (Energy Related Product) standards, delivering both performance and energy efficiency.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 39 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.1 A
- Max. pressure: 810 Pa
- Max. Air Volume: 3410 m³/h
- Max. Current Consumption: 1.1 A
- Max. power consumption: 617 W
- Max. Static Efficiency: 46.3 %
- Max. allowed Frequency (3~ motors): 80 Hz
- Max. allowed Medium Temperature: 60 °C
- Max. allowed Medium Temperature at Rated Current: 60 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 2360 1/min
- Max. Total Efficiency: 46.9 %
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1480 1/min
- Nominal power consumption: 205 W
- Nominal voltage: 400 V
- Nominal current: 0.8 A
- Direction of blow out: Shifted by 90° compared to suction
