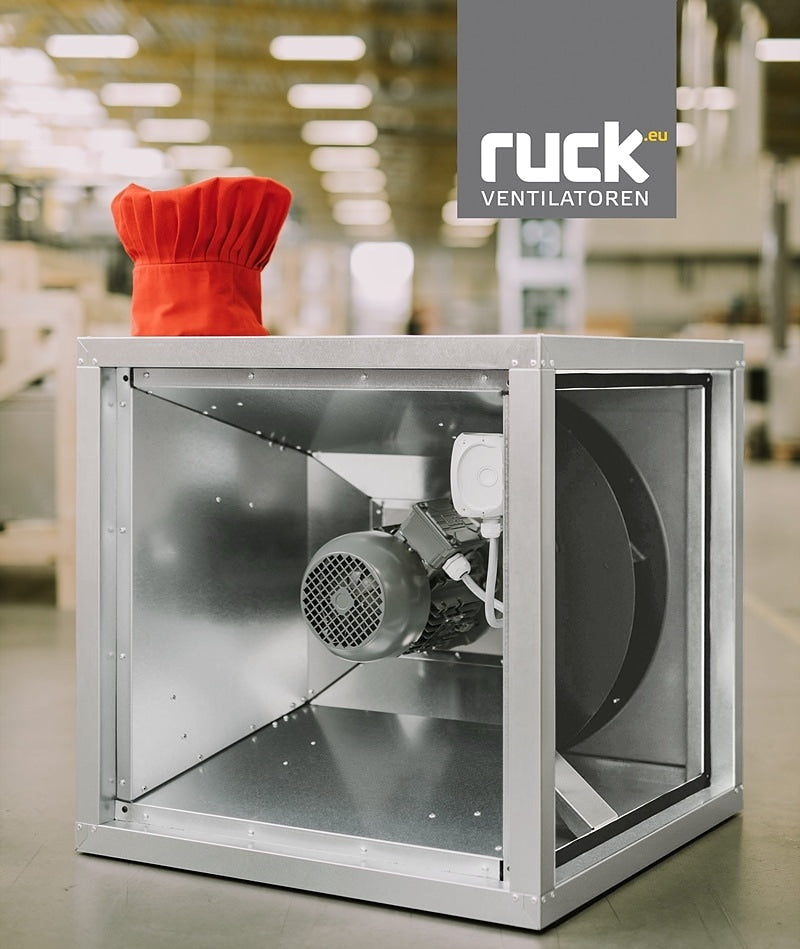

MPC 315 D2 40 – Box fan with frequency-driven AC motor – Ruck
MPC 315 D2 40 – Box fan with frequency-driven AC motor – Ruck
The box fan is fitted with 30 mm insulation and an internal electronic temperature control system to protect the motor from overheating. It can be installed using Ruck®’s base frame and offers a flexible discharge direction. The MPC series is available in models with air capacities from 2020 m³/h up to 19555 m³/h. Note: operation requires a frequency converter, which can also be managed via a variable potentiometer if needed.
MPC 315 D2 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a leading German manufacturer with more than 25 years of experience and a strong reputation for producing energy-efficient box fans. With over 300 skilled employees, the company consistently develops new technologies and solutions. Ruck upholds strict quality standards and complies with the latest ERP (Energy Related Product) regulations, ensuring reliable performance and long-lasting products.
Specifications
- Number of phases: 3~
- Number of poles: 2
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 39 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 2.4 A
- Max. Pressure: 1270 Pa
- Max. Air Volume: 4295 m³/h
- Max. Current Consumption: 2.4 A
- Max. Power Consumption: 1162 W
- Max. Static Efficiency: 49.8 %
- Max. Allowed Frequency (3~ motors): 50 Hz
- Max. Allowed Medium Temperature: 60 °C
- Max. Allowed Medium Temperature at Rated Current: 60 °C
- Max. Allowed Ambient Temperature: 60 °C
- Max. Allowed Ambient Temperature at Rated Current: 60 °C
- Max. Number of Revolutions: 2960 1/min
- Max. Total Efficiency: 50.7 %
- Min. Operating Temperature: -20 °C
- Motor Type: 3~
- Nominal Frequency: 50 Hz
- Rated Speed: 2880 1/min
- Nominal Power Consumption: 1162 W
- Nominal Voltage: 400 V
- Nominal Current: 2.3 A
- Direction of Blow Out: Shifted by 90° compared to suction
