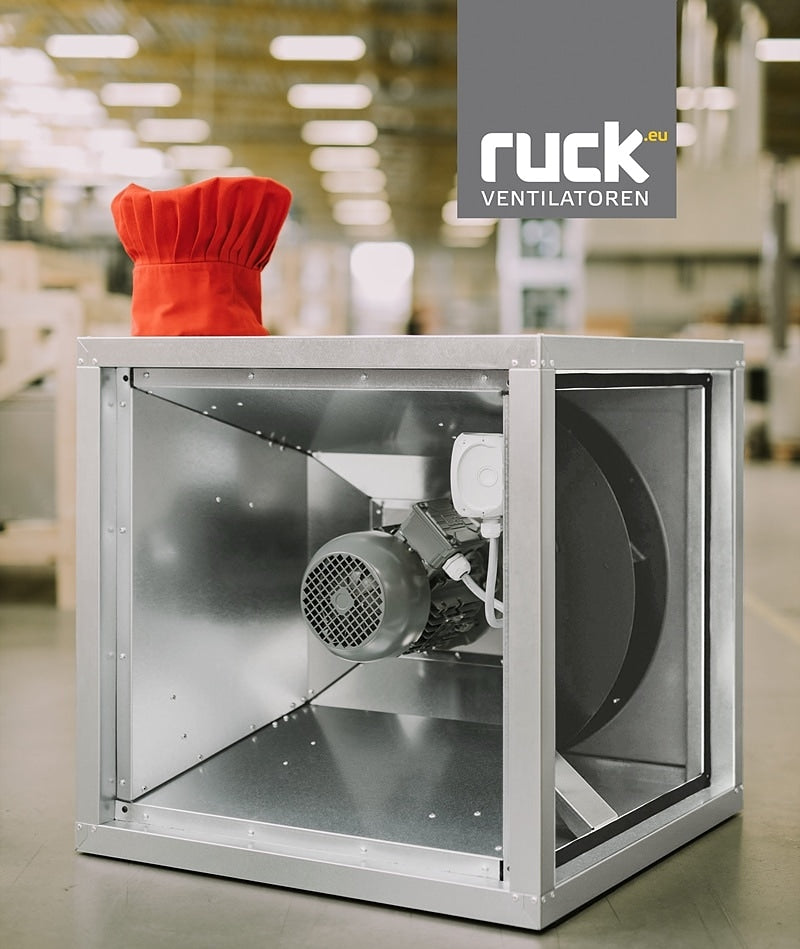

MPC 280 D2 40 – Box fan with frequency driven AC motor – Ruck
MPC 280 D2 40 – Box fan with frequency driven AC motor – Ruck
The box fan is designed with 30 mm insulation and features an integrated electronic temperature control system to protect the motor from overheating. It can be installed using Ruck®’s base frame and allows for an adjustable discharge direction. The MPC series is available with air capacities ranging from 2020 m³/h up to 19555 m³/h. Important: the unit must be operated with a frequency converter, which can also be adjusted using a variable potentiometer if required.
MPC 280 D2 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a German manufacturer with over 25 years of experience and a leading position in the production of cost-efficient box fans. With more than 300 dedicated employees, the company continuously works on innovations and new technologies. Ruck maintains strict quality control and ensures compliance with the latest ERP (Energy Related Product) standards, delivering reliable and energy-efficient solutions.
Specifications
- Number of phases: 3~
- Number of poles: 2
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 36 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.2 A
- Max. Pressure: 2970 Pa
- Max. Air Volume: 2970 m³/h
- Max. Current Consumption: 1.2 A
- Max. Power Consumption: 686 W
- Max. Static Efficiency: 47.5 %
- Max. Allowed Frequency (3~ motors): 50 Hz
- Max. Allowed Medium Temperature: 60 °C
- Max. Allowed Medium Temperature at Rated Current: 60 °C
- Max. Allowed Ambient Temperature: 60 °C
- Max. Allowed Ambient Temperature at Rated Current: 60 °C
- Max. Number of Revolutions: 2925 1/min
- Max. Total Efficiency: 48.2 %
- Min. Operating Temperature: -20 °C
- Motor Type: 3~
- Nominal Frequency: 50 Hz
- Rated Speed: 2790 1/min
- Nominal Power Consumption: 686 W
- Nominal Voltage: 400 V
- Nominal Current: 1.2 A
- Direction of Blow Out: Shifted by 90° compared to suction
