MPC 250 E2 T20 – Box fan MPC with motor outside air stream – Ruck
MPC 250 E2 T20 – Box fan MPC with motor outside air stream – Ruck

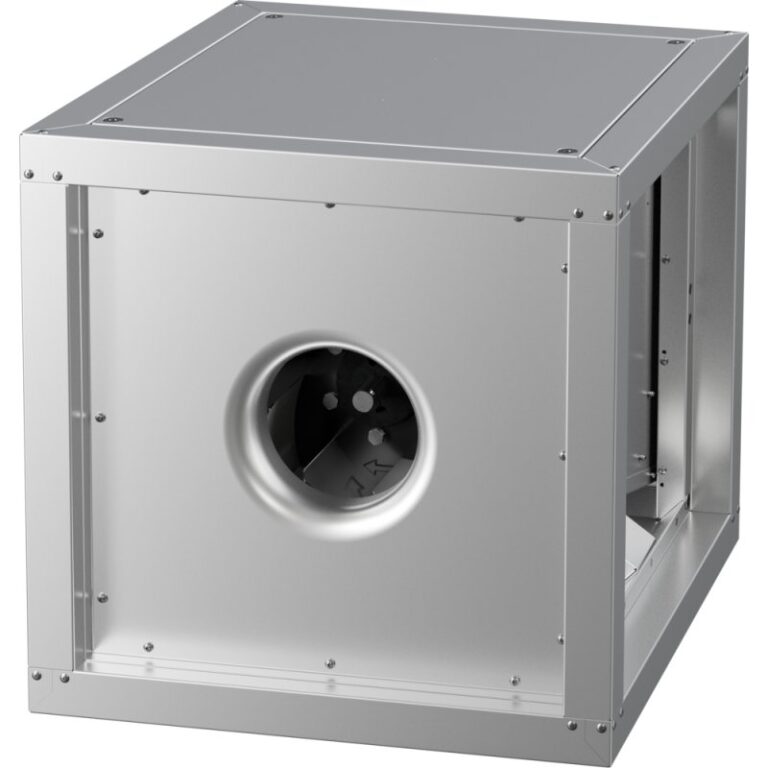

The Ruck® box fan (MPC T series) features an economical motor mounted outside the air stream, preventing dirty or contaminated air (such as grease) from passing through the motor. This design makes the fan ideal for catering and kitchen extraction applications. It also includes a grease drain tray for easy removal. The motor can be controlled via a 5- or 7-step transformer. For installations using a reducer, the Ruck® fast clamp is recommended to minimize vibrations and noise in the duct.
Equipped with 30 mm insulation and internal electronic temperature control to prevent overheating, the box fan can be mounted using Ruck®’s base frame and allows for adjustable discharge direction. The MPC T series is available with capacities from 1740 m³/h up to 15750 m³/h and diameters ranging from 250 mm to 630 mm.
Specifications
- Max. power consumption (device): 454 W Ped, max
- Max. operating current (device): 3.38 A Ied, max
- Max. speed: 2950 1/min nmax
- Max. static efficiency: 50.1 % ηes
- Max. fan efficiency: 50.7 % ηe
- Max. flowrate: 2610 m³/h qv, max
- Max. static pressure: 790 Pa psf, max
- Max. medium temperature: 80 °C Tm, max
- Max. environment temperature: 80 °C Tamb, max
- Min. environment temperature: -25 °C Tamb, min
- Min. voltage: 110 V Umin
Click for more detail
MANUAL.PDF
PRODUCT OVERVIEW.PDF
