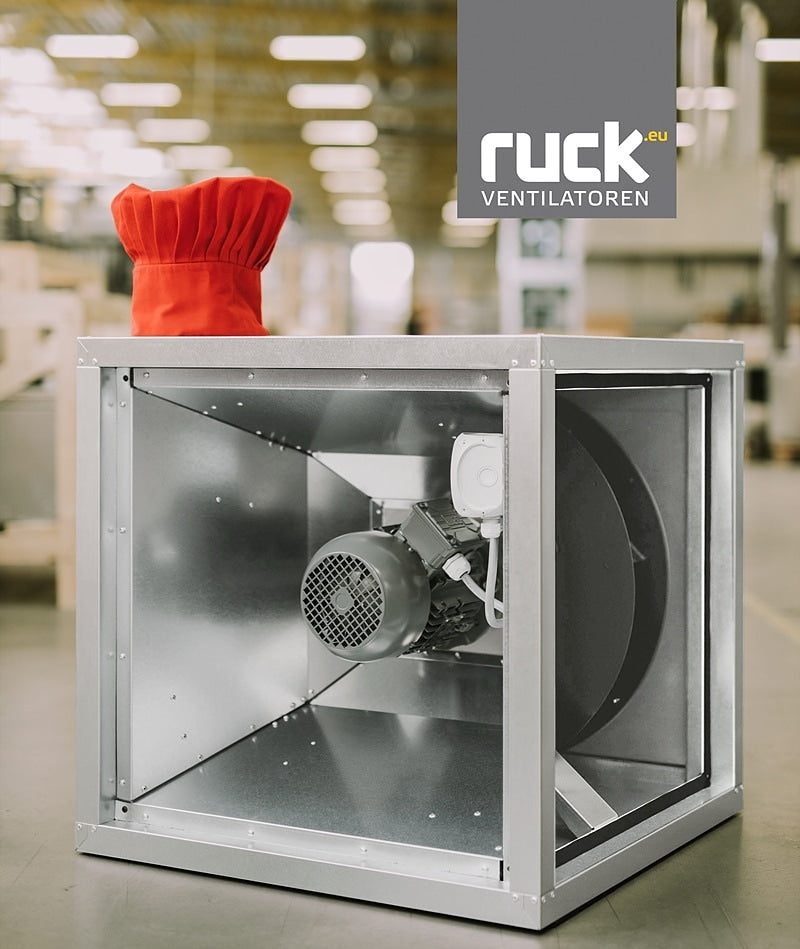

MPC 250 D2 40 – Box fan with frequency driven AC motor – Ruck
MPC 250 D2 40 – Box fan with frequency driven AC motor – Ruck
The box fan features 30 mm insulation and an integrated electronic temperature control system that protects the motor from overheating. It can be installed using Ruck®’s base frame and offers adjustable discharge direction. The MPC series is available in versions with air capacities ranging from 2020 m³/h up to 19555 m³/h. Please note: the unit must be operated with a frequency converter, which can optionally be regulated with a variable potentiometer.
MPC 250 D2 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a German company with over 25 years of expertise and a strong reputation in the production of energy-efficient box fans. With a team of more than 300 dedicated employees, the company continuously develops innovative solutions and technologies. Ruck ensures strict quality control and compliance with the latest ERP (Energy Related Product) standards, delivering reliable and high-performance products.
Specifications
- Number of phases: 3~
- Number of poles: 2
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 35.5 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 1.2 A
- Max. Pressure: 1150 Pa
- Max. Air Volume: 2730 m³/h
- Max. Current Consumption: 1.2 A
- Max. Power Consumption: 700 W
- Max. Static Efficiency: 47.6 %
- Max. Allowed Frequency (3~ motors): 60 Hz
- Max. Allowed Medium Temperature: 60 °C
- Max. Allowed Medium Temperature at Rated Current: 60 °C
- Max. Allowed Ambient Temperature: 60 °C
- Max. Allowed Ambient Temperature at Rated Current: 60 °C
- Max. Number of Revolutions: 3490 1/min
- Max. Total Efficiency: 48 %
- Min. Operating Temperature: -20 °C
- Motor Type: 3~
- Nominal Frequency: 50 Hz
- Rated Speed: 2870 1/min
- Nominal Power Consumption: 441 W
- Nominal Voltage: 400 V
- Nominal Current: 0.9 A
- Direction of Blow Out: Shifted by 90° compared to suction
