Midea MMCS-12HRN8-QRD0 Portable Split Air Conditioner (Inverter)
Core Advantage: True Split-System Performance with Portable Flexibility
-

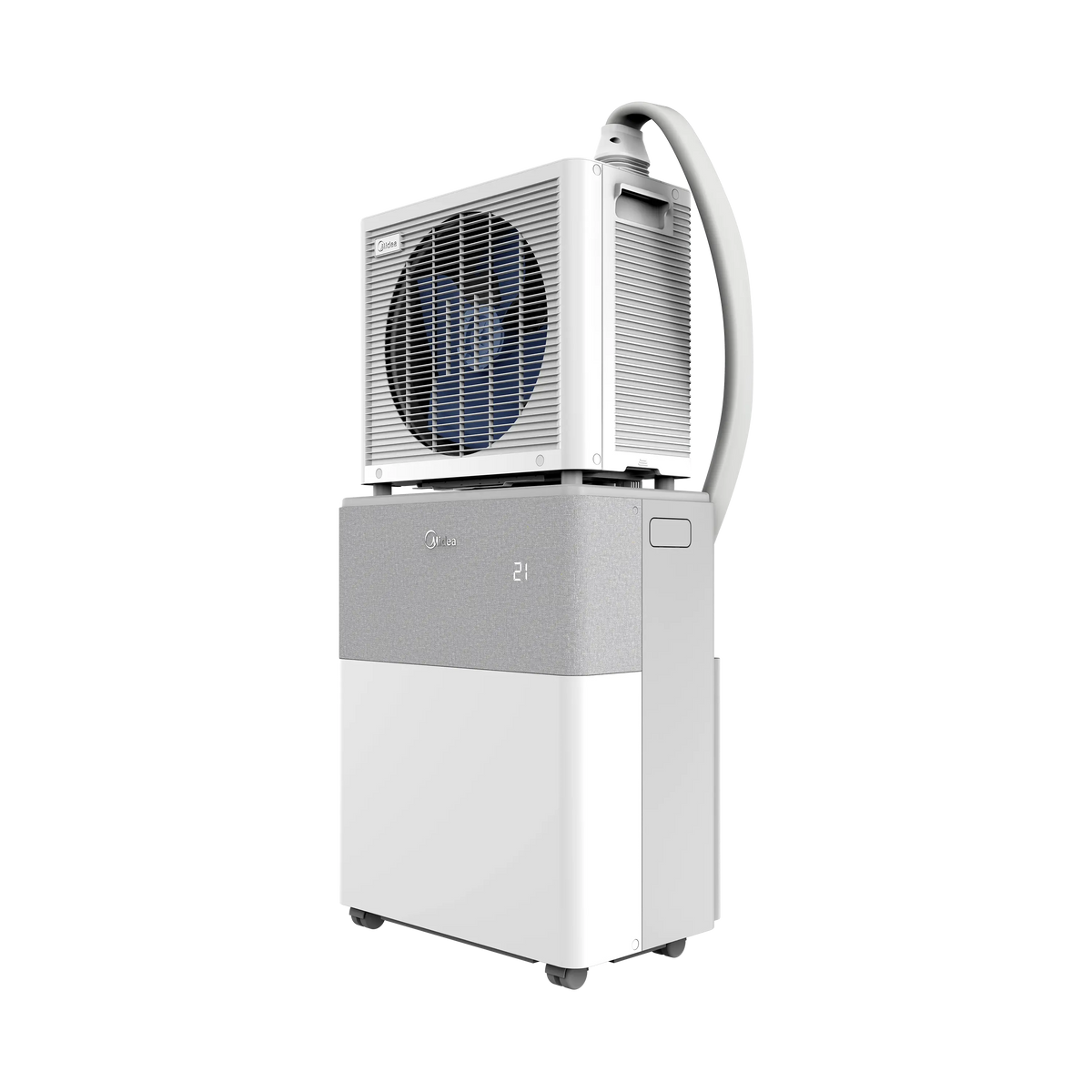

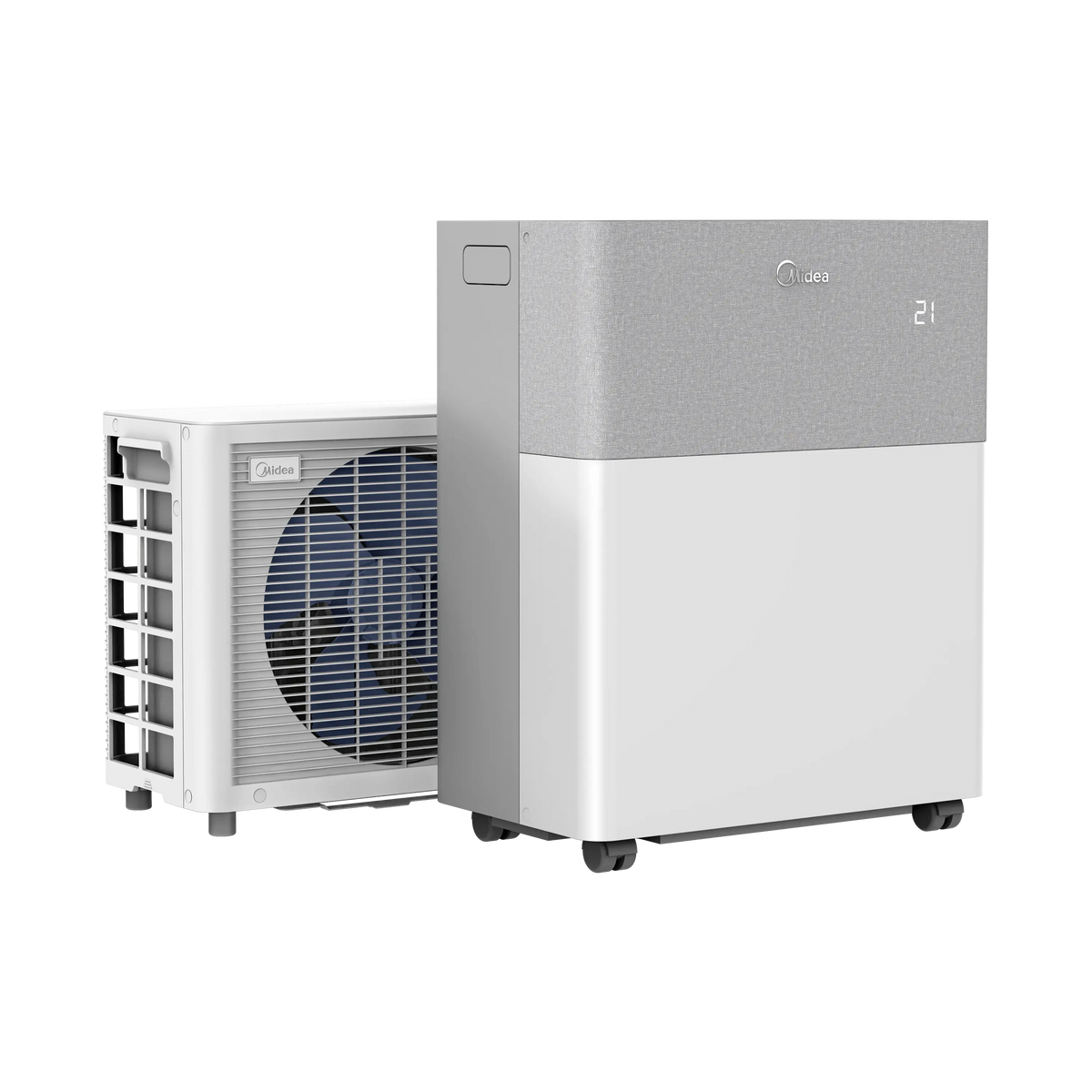

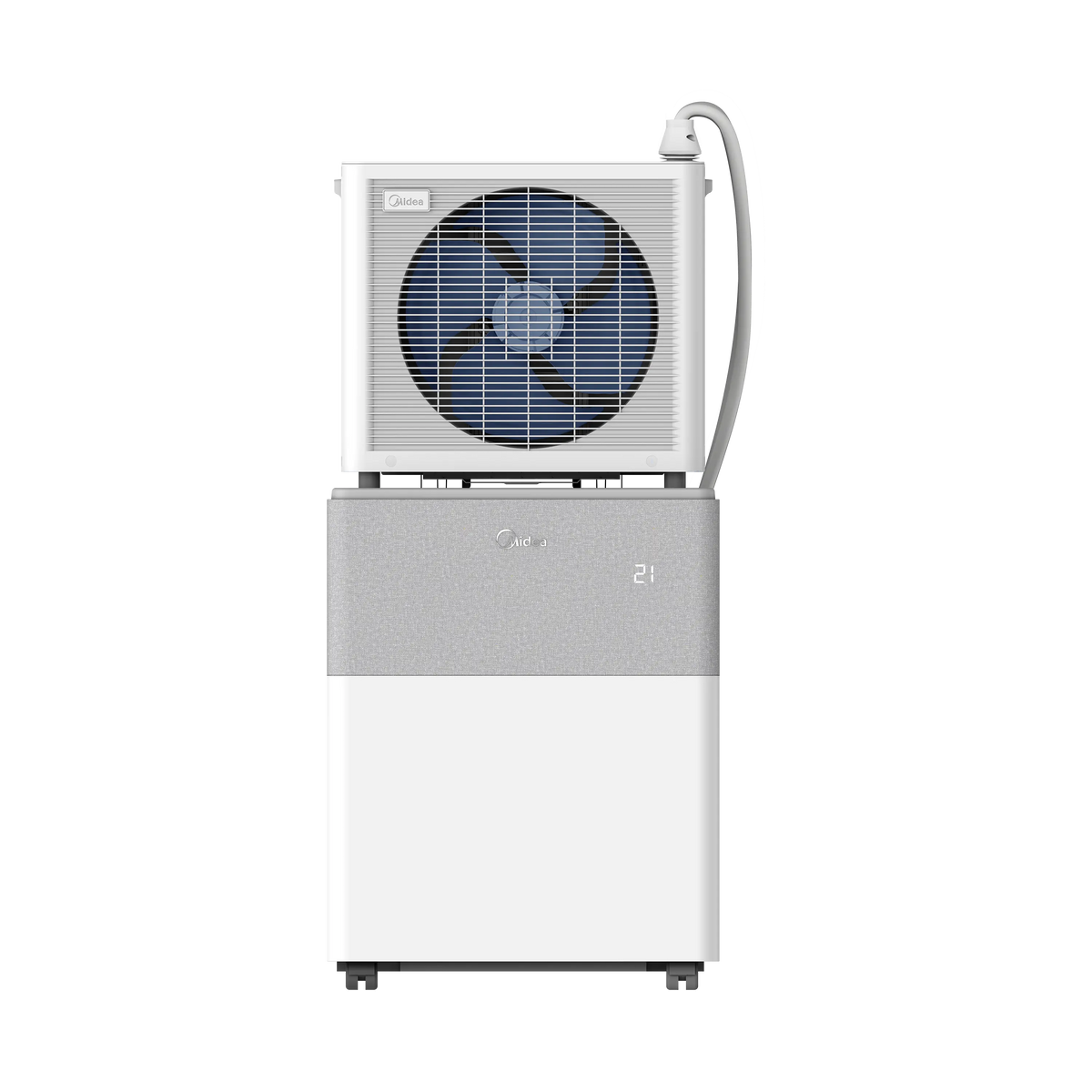

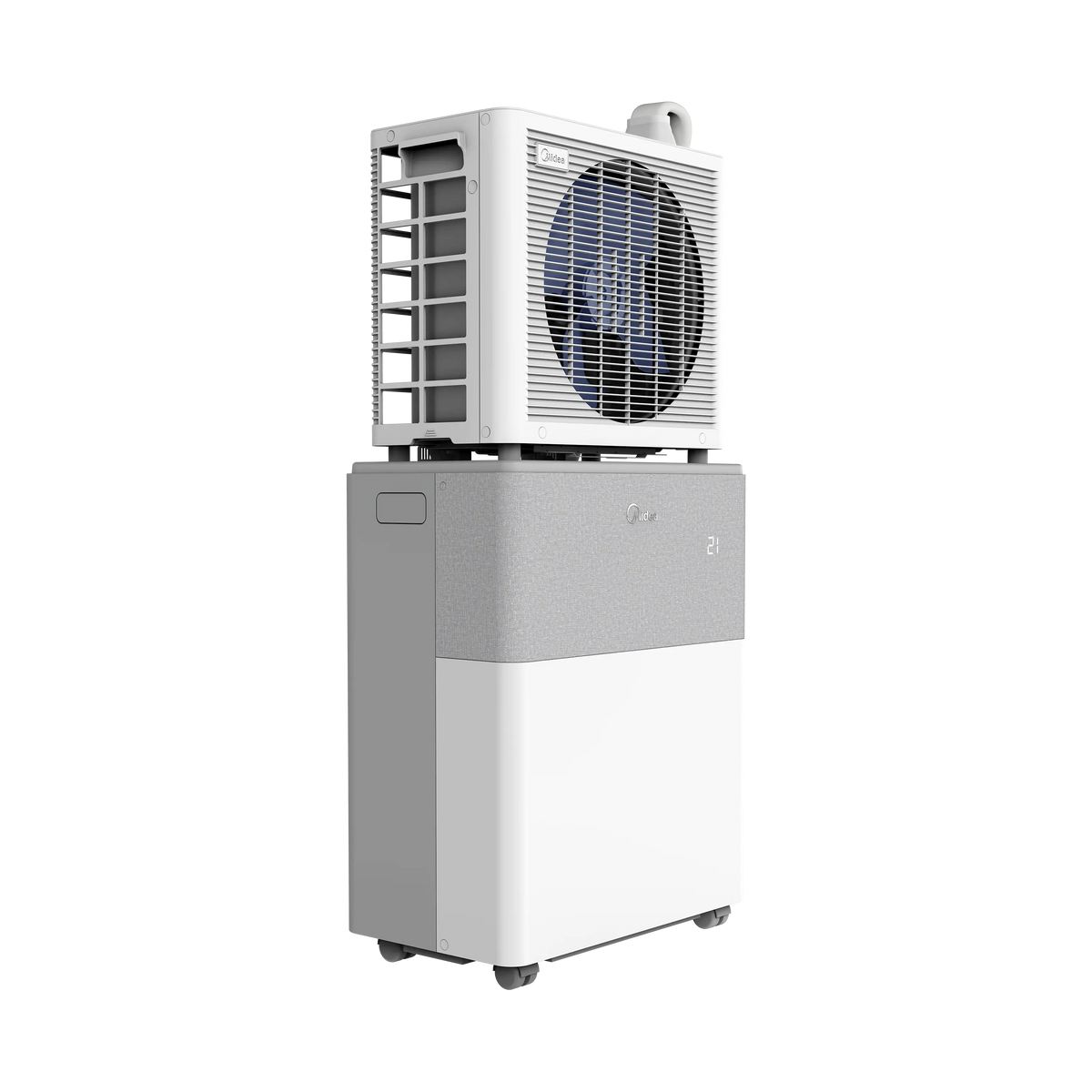

Innovative Portable Split Design: Features separate indoor and outdoor units connected by a flexible 2 m refrigerant pipe, offering the quietness and high efficiency of a built-in split system without requiring permanent structural changes.
-
High Energy Efficiency (A++ / A+): Delivers superior seasonal energy performance with SEER 6.1 (A++) for cooling and SCOP 4.0 (A+) for heating, significantly lowering operational costs compared to traditional single-duct portables.
-
Smart Home Integration: Equipped with built-in Wi-Fi and full compatibility with Google Assistant and Alexa for effortless smartphone and voice control.
-
Low Indoor Noise & Quiet Comfort: By keeping the compressor in the outdoor unit, sound pressure indoors is kept low (only 39 dB(A) in silent mode), making it an excellent choice for bedrooms, home offices, and living spaces.
Click to view or download product document: Manual (PDF)
Detailed Overview of Capabilities and Technological Features
-
All-Year Performance and Climate Control:
-
Heating & Cooling Power: Delivers 12,000 BTU (3.5 kW) cooling capacity and 11,000 BTU (3.2 kW) heating capacity, optimal for rooms from 16 to 23 m².
-
High Airflow Circulation: Multi-speed fan moves up to 420 m³/h of air for fast, effective temperature regulation.
-
-
Smart Operation & Flexible Installation:
-

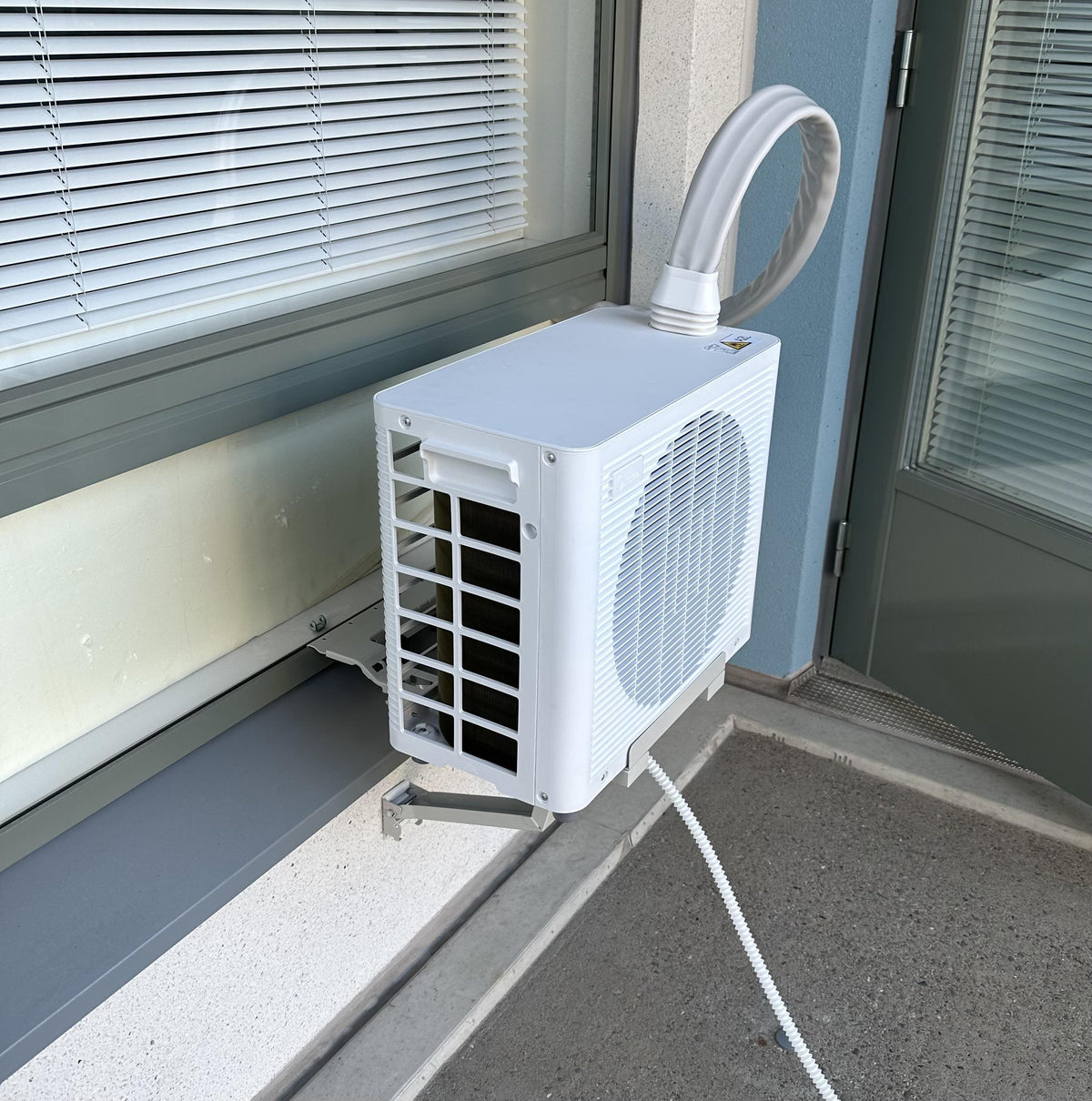

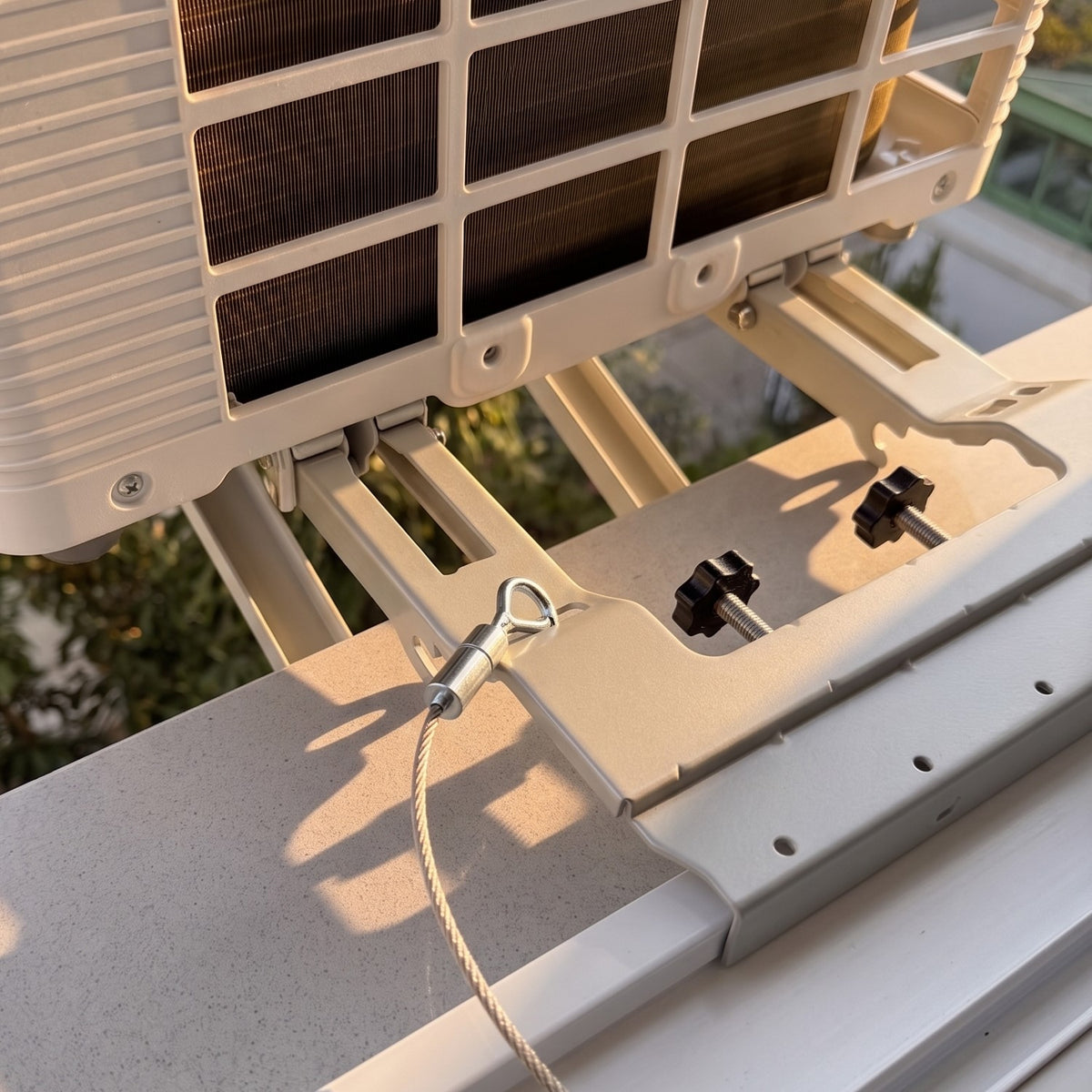

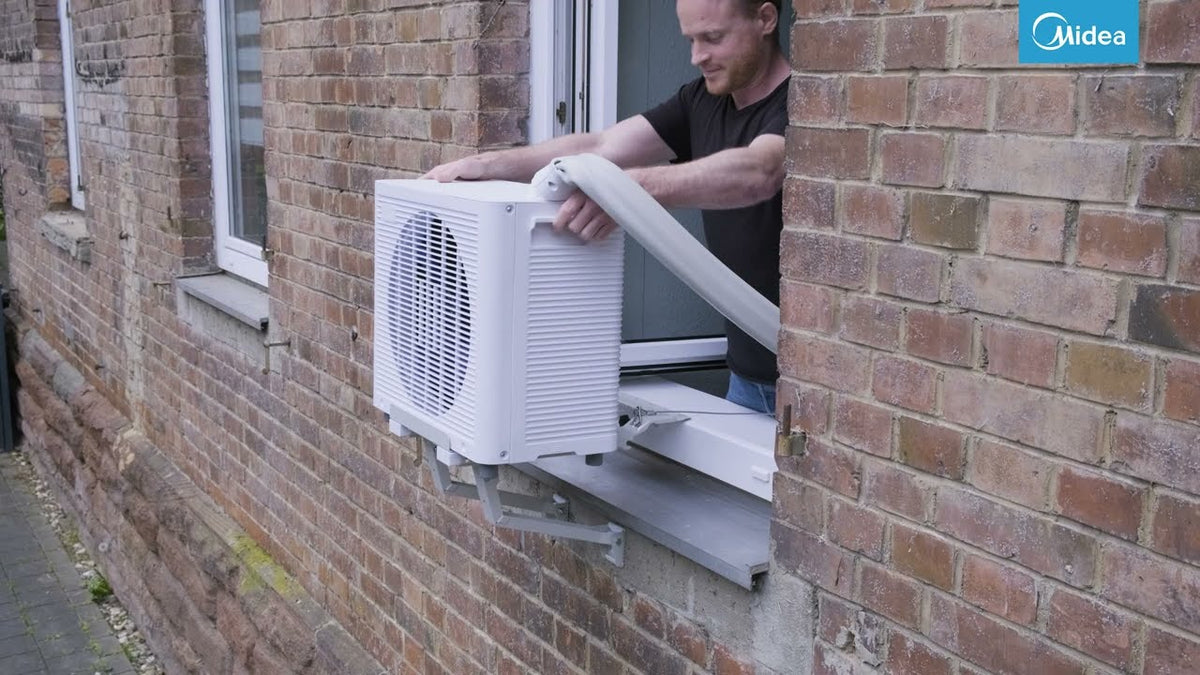

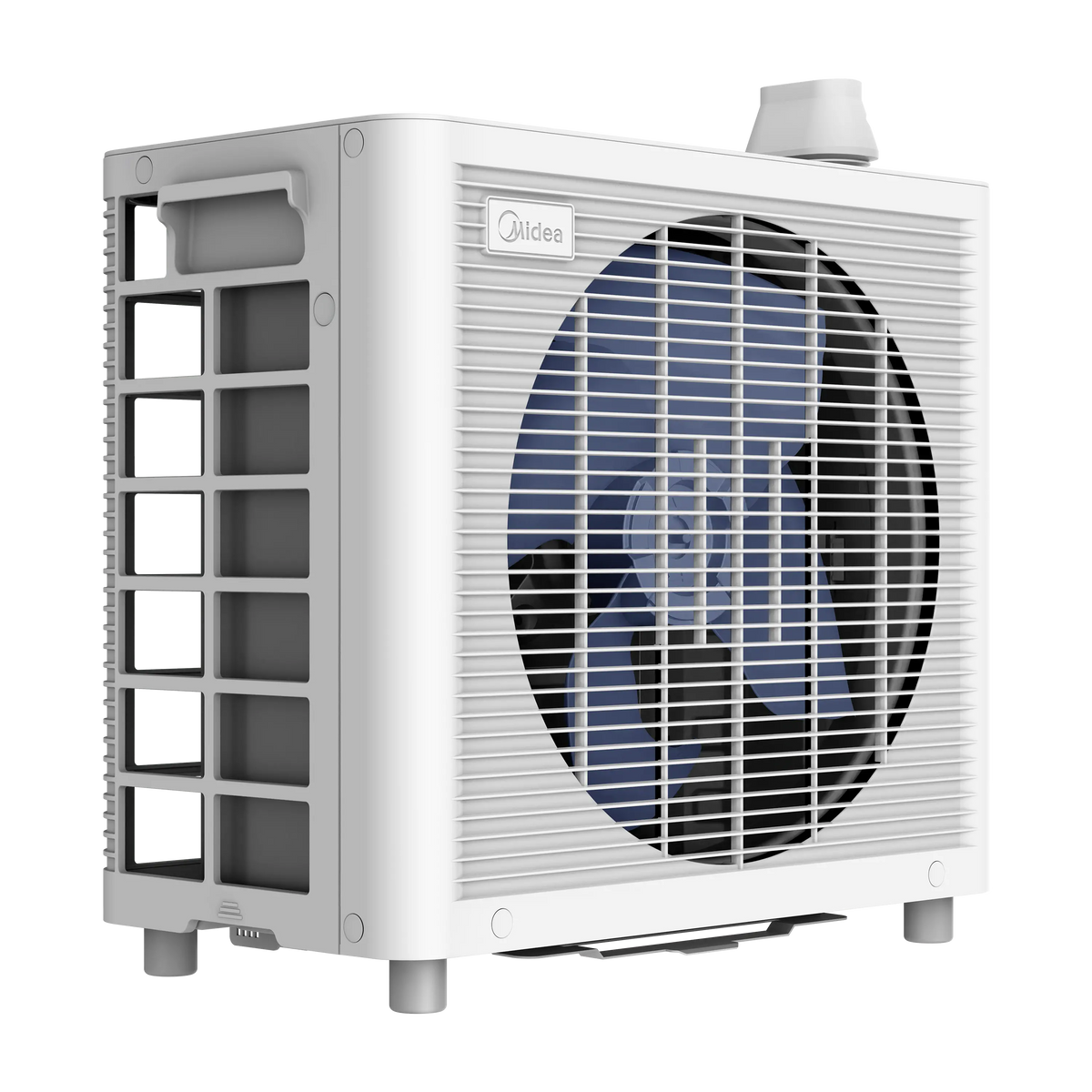

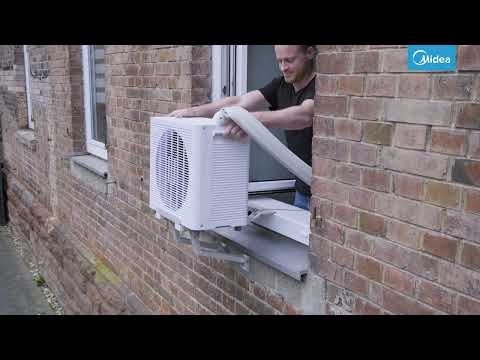

Convenient Outdoor Mounting: Includes a dedicated outdoor unit wall-mounting bracket right in the box for safe and flexible exterior placement.
-
Eco-Friendly R32 Refrigerant: Operates on high-efficiency R32 refrigerant (0.62 kg charge) with low global warming potential.
-
Full Technical Specifications and Features
| Parameter / Feature | Value / Details |
| Model | MMCS-12HRN8-QRD0 |
| System Type | Portable Split Air Conditioner |
| Cooling Capacity | 12,000 BTU/h (3.5 kW) |
| Heating Capacity | 11,000 BTU/h (3.2 kW) |
| Energy Rating | A++ (Cooling) / A+ (Heating) |
| Efficiency Ratings | SEER 6.1 / SCOP 4.0 |
| Recommended Coverage Area | 16 – 23 m² |
| Airflow Rate | 420 / 390 / 350 m³/h |
| Indoor Sound Pressure Level | 49 / 47 / 44 / 39 dB(A) |
| Outdoor Sound Pressure Level | 56 / 48 dB(A) |
| Refrigerant Type | R32 (0.62 kg) |
| Max Connecting Pipe Length | 2 m |
| Power Supply | 220–240 V / 50 Hz |

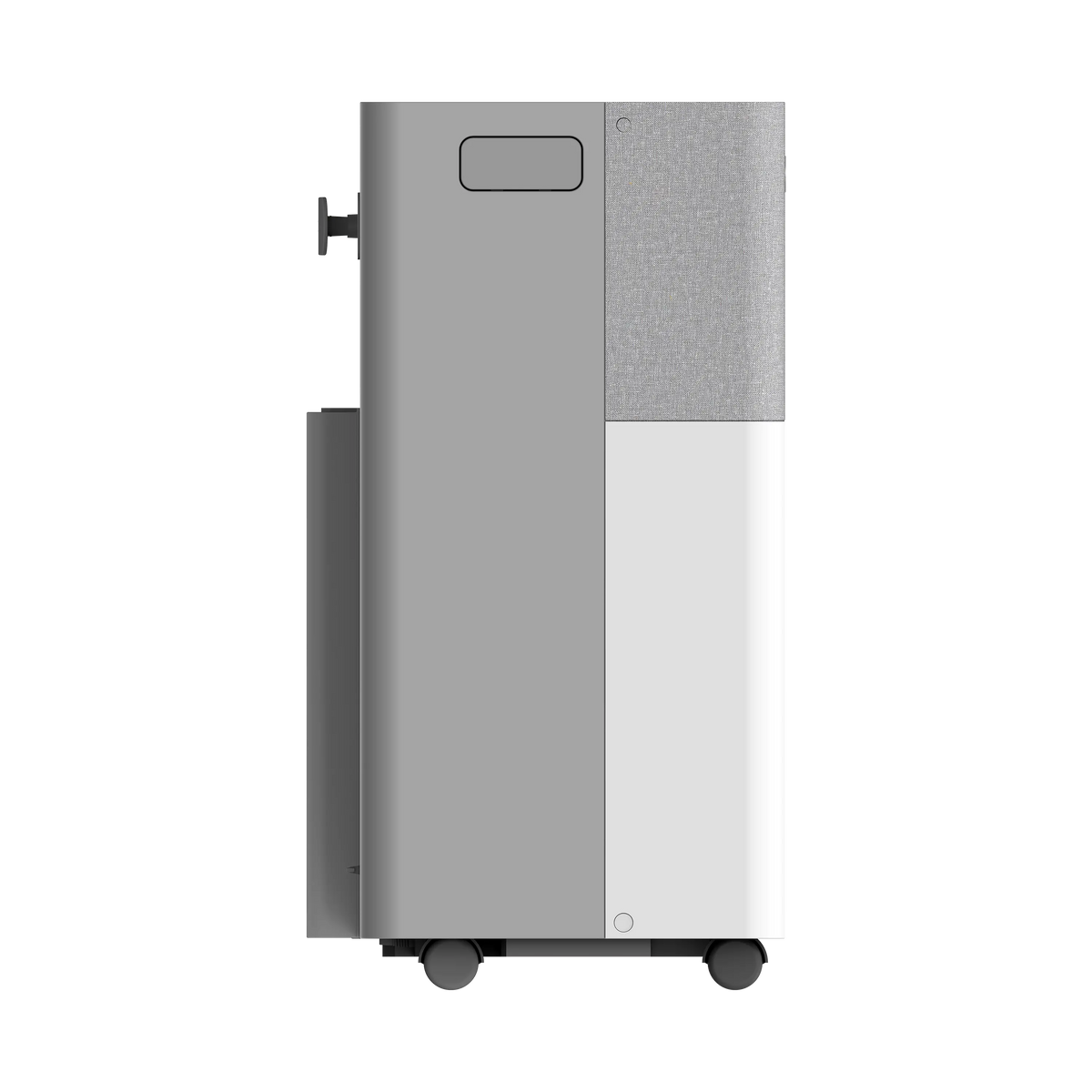

| Indoor Unit Dimensions (W x H x D) | 518 x 646 x 310 mm |

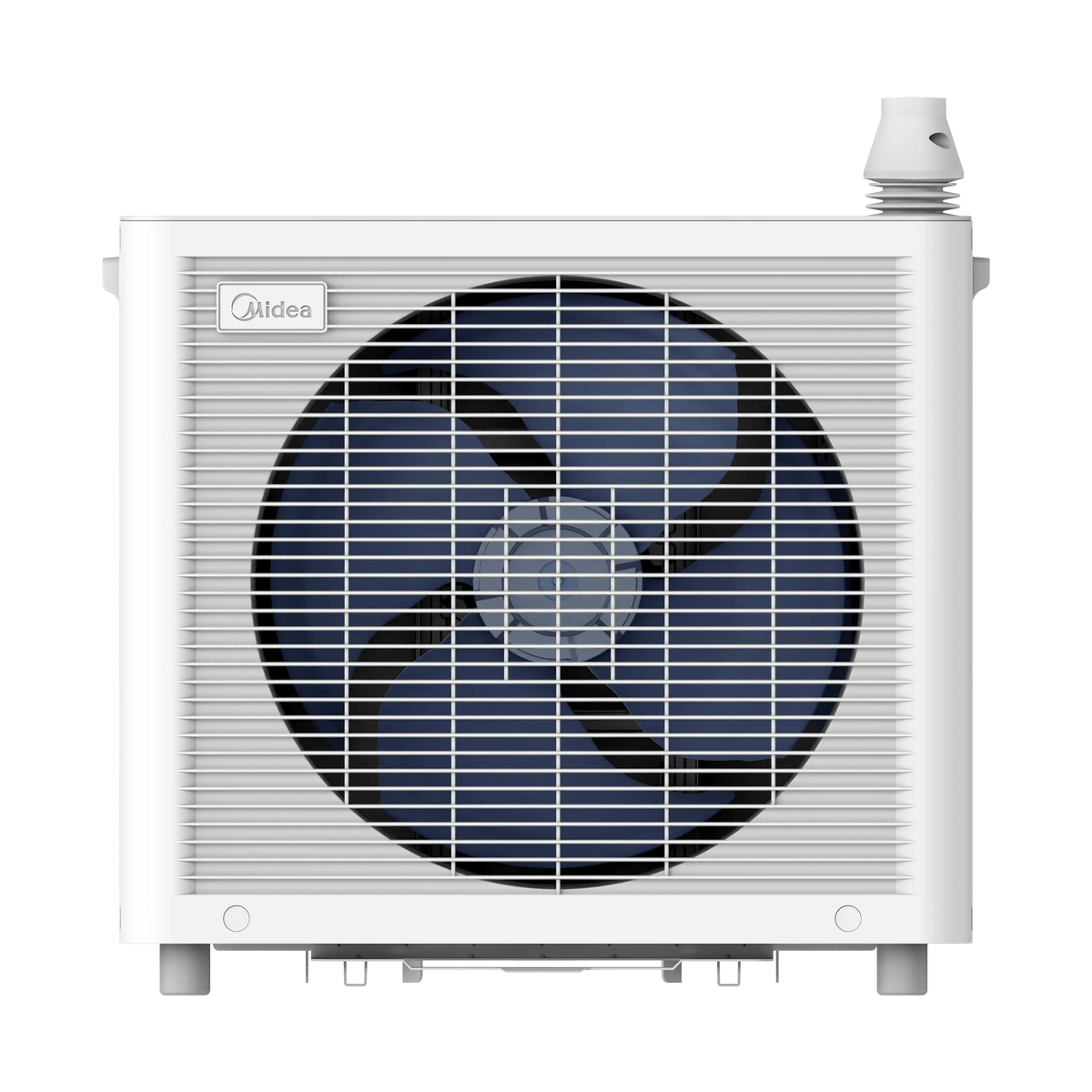

| Outdoor Unit Dimensions (W x H x D) | 498 x 438 x 257 mm |
| Total Weight (Packaged) | 55.5 kg |
| Smart Control | Built-in Wi-Fi (Google Assistant & Alexa compatible) |
| Included Accessories | Outdoor unit wall mounting bracket, connecting pipe (2 m) |
