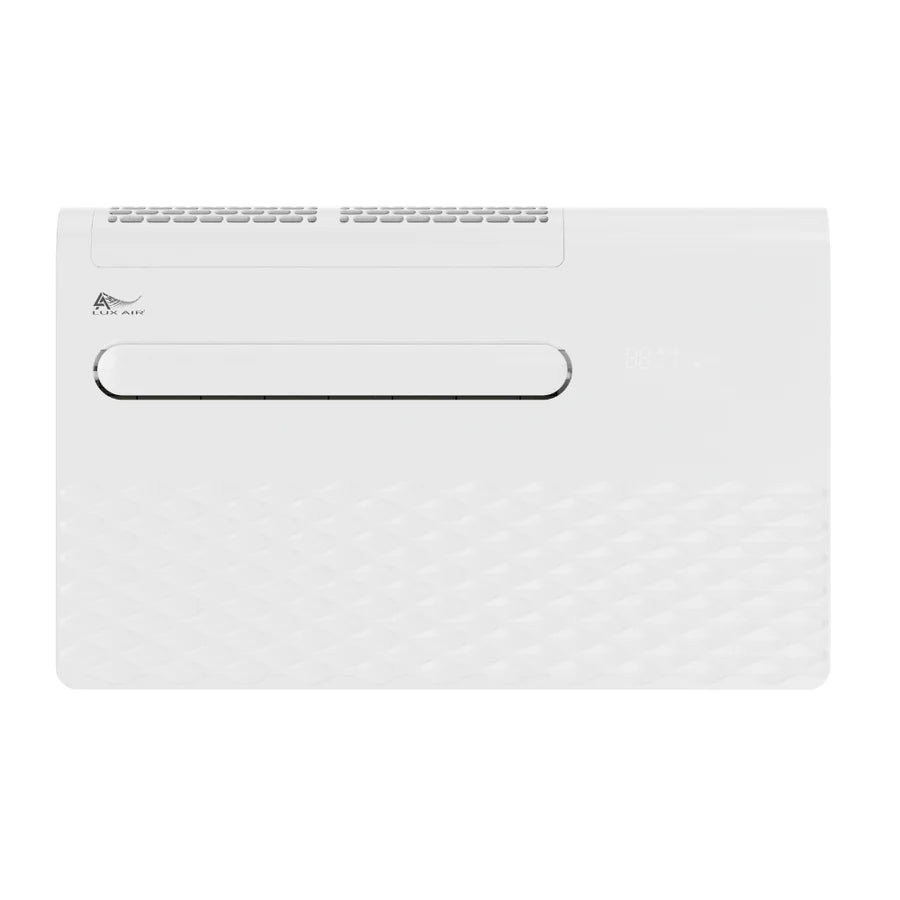

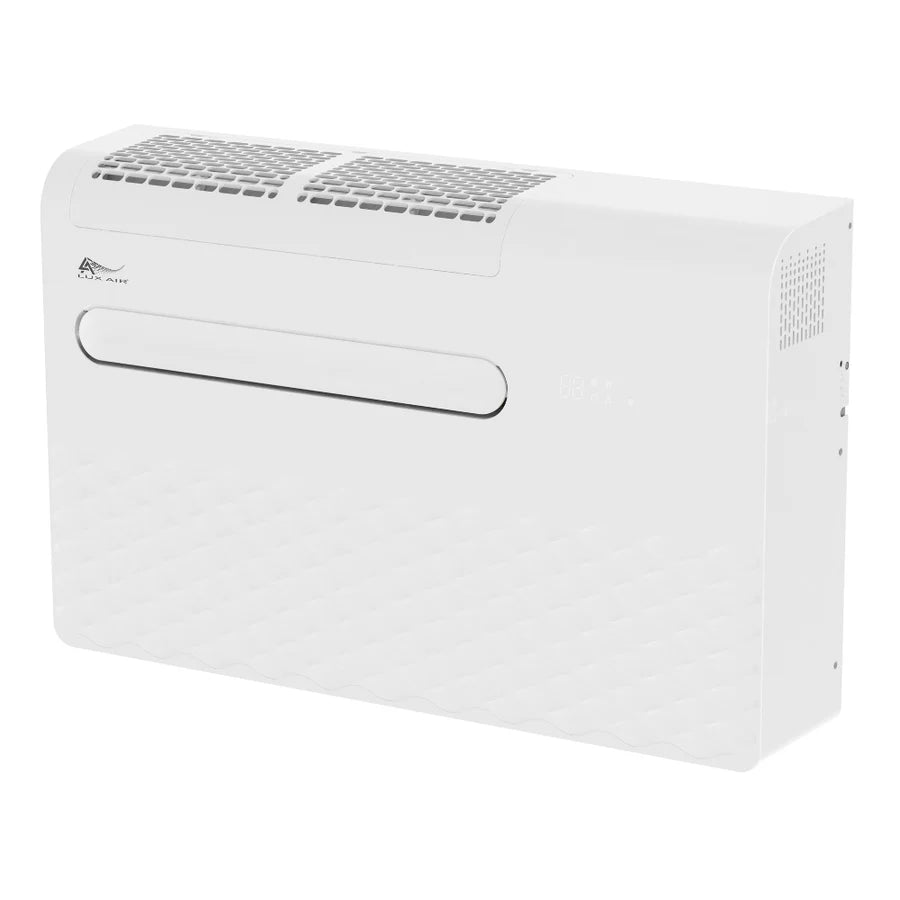

Air Conditioning Centre KFR-28MB/LUX – Smart Monoblock Wall Mounted Air Conditioner Without External Unit
Air Conditioning Centre KFR-28MB/LUX is a high-performance wall mounted air conditioner without external unit, engineered for effective climate control without requiring a bulky outdoor condenser. Using 2 air ducts through two wall holes, this sleek air conditioner without an outdoor unit is the ideal heating and cooling solution for apartments, listed properties, offices, and spaces where external units are restricted or forbidden.
Featuring an advanced inverter compressor, smart WiFi control, and a durable metal housing, the KFR-28MB/LUX provides efficient year-round comfort in a compact indoor footprint.
Key Features & Highlights
-
No Outdoor Unit Required: all components are housed in a single interior wall unit requiring only 2 holes 202 mm through the external wall—preserving external architecture and eliminating complex pipework.
-
Year-Round 3-in-1 Climate Control: provides fast cooling (10,000 BTU / 2.93 kW), energy-efficient heat pump heating (9,000 BTU / 2.64 kW), and powerful dehumidification (1.0 L/h).
-
Energy-Efficient Inverter Technology: continuously adjusts motor speed to maintain target temperatures, lowering electricity bills and reducing overall operating noise.
-
Smart WiFi & Touchscreen Controls: effortlessly adjust temperatures, modes, and timers via smartphone app or the built-in LCD touchscreen panel.
-
Ultra-Quiet Operation & Silent Mode: operates smoothly at standard levels (53 dB) with a dedicated Silent Mode (39 dB) for whisper-quiet nighttime comfort.
-
Low-Maintenance Self-Evaporating System: automatically recycles condensation water during cooling, minimizing manual drainage needs.
-
Extended Warranty Protection: comes with a standard 1-year manufacturer warranty, extendable up to 18 months upon product registration.
VIEW PRODUCT DETAILS – PDF MANUAL
Technical Specifications
| Specification | Details |
| Brand | Air Conditioning Centre |
| Model | KFR-28MB/LUX |
| Product Type | Smart Monoblock Wall Mounted Air Conditioner Without External Unit |
| Functions | Cooling, Heating, Dehumidification |
| Cooling Capacity | 10,000 BTU/h (2.93 kW) |
| Heating Capacity | 9,000 BTU/h (2.64 kW) |
| Power Input (Cooling / Heating) | 1,050 W / 850 W |
| Power Supply | 230V ~ 50Hz |
| Compressor Type | Inverter |
| Coverage Area | 15–20 m² |
| Noise Level (Standard / Silent Mode) | 53 dB(A) / 39 dB(A) |
| Moisture Removal Rate | 1.0 L/h |
| Drainage System | Self-Evaporating |
| Outdoor Unit Needed | No |
| Refrigerant | R290 |
| Core Hole Diameter | 2 x 202 mm |
| Connectivity & Controls | WiFi App, LCD Touchscreen, Remote |
| Housing Construction | Durable Metal Housing & Control Box |
| Dimensions (W × D × H) | 965 × 200 × 615 mm |
| Weight (Net / Gross) | 36.0 kg / 40.0 kg |
| Warranty | 1 Year (Extendable to 18 months with registration) |
Package Contents
-
KFR-28MB/LUX Monoblock Air Conditioner Unit
-
Rear Duct Venting & Wall Mounting Accessories
-
Touchscreen Control & Smart WiFi Setup Guide
-
Warranty Registration Document
-
User & Installation Manual
You can have the all-in-one air conditioner installed by a third-party company (no F-gas certificate required), or make use of our professional installation services.
