INLINE TUBE FAN RUCK EM 355 EC 01
GUARANTEED SAFE CHECKOUT 💳
INLINE TUBE FAN RUCK Etamaster EM 355 EC 01
Ruck ventilators GmbH is a best-known brand in the ventilation industry, known for producing top-quality products that regulate climate and ventilation. Made in Germany.
RUCK EM 355 EC 01 - Up to 3320 m³/h
- Internal electronic temperature control
- Plastic housing
- Integrated electronics
-
EC motor energy efficient (30% less energy is saved in EC over an AC motor)
-
Potentiometer control
- Mixed-Flow impeller with stator
- The benchmark for efficiency since 2012
RUCK EM 355 EC 01 – 355 mm Inline Tube Fan

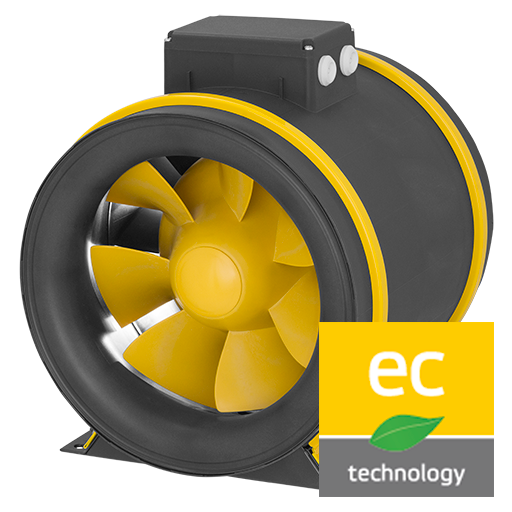

The Ruck ETAMASTER inline tube fan (EM EC series) has an energy-efficient EC motor.
The ETAMASTER EC is designed with a built-in thermal switch to prevent burn out, while also featuring a Mixed-Flow impeller with stator. This combination ensures a low sound level even at high flow rates.
The EM EC series is available with capacities ranging from 190 m³/h to a maximum of 5700 m³/h and with diameters ranging from 100 mm to a maximum of 400 mm respectively.
TECHNICAL DATA
|
Connection diameter |
355 mm |
|
Number of phases |
1~ |
|
Control |
On/Off |
|
Control |
Potentiometer |
|
Type of motor control |
0-10V |
|
Category code |
35 |
|
Capacitor µ |
0 µF |
|
Capacitor Voltage |
0 V |
|
Weight |
8.7 kg |
|
IP Complete Unit |
IPX4 |
|
IP Terminal Box |
IP44 |
|
IP Motor |
IP33 |
|
Insulation Class Motor |
F |
|
Max. Operating Current |
1.82 A |
|
Max. pressure |
450 Pa |
|
Max. Air Volume |
3320 m³/h |
|
Max. Current Consumption |
1.82 A |
|
Max. power consumption |
261 W |
|
Max. Static Efficiency |
53.3 % |
|
Max. allowed Medium Temperature |
35 °C |
|
Max. allowed Medium Temperature at Rated Current |
35 °C |
|
Max. allowed Ambient Temperature |
35 °C |
|
Max. allowed Ambient Temperature at Rated Current |
35 °C |
|
Max. number of revolutions |
2170 1/min |
|
Max. Total Efficiency |
56.5 % |
|
With timer |
No |
|
Min. Operating Temperature |
-30 °C |
|
Motor Protection |
TEC |
|
Motor type |
EC |
|
Nominal frequency |
50 Hz |
|
Rated Speed |
2160 1/min |
|
Nominal power consumption |
261 W |
|
Nominal voltage |
230 V |
|
Nominal current |
1.73 A |
Click for more detail
SPECIFICATIONS.PDF
PRODUCT DATA.PDF
