INLINE TUBE FAN RUCK Etamaster EM 200 E2M 01
Ruck ventilators GmbH is a best-known brand in the ventilation industry, known for producing top-quality products that regulate climate and ventilation. Made in Germany.
RUCK EM 200 E2M 01 - Up to 1220 m³/h
- Innovative, high-efficiency diagonal fan.
- Optimally tuned, CFD-optimized aerodynamics.
- The fan housing is made of high-quality plastic, consists of a mounting bracket for wall or ceiling mounting and a motor. The construction of the housing allows easy disassembly of the motor part by means of clamps.
- The three-dimensional impeller with stator guarantees high airflow and minimal noise, resulting in one of the most efficient designs in its class.
- Maintenance-free AC motor equipped with ball bearings, humidity protection and overheating protection with automatic restart.
- The terminal block is located on the fan housing.
- The fan can be mounted in any position.
- The fan speed is controlled by a three-stage speed switch.
- Conveyed medium temperature up to 60 °C in continuous operation.
- The benchmark for efficiency since 2012.

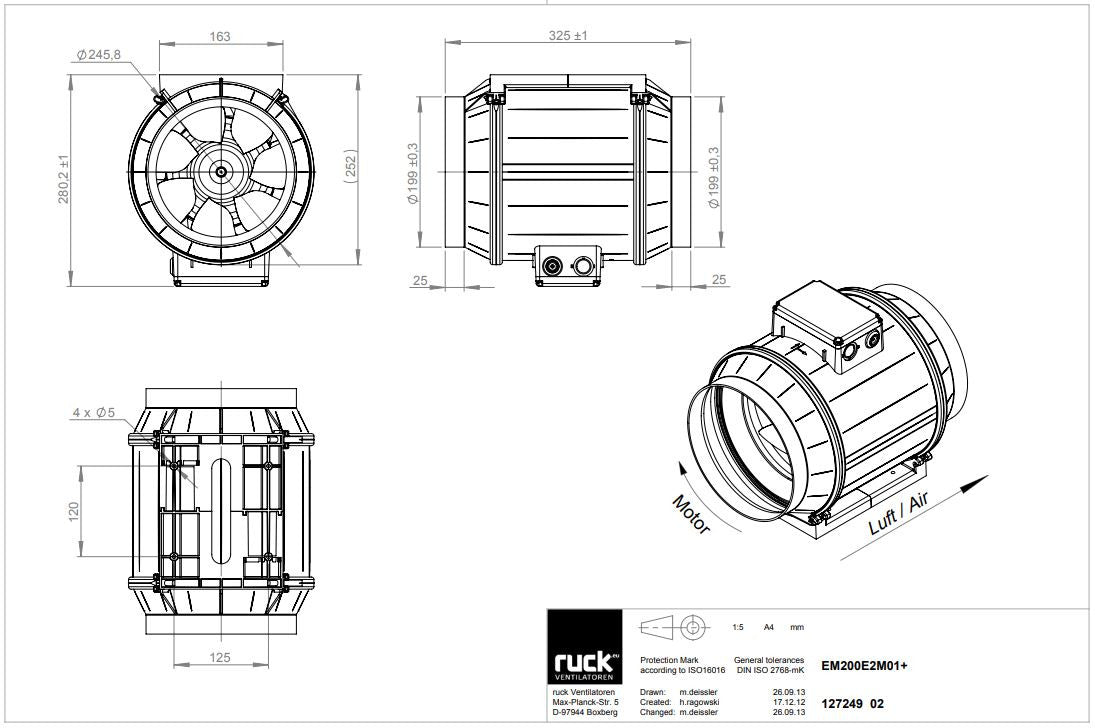

RUCK EM 200 E2M 01 – 200 mm Inline Tube Fan
The fan speed is controlled by a three-stage speed switch or On/Off.
The EM M series is available with capacities ranging from 600 m³/h to a maximum of 3300 m³/h and with diameters ranging from 150 mm to a maximum of 400 mm respectively.
TECHNICAL DATA
|
Connection diameter |
200 mm |
|
Number of phases |
1~ |
|
Number of poles |
2 |
|
Control |
On/Off |
|
Control |
3-position switch |
|
Type of motor control |
36925 |
|
Category code |
35 |
|
Capacitor µ |
3.5 µF |
|
Capacitor Voltage |
450 V |
|
Weight |
3.96 kg |
|
IP Complete Unit |
IPX4 |
|
IP Terminal Box |
IP44 |
|
IP Motor |
IP00 |
|
Insulation Class Motor |
F |
|
Max. Operating Current |
0.58 A |
|
Max. pressure |
360 Pa |
|
Max. Air Volume |
1220 m³/h |
|
Max. Current Consumption |
0.58 A |
|
Max. power consumption |
117 W |
|
Max. Static Efficiency |
40.9 % |
|
Max. allowed Medium Temperature |
60 °C |
|
Max. allowed Medium Temperature at Rated Current |
60 °C |
|
Max. allowed Ambient Temperature |
60 °C |
|
Max. allowed Ambient Temperature at Rated Current |
60 °C |
|
Max. number of revolutions |
2850 1/min |
|
Max. Total Efficiency |
45.5 % |
|
With timer |
No |
|
Min. allowed Voltage |
230 V |
|
Min. Operating Temperature |
-25 °C |
|
Motor Protection |
TAI |
|
Motor type |
1~ |
|
Nominal frequency |
50 Hz |
|
Rated Speed |
2740 1/min |
|
Nominal power consumption |
117 W |
|
Nominal voltage |
230 V |
|
Nominal current |
0.55 A |
|
Blocked current |
0.96 A |
