INLINE DUCT FAN RUCK RS 250L EC K 01

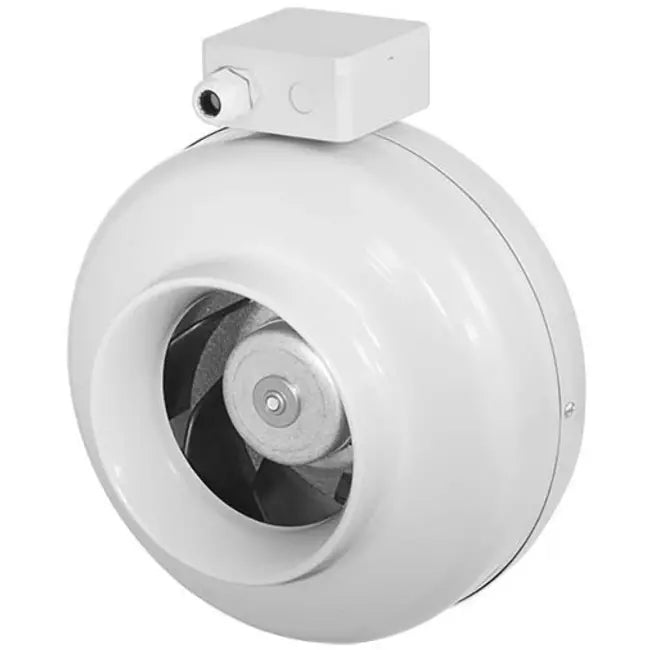

The Ruck RS EC series inline tube fan features an energy-efficient EC motor that can be controlled using a variable Ruck potentiometer (MTP-20) or a 0-10V control system. Designed for direct mounting onto ductwork, it performs best when used with a Ruck fast clamp, which helps minimize vibrations and noise transmission.
To prevent overheating, the RS inline tube fan includes a built-in thermal switch. It also features rearward curved vanes, which enhance efficiency, reduce power consumption, and lower noise levels even under higher pressure conditions. The RS EC series offers airflow capacities ranging from 350 m³/h to 1990 m³/h and comes in diameters from 100 mm to 315 mm.
Ruck Ventilatoren GmbH, a German manufacturer with over 25 years of experience, specializes in energy-efficient EC motor inline fans. With a team of more than 300 employees, the company continuously develops new technologies while maintaining strict quality control in accordance with the latest ERP (Energy Related Product) standards.
RUCK RS 250L EC K 01 - Up to 1280 m³/h
- Compact centrifugal fan
- Backward curved impeller
- Sheet steel housing, RAL 7035, powder coated
- High efficiency EC motor, steplessly controllable
- Internal electronic temperature monitoring
TECHNICAL DATA
| Connection diameter | 250 mm |
| Number of phases | 1~ |
| Control | On/Off |
| Control | Potentiometer |
| Type of motor control | 0-10V |
| Category code | 35 |
| Capacitor µ | 0 µF |
| Capacitor Voltage | 0 V |
| Weight | 5 kg |
| IP Complete Unit | IPX4 |
| IP Terminal Box | IP44 |
| IP Motor | IP33 |
| Insulation Class Motor | F |
| Max. Operating Current | 1.56 A |
| Max. pressure | 540 Pa |
| Max. Air Volume | 1280 m³/h |
| Max. Current Consumption | 1.56 A |
| Max. power consumption | 183 W |
| Max. Static Efficiency | 42.9 % |
| Max. allowed Medium Temperature | 70 °C |
| Max. allowed Medium Temperature at Rated Current | 70 °C |
| Max. allowed Ambient Temperature | 70 °C |
| Max. allowed Ambient Temperature at Rated Current | 70 °C |
| Max. number of revolutions | 2750 1/min |
| Max. Total Efficiency | 43.7 % |
| With timer | No |
| Min. Operating Temperature | -30 °C |
| Motor Protection | TEC |
| Motor type | EC |
| Nominal frequency | 50 Hz |
| Rated Speed | 2740 1/min |
| Nominal power consumption | 183 W |
| Nominal voltage | 230 V |
| Nominal current | 1.49 A |
