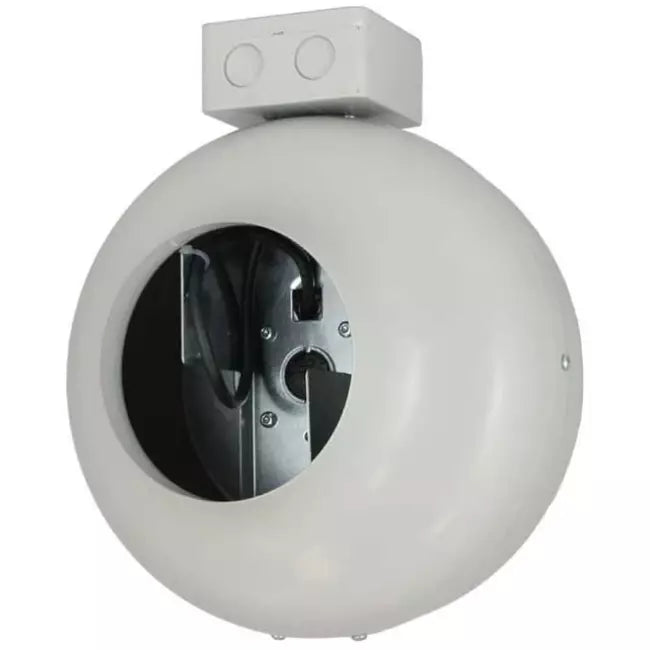

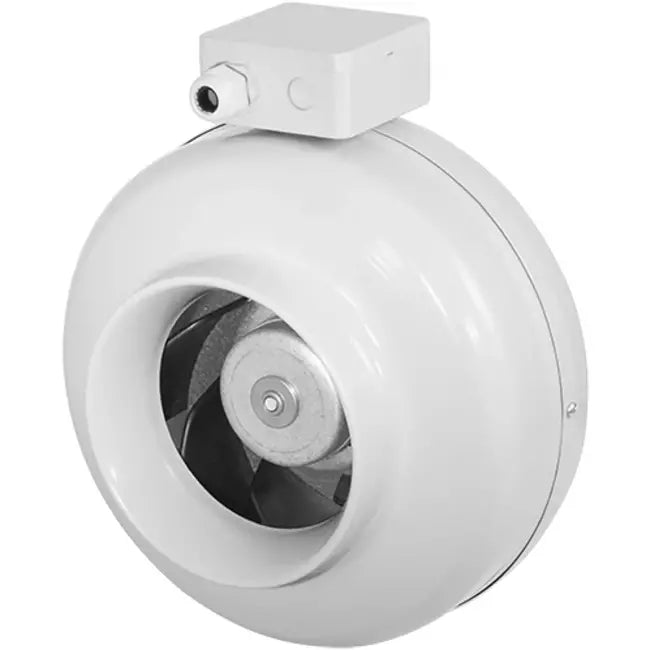

INLINE DUCT FAN RUCK RS 100L 20
The RS series inline tube fan from Ruck® is compatible with either a Ruck® 5-step transformer (TEE015) or electronic variable controls (MTY or ETY) for operation. While the fan can be directly mounted on a tube, it is recommended to use the corresponding Ruck® fast clamp to minimize vibrations and duct noise.
Equipped with built-in thermal protection, the RS inline tube fan features rearward curved vanes, offering higher efficiency, reduced power consumption, and lower noise levels even under higher pressure differentials. The RS series is available in capacities ranging from 240 m3/h to a maximum of 1170 m3/h, with diameters from 100 mm up to 315 mm respectively.
Ruck Ventilatoren GmbH, a leading German company with over 25 years of industry expertise, specializes in energy-efficient inline tube fans. With a dedicated team of more than 300 employees, they focus daily on advancing new technologies and innovations. The company emphasizes quality assurance to meet the latest ERP (Energy Related Product) standards, ensuring top-notch product delivery.
RUCK RS 100L 20 - Up to 250 m³/h
- Compact centrifugal fan

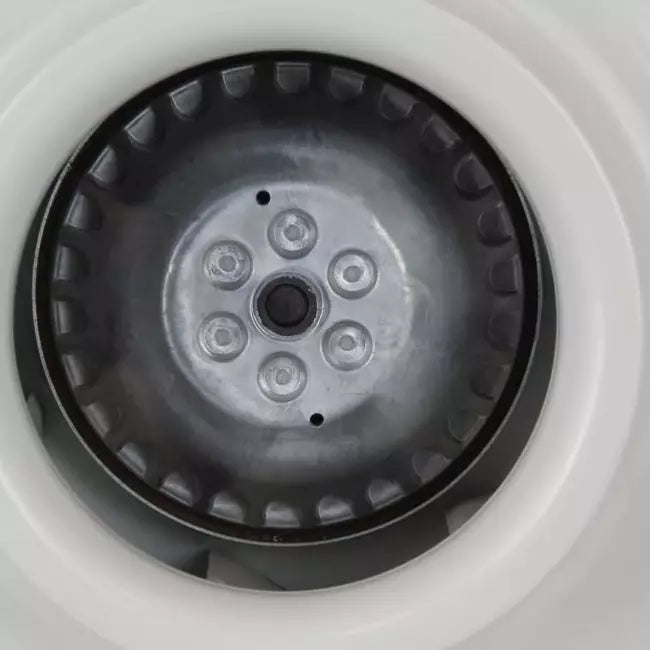

- Backward curved impeller

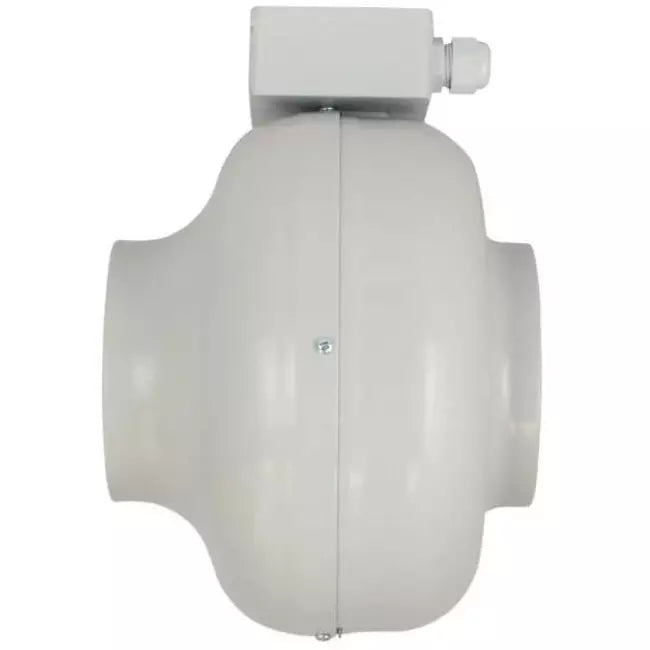

- Sheet steel housing, RAL 7035, powder coated

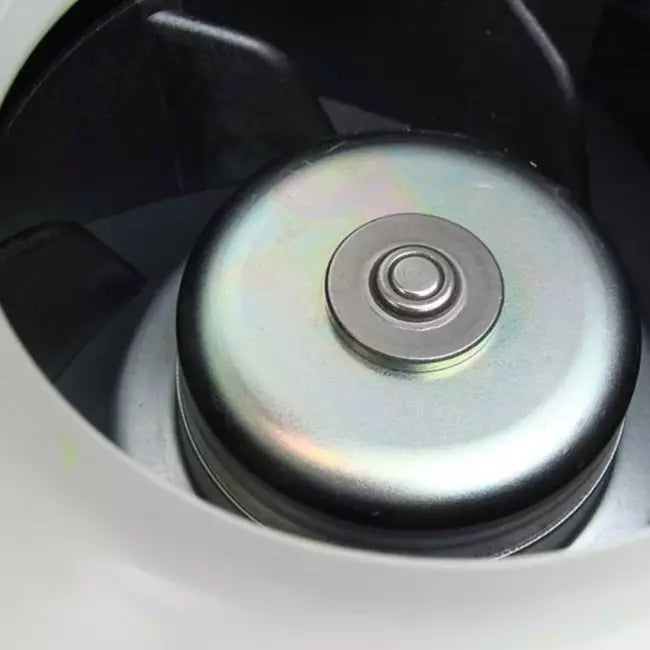

- Robust single phase AC motor, steplessly controllable
- Integrated thermal switch
TECHNICAL DATA

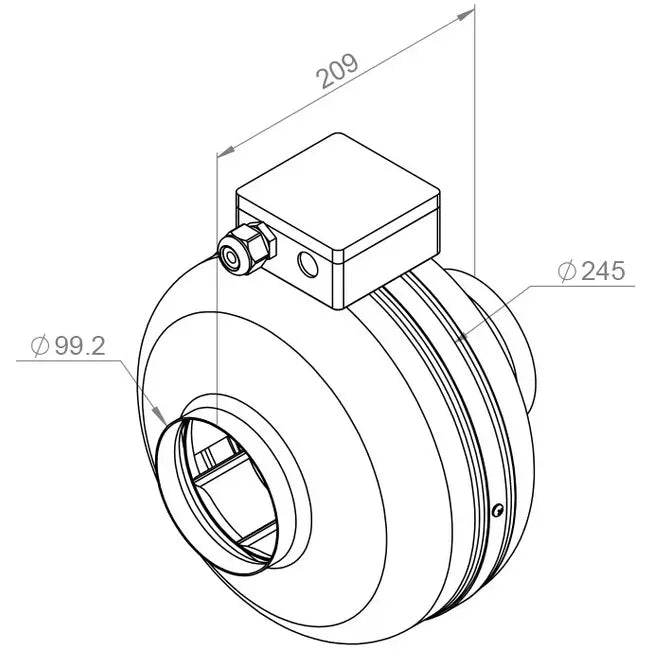

| Connection diameter | 100 mm |
| Number of phases | 1~ |
| Number of poles | 2 |
| Control | On/Off |
| Control | Transformer |
| Type of motor control | V |
| Category code | 35 |
| Capacitor µ | 1.5 µF |
| Capacitor Voltage | 400 V |
| Weight | 2.8 kg |
| IP Complete Unit | IPX4 |
| IP Terminal Box | IP44 |
| IP Motor | IP33 |
| Insulation Class Motor | F |
| Max. Operating Current | 0.2 A |
| Max. pressure | 235 Pa |
| Max. Air Volume | 250 m³/h |
| Max. Current Consumption | 0.2 A |
| Max. power consumption | 28 W |
| Max. Static Efficiency | 17.6 % |
| Max. allowed Medium Temperature | 60 °C |
| Max. allowed Medium Temperature at Rated Current | 60 °C |
| Max. allowed Ambient Temperature | 60 °C |
| Max. allowed Ambient Temperature at Rated Current | 60 °C |
| Max. number of revolutions | 2710 1/min |
| Max. Total Efficiency | 19.2 % |
| With timer | No |
| Min. allowed Voltage | 80 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TAI |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 2390 1/min |
| Nominal power consumption | 28 W |
| Nominal voltage | 230 V |
| Nominal current | 0.2 A |
| Blocked current | 0.3 A |
