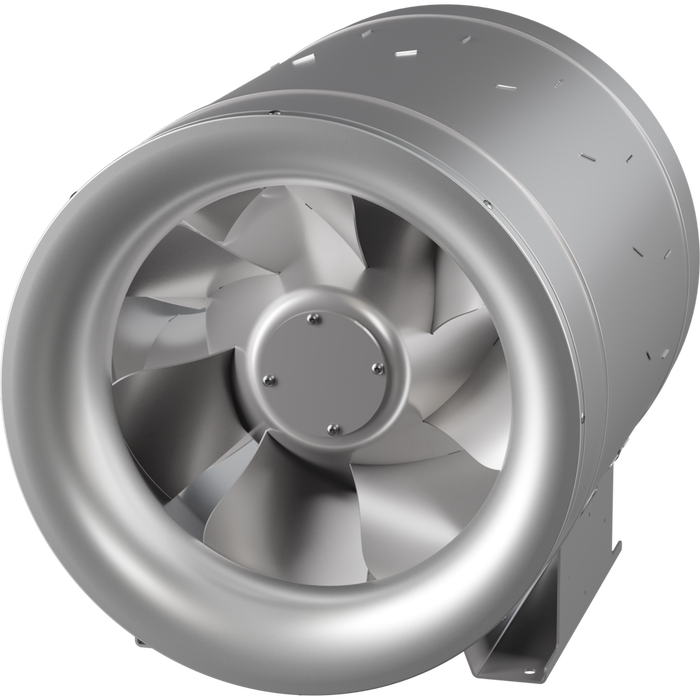

INLINE DUCT FAN RUCK EL 450 EC K 01
The Ruck® Etaline inline tube fan (EL EC series) features an energy-efficient EC motor with variable speed control. It includes mounting brackets and can be directly attached to a tube, though using a Ruck® fast clamp is recommended to minimize vibrations and noise.
This fan is 50% more efficient than standard inline tube fans and has a built-in thermal switch to prevent overheating. The Mixed-Flow impeller with stator ensures low noise even at high flow rates. The EL EC series offers capacities from 7300 m³/h to 20200 m³/h, with diameters ranging from 400 mm to 710 mm.
Ruck Ventilatoren GmbH, a German company with over 25 years of experience, specializes in energy-efficient inline tube fans. With a team of more than 300 employees, they focus on continuous innovation and quality assurance, meeting the latest ERP (Energy Related Product) standards.
RUCK EL 450 EC K 01 - Up to 7490 m³/h
- Innovative, high-efficiency diagonal fan
- Optimally tuned, CFD-optimized aerodynamics
- The benchmark for efficiency since 2007
- High efficiency EC motor, steplessly controllable
- Housing made of aluminum
TECHNICAL DATA
| Number of phases | 1~ |
| Type of motor control | 0-10V |
| Category code | 35 |
| Weight | 18.2 kg |
| IP Motor | IP55 |
| Insulation Class Motor | F |
| Max. Operating Current | 8.2 A |
| Max. pressure | 880 Pa |
| Max. Air Volume | 7490 m³/h |
| Max. Current Consumption | 8.2 A |
| Max. power consumption | 1144 W |
| Max. Static Efficiency | 64.5 % |
| Max. allowed Medium Temperature | 60 °C |
| Max. allowed Medium Temperature at Rated Current | 60 °C |
| Max. allowed Ambient Temperature | 60 °C |
| Max. allowed Ambient Temperature at Rated Current | 60 °C |
| Max. number of revolutions | 2100 1/min |
| Max. Total Efficiency | 69.2 % |
| Min. Operating Temperature | -20 °C |
| Motor Protection | TEC |
| Motor type | EC |
| Nominal frequency | 50 Hz |
| Rated Speed | 2100 1/min |
| Nominal power consumption | 1144 W |
| Nominal voltage | 230 V |
| Nominal current | 7.8 A |
