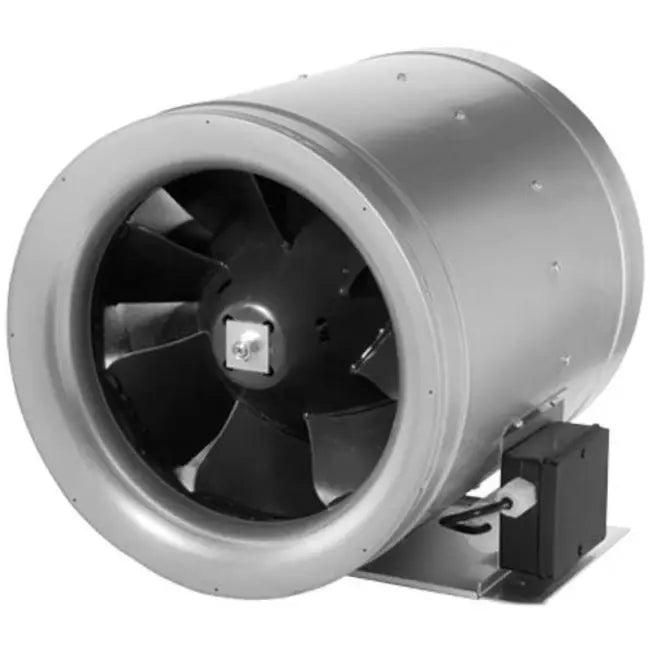

INLINE DUCT FAN RUCK EL 355 E2 01
The Ruck® ETALINE inline tube fan (EL E series) features a voltage-controllable, energy-efficient motor designed for use with a Ruck® 5-step transformer. It comes with mounting brackets for direct attachment to a tube, though for optimal performance, the use of a Ruck® fast clamp is recommended to minimize noise and vibrations in the duct system.
This high-performance fan is 50% more energy-efficient than comparable inline tube models and includes a built-in thermal switch to prevent overheating. Equipped with a Mixed-Flow impeller and stator, it maintains a low noise level even at high airflow rates. The EL E series offers airflow capacities ranging from 770 m³/h to 13,940 m³/h, with diameters between 150 mm and 630 mm.
Ruck ventilatoren GmbH is a German manufacturer with over 25 years of expertise in energy-efficient ventilation technology. As an industry leader in controllable voltage inline fans, the company employs more than 300 specialists dedicated to continuous innovation. Their production meets the latest ERP (Energy Related Product) standards, ensuring high-quality, reliable solutions.
RUCK EL 355 E2 01 - Up to 4940 m³/h
- Including mounting brackets
- Built-in thermal switch
- With adjustable speed
- Metal housing, galvanised
- Mixed-Flow impeller with stator
TECHNICAL DATA
| Connection diameter | 355 mm |
| Number of phases | 1~ |
| Number of poles | 2 |
| Control | On/Off |
| Control | Transformer |
| Type of motor control | V |
| Category code | 35 |
| Capacitor µ | 22 µF |
| Capacitor Voltage | 400 V |
| Weight | 17.3 kg |
| IP Terminal Box | IP44 |
| IP Motor | IP00 |
| Insulation Class Motor | F |
| Max. Operating Current | 5.4 A |
| Max. pressure | 930 Pa |
| Max. Air Volume | 4940 m³/h |
| Max. Current Consumption | 5.4 A |
| Max. power consumption | 960 W |
| Max. Static Efficiency | 50.5 % |
| Max. allowed Medium Temperature | 45 °C |
| Max. allowed Medium Temperature at Rated Current | 75 °C |
| Max. allowed Ambient Temperature | 45 °C |
| Max. allowed Ambient Temperature at Rated Current | 75 °C |
| Max. number of revolutions | 2860 1/min |
| Max. Total Efficiency | 54.8 % |
| With timer | No |
| Min. allowed Voltage | 80 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TMI |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 2770 1/min |
| Nominal power consumption | 960 W |
| Nominal voltage | 230 V |
| Nominal current | 4.25 A |
| Blocked current | 9 A |
