Icon Fires Slimline Burner - 110 cm

Slimline burner 110 cm

The SB1100 BIO-70-215 is a big and extraordinary bioethanol burner, in a sleek, outer-edged design that is made for immersion or building into the narrow walls. This SB1100 burner is perfect for building projects. The temperature and the beautiful flames can be adjusted according to your own preferences. Icon Fires is a reputable manufacturer in the market for luxurious bioethanol fireplaces of the highest quality, and the company's collection of Slimline burners is no exception. The Icon Slimline SB1100 is the second-largest model in the series of slim burners from Icon Fires. Despite its slender appearance, the burner can impressively produce beautiful and authentic flames, emitting pleasant warmth. The Icon Slimline SB1100 burner can hold up to 6.25 liters of bioethanol when filled, providing up to 9 hours of burning time. Additionally, the burner is equipped with an adjustable flame function, allowing manual control over the flame size, the amount of bioethanol used, and the heat generated. The burner delivers a nice and cosy heat at a level of 7,7 kW.

Installation of the Slimline 1100 burner

• Create a recess for the burner to sit in and let it rest on the edge around the top of the burner.
• Remove the top frame and ensure that the surface of the burner is level with the bottom of your bio fireplace.

Highlighted features

• Burning time: 9 hours
• Capacity: 6.25 liters
• Heat output: max 7.7 kW
• Consumption: 0.9 L/h
• Does not require a chimney

These luxury bioethanol burners are high standard ones, with advanced technology in performance, functionality and design. This is what makes Icon Fires one of the bioethanol fireplace market's leading companies.

Refer to the user guide below this text in PDF format for further information and installation instructions for the burner.

Burner

• Capacity – 6.25 Litres
• Flue/chimney – Not Required
• Remote control – No
• Burner type – Icon Fires Slimline 1100
• Requires electricity – No
• Burn time – 9 hours
• Adjustable flame – Yes
• Control – Manual
• Usage – 0.9 L/h
• Heat output (max) – 7.7 kW
• Fuel – Bioethanol

Type

• Product type – Manual Bioethanol Burner
• Brand – Icon Fires
• Use – Indoor
• Flame view – Front
• Warranty – 2 years
• Made in Spain

Appearance

• Materials – Stainless Steel
• Colour – Stainless Steel
• Shape – Rectangular
• Glass included – No

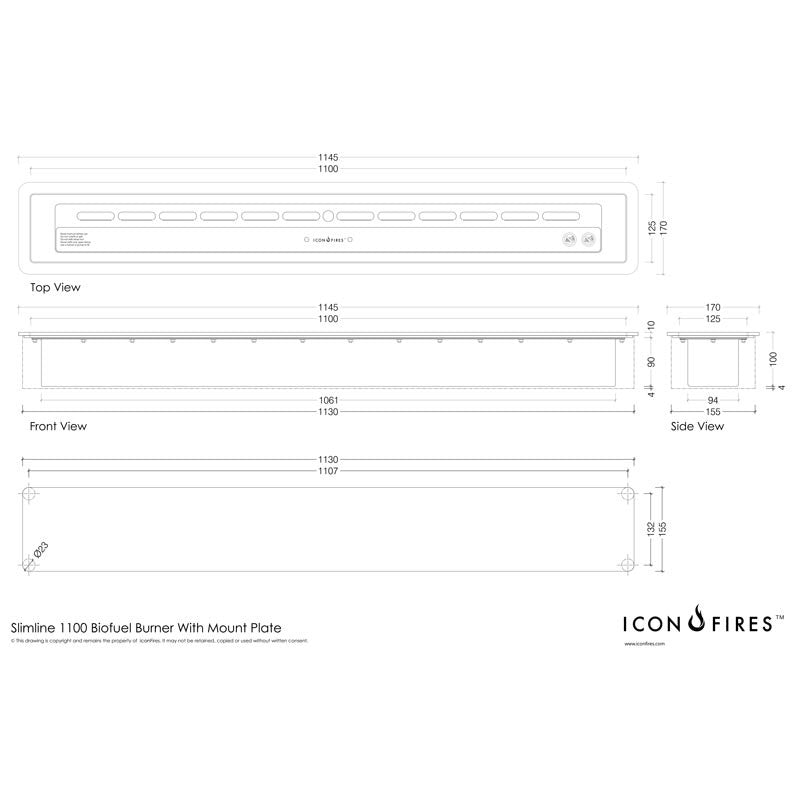

Size

• Length/Width – 114.5 cm
• Height – 10 cm
• Depth – 17 cm
• Weight – 21.5 kg
