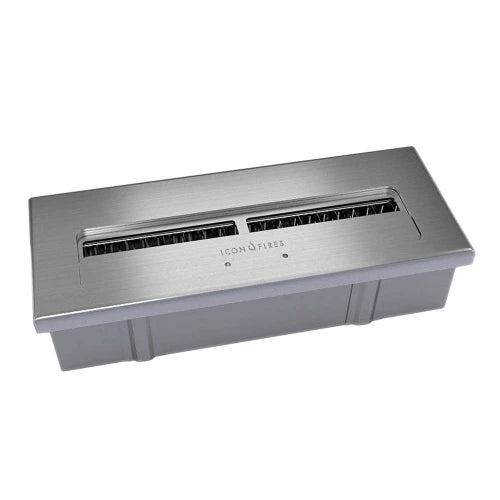

Icon Fires IFMB614 — Built-in Mid Burner (62.4 cm, Stainless Steel)
Icon Fires IFMB614 (Mid Burner 614) is a versatile, high-capacity manual bioethanol burner crafted in Spain from premium stainless steel. Measuring 62.4 cm in length with a depth of 25.4 cm, it is designed as a high-performance core for custom built-in fireplace projects, media walls, furniture integrations, or converting existing open fireplaces to clean bioethanol operation.
Equipped with a high-volume fuel reservoir and adjustable flame slider, it provides a vivid visual fire display alongside powerful supplementary heat output—without requiring a chimney, flue, or electrical connection.
Spanish Design & Functional Performance
-
Refined Architectural Design: Built from heat-resistant brushed stainless steel for long-lasting durability and a sleek, modern finish.
-
Versatile Built-in Applications: Ideal for custom builds, wall cutouts, or retrofitting traditional open fireplaces.
-
Adjustable Flame Mechanism: Manual regulator slider allows complete control over flame height, heating intensity, and fuel consumption.
-
Extended Burn Time: Holds up to 7.7 liters of bioethanol fuel, delivering up to 10 hours of continuous burn time on a single refill (~0.75 L/h consumption rate).
-
Significant Localized Heat Output: Generates up to 6.5 kW, providing substantial supplementary heat and ambient warmth to surrounding indoor spaces.
-
No Chimney Required: Uses clean-burning bioethanol fuel that produces no smoke, soot, or ash, making flue or gas line connections unnecessary.
Key Features
-
Premium Spanish-designed bioethanol burner in high-grade stainless steel.
-
High thermal output (up to 6.5 kW) for effective localized warmth.
-
Long burn time of up to 10 hours with a large 7.7 L tank capacity.
-
Manual flame control mechanism to adjust fire height and heat level.
-
Fully autonomous operation—no electricity, chimney, or gas line required.
-
Includes an electronic refilling pump for fast, safe, and clean fuel transfers.
-
Backed by a 2-Year Manufacturer Warranty.
Technical Specifications
| Specification | Details |
| Brand | Icon Fires |
| SKU | BIO-70-227 |
| Supplier Item Number | IFMB614 |
| Product Type | Built-in Bioethanol Mid Burner |
| Design Country | Spain |
| Shape | Rectangular |
| Dimensions (W × H × D) | 62.4 cm × 13.6 cm × 25.4 cm |

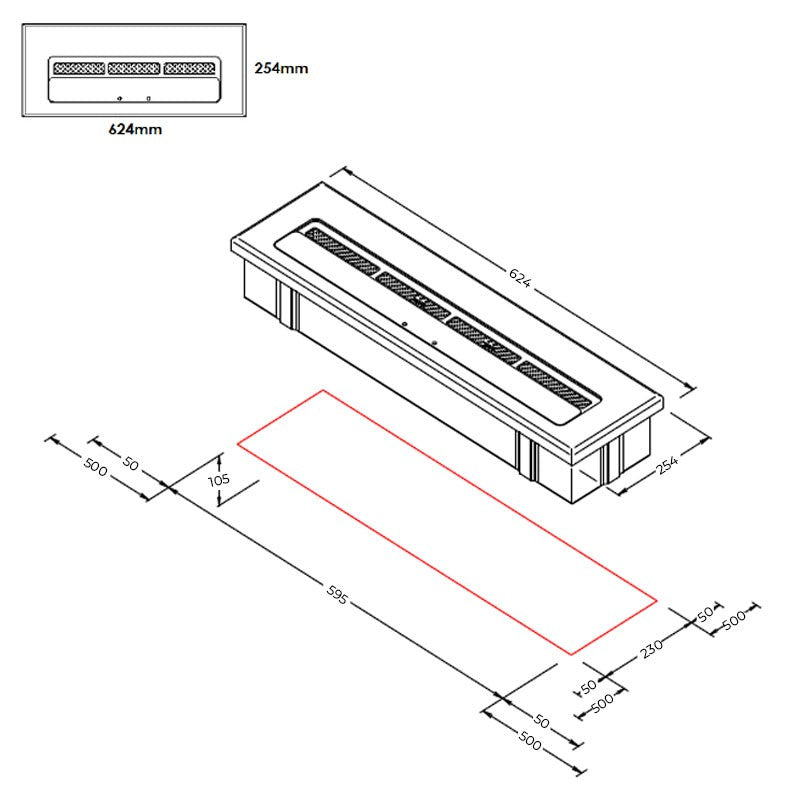

| Recess / Cutout Size (W × H × D) | 59.5 cm × 10.5 cm × 23.0 cm |
| Packaging Depth / Weight | 34.0 cm / 17.0 kg |
| Material & Finish | Stainless Steel / Brushed Finish |
| Color | Stainless Steel |
| Fuel Type | Bioethanol |
| Fuel Capacity | 7.7 Liters |
| Fuel Consumption Rate | Approx. 0.75 L/h |
| Burn Time | Up to 10 Hours |
| Heat Output (Max) | 6.5 kW (Supplementary Heat) |
| Flue / Chimney Required | No |
| Electricity Required | No (Manual operation) |
| Adjustable Flame | Yes |
| Glass Included | No |
| Usage | Indoor (Requires a ventilated room) |
| Warranty | 2 Years |
Package Contents
-
Icon Fires IFMB614 Stainless Steel Mid Burner (7.7 L)
-
Electronic Bioethanol Fuel Pump
-
Flame Adjustment & Extinguishing Control Tool
-
User & Installation Manual
Click for More Information:
User Manual (PDF)
Technical Data (PDF)
