Helty FlowULTRA (Enthalpy) Decentralised Heat Recovery Unit | Compact wall ventilation System

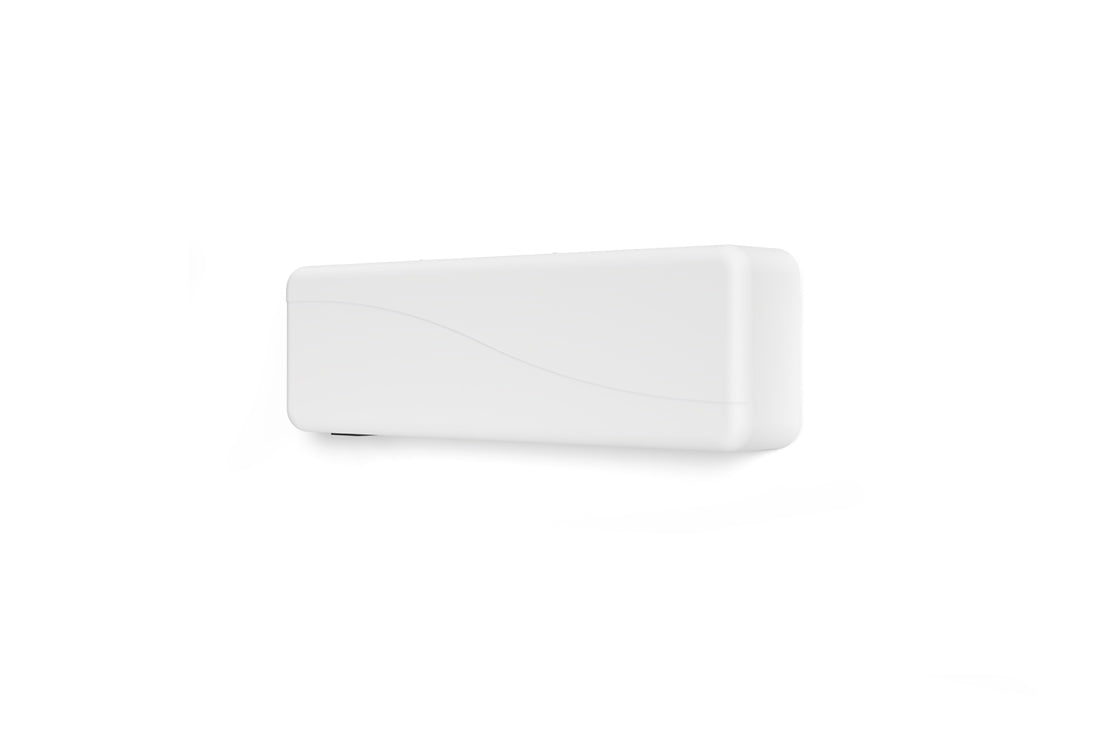

Helty FlowULTRA (Enthalpy) Wall-Mounted MVHR Ventilation Unit

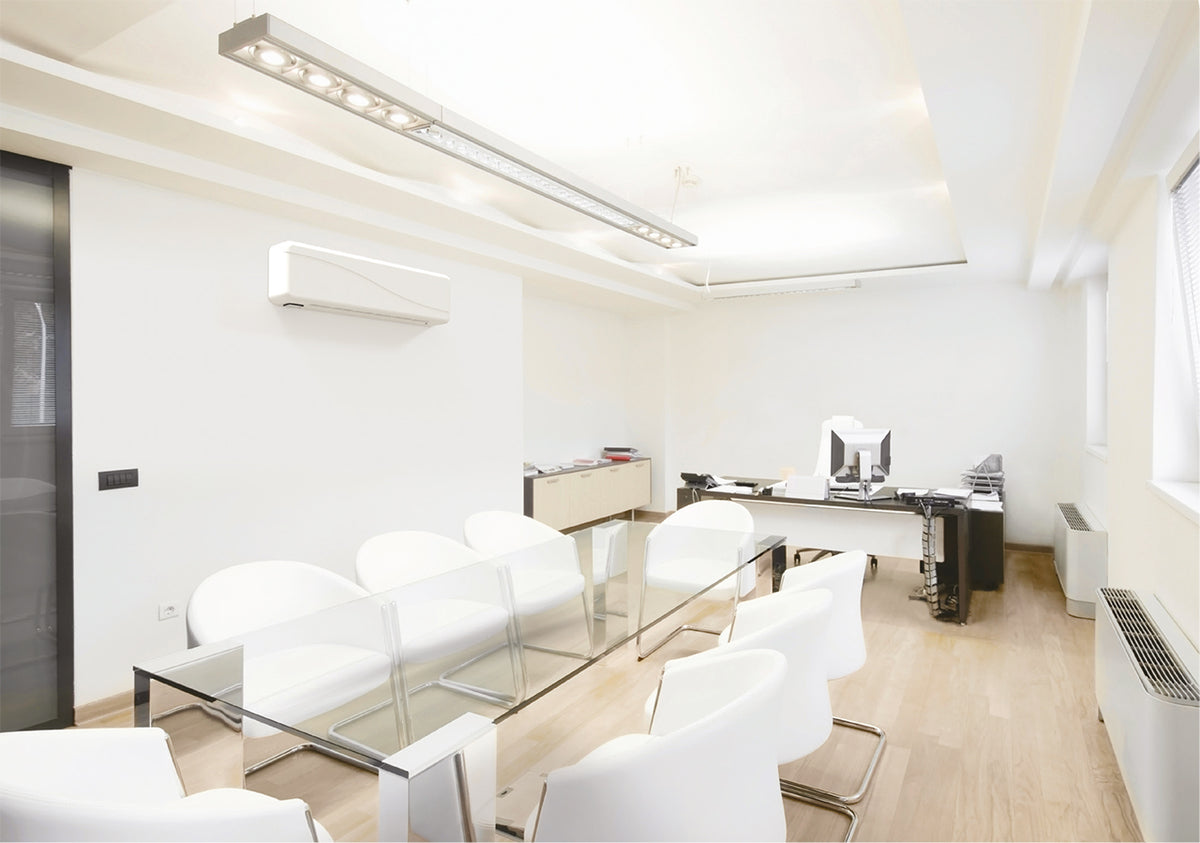

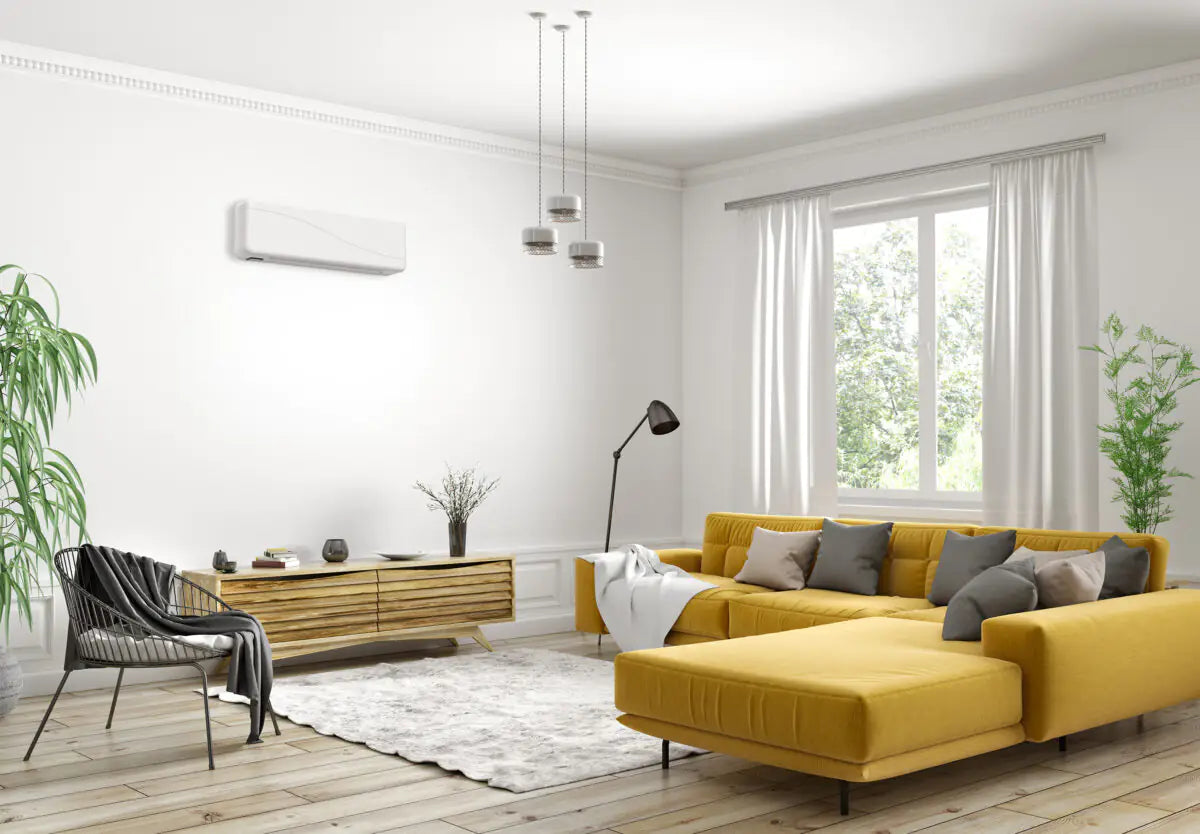

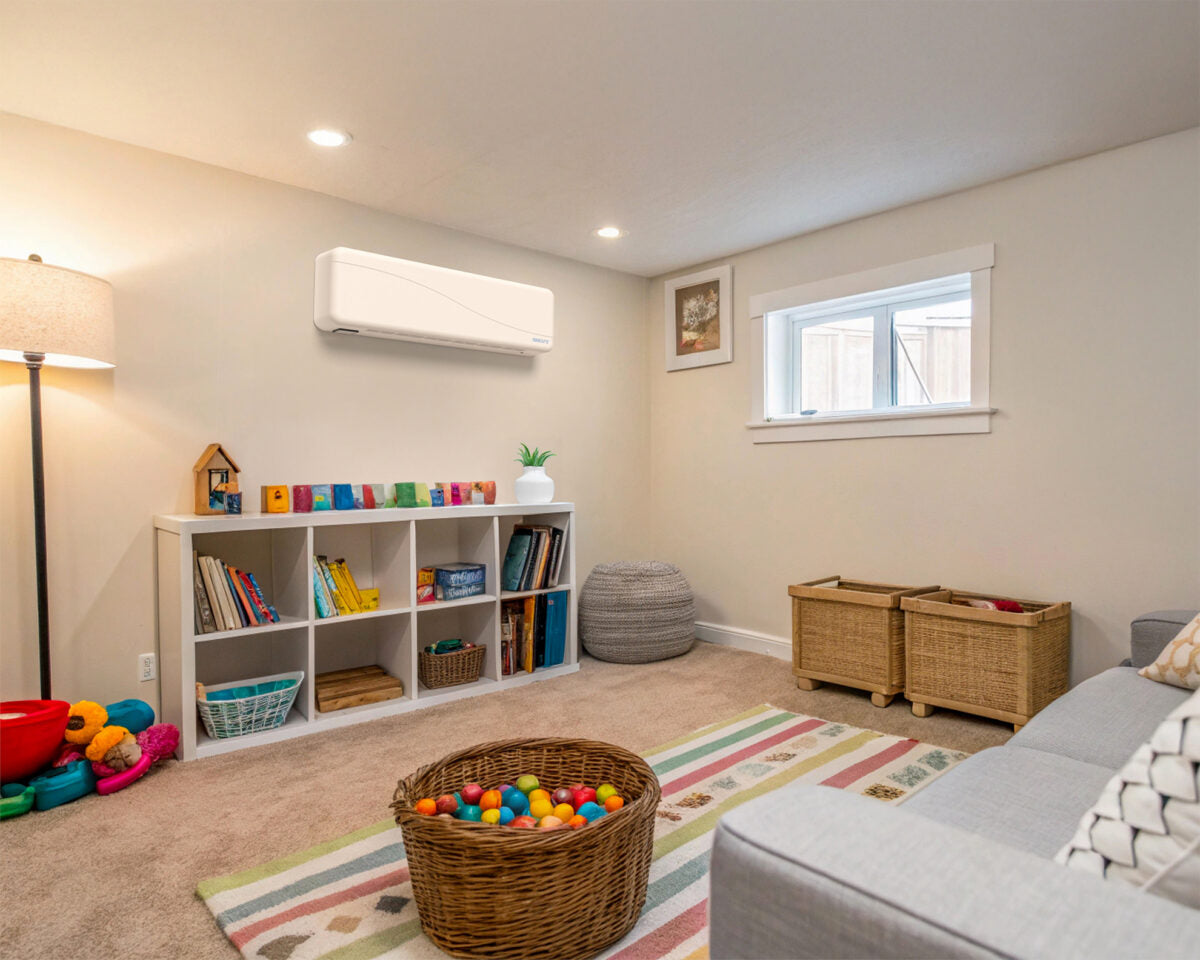

A high-capacity decentralised wall-mounted MVHR unit from the Italian manufacturer Helty. Equipped with a high-efficiency enthalpy counter-flow heat exchanger, it ensures continuous dual-flow air exchange with up to 88% thermal energy recovery while maintaining natural indoor humidity levels. Designed to serve medium-to-large living spaces, small offices, professional practices, and open-plan areas. Features advanced multi-stage filtration (ePM2.5 65% / F7) that captures pollen, fine dust, smog, and allergens for cleaner indoor air.
Core Advantage: Maximum Comfort, Smart Control, and Quiet Operation
High-Capacity Ventilation Performance: Increased airflow rate up to 120 m³/h with 4 operating speeds + Night mode + Hyperventilation mode.

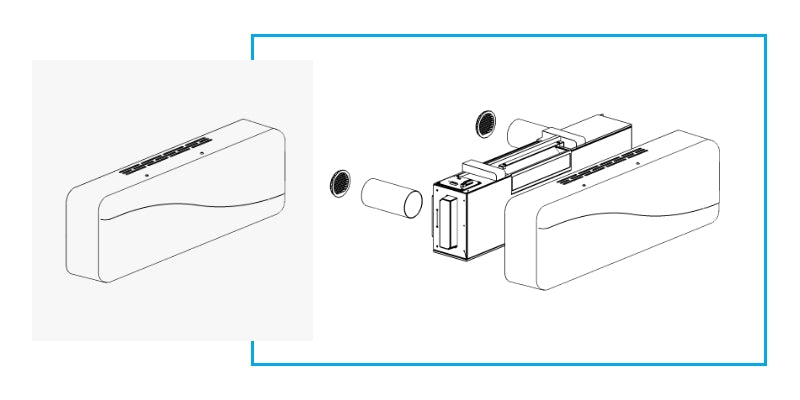

Minimal Structural Impact: Clean installation without requiring bulky ductwork throughout the room—only requires drilling two small 100 mm diameter holes through the exterior wall (2x Ø100 mm).
Enthalpic Heat & Moisture Recovery: Counter-flow enthalpy heat exchanger recovers up to 88% of thermal energy while maintaining optimal indoor humidity, preventing dry indoor air in winter and eliminating mould risk.
Smart Control & Monitoring: Automatic indoor climate management via an integrated hygrometric sensor (humidity sensor), Helty Home mobile app (Wi-Fi), IR remote control, and Modbus RTU rs485 support.
CLICK FOR MORE DETAILS - MANUAL
Detailed Overview of Capabilities and Technological Features
-
High Performance & Flexible Adjustment:
-
Airflow adjustment range: 13 / 30 / 45 / 60 / 80 / 120 m³/h (Night mode + 4 standard speeds + Hyperventilation).
-
Continuous dual-flow operation providing a reliable alternative to push-pull systems.
-
-
Acoustic Comfort:
-
Sound Pressure Level: 19.5 to 51.5 dB(A).
-
-
Multi-Stage Air Filtration:
-
Supply Air (Intake): ePM2.5 65% (F7) / Coarse 60% (G1) filter, capturing pollen, dust, allergens, and fine particulates.
-
Extract Air (Extraction): Coarse 70% (G2) filter protecting internal components.
-
LED filter replacement indicator on the control panel.
-
-
Smart Humidity Control: Integrated hygrometric sensor automatically adjusts ventilation speed when humidity levels rise to maintain optimal air quality.
Full Technical Specifications (FlowULTRA)
| Parameter / Feature | Value / Details |
| Country of origin |
Made in Italy |
| Installation Orientation |
Horizontal |

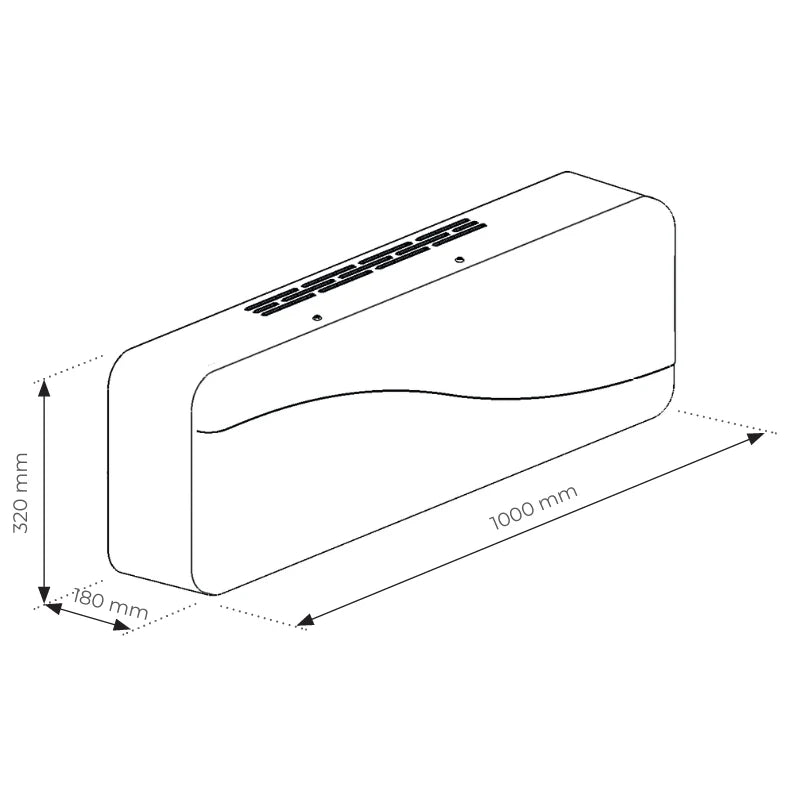

| Dimensions (W x H x D) |
1000 x 320 x 180 mm |
| Net Weight |
12 kg |
| Wall Penetrations |
2x Ø100 mm holes |
| Airflow Rate |
13 / 30 / 45 / 60 / 80 / 120 m³/h |
| Flow Adjustment |
Night + 4 stages + hyperventilation |
| Power Consumption |
3 / 6 / 9 / 13 / 16.3 / 39 W |
| Power Supply Parameters |
Mains: 230 V AC / Internal operating voltage: 24 V DC |
| Heat Exchanger |
Counter-flow enthalpy |
| Heat Recovery Efficiency |
Up to 88% |
| Sensors |
Built-in humidity sensor; compatible with external CO2 / IAQ sensors (Option) |
| Control |
Remote control, Helty Home mobile app (Wi-Fi), Modbus RTU rs485 |
| Supply Air Filter |
ePM2.5 65% (F7) / Coarse 60% (G1) |
| Extract Air Filter |
Coarse 70% (G2) |
| Energy Efficiency Class |
A+ (Cold) / A (Temperate) / E (Warm) |
| Included Accessories |
Digital manual QR card, installation template, MVHR filters, 2 white external grilles, 2 air ducts (Ø100, L=500mm), wall mounting kit, IR remote control with batteries |
| Product Code (STD) |
1VMC02011 |
CLICK FOR MORE DETAILS - MANUAL
You can install HELTY yourself or use our installation service.
