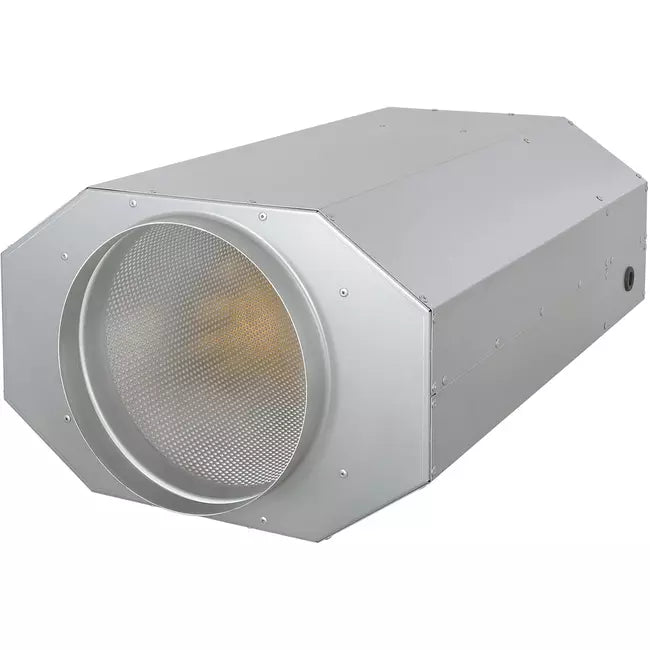

DUCT ACOUSTIC FAN RUCK EMI 150 E2M 25W O 01
Ruck ventilators GmbH is a best-known brand in the ventilation industry, known for producing top-quality products that regulate climate and ventilation. Made in Germany.
The EMI E2M is the insulated version of the latest and most efficient tube fan on the market, the ETAMASTER from Germany's Ruck. The EMI tube fans feature an insulation layer and a Mixed-Flow impeller with stator which ensures minimum noise level. The EMI E2M is equipped with a 3-stage asynchronous motor. Furthermore, the fan has a built-in thermal switch to prevent burning out. The tube fans are designed for universal use, e.g. for ventilation of workplaces, offices, dressing rooms and shops. The EMI E2M series is available with capacities from 560 m³/h to a maximum of 3240 m³/h and with diameters from 150 mm to 400 mm respectively.
Ruck fans GmbH, is a leading German company with more than 25 years of experience.
RUCK EMI 150 E2M 25W O 01 - Up to 620 m³/h
- With sound insulation
- 3-stage control
- AC motor
- Casing made of galvanised sheet steel
- Built-in thermal switch
- Mixed-flow impeller with stator
Click for more detail - OFFICIAL DATA
TECHNICAL DATA
|
Connection diameter |
150 mm |
|
Number of phases |
1~ |
|
Number of poles |
2 |
|
Type of motor control |
3-position switch |
|
Category code |
35 |
|
Capacitor µ |
1.5 µF |
|
Capacitor Voltage |
450 V |
|
Weight |
10.2 kg |
|
IP Motor |
IP00 |
|
Insulation Class Motor |
F |
|
Max. Operating Current |
0.2 A |
|
Max. pressure |
200 Pa |
|
Max. Air Volume |
620 m³/h |
|
Max. Current Consumption |
0.2 A |
|
Max. power consumption |
47 W |
|
Max. Static Efficiency |
30.8 % |
|
Max. allowed Medium Temperature |
60 °C |
|
Max. allowed Medium Temperature at Rated Current |
60 °C |
|
Max. allowed Ambient Temperature |
60 °C |
|
Max. allowed Ambient Temperature at Rated Current |
60 °C |
|
Max. number of revolutions |
2840 1/min |
|
Max. Total Efficiency |
35.8 % |
|
Min. Operating Temperature |
-25 °C |
|
Motor Protection |
TAI |
|
Motor type |
1~ |
|
Nominal frequency |
50 Hz |
|
Rated Speed |
2740 1/min |
|
Nominal power consumption |
47 W |
|
Nominal voltage |
230 V |
|
Nominal current |
0.2 A |
Click for more detail
OFFICIAL DATA
MANUAL.PDF
PRODUCT OVERVIEW.PDF
