INLINE DUCT FAN RUCK EL 250 E2M 01
GUARANTEED SAFE CHECKOUT 💳
INLINE DUCT FAN RUCK EL 250 E2M 01

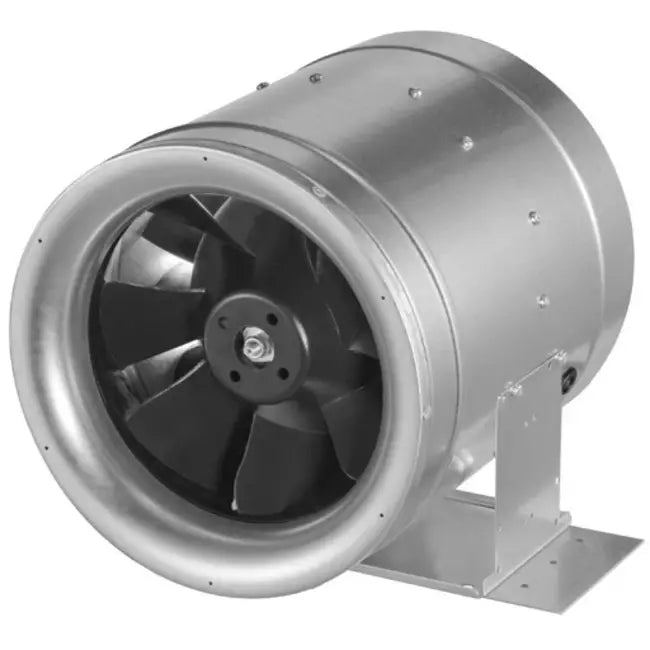

The Ruck® ETALINE inline tube fan (EL M series) features an energy-efficient motor designed for operation with a Ruck® three-step switch. It comes complete with mounting brackets for direct installation on a tube, although we recommend using the compatible Ruck® fast clamp to minimize vibrations and duct noise. The Etaline boasts significant power and is 50% more economical than other inline tube fans. It includes a built-in thermal switch to prevent overheating and is equipped with a Mixed-Flow impeller featuring a stator, ensuring low noise levels even at high flow rates.
Available in the EL M series, capacities range from 360 m3/h to a maximum of 1710 m3/h, with diameters from 125 mm up to 250 mm respectively. Ruck ventilatoren GmbH, a leading German company with over 25 years of experience, leads the market in energy-efficient inline tube fans. With a dedicated team of over 300 employees, they continually innovate and uphold quality assurance to meet the latest ERP (Energy Related Product) standards, delivering superior products.
RUCK EL 250 E2M 01 - Up to 1710 m³/h
- 3-step or with adjustable speed
- With plastic housing
- Including mounting brackets
- Built-in thermal switch
- Mixed-Flow impeller with stator
TECHNICAL DATA
| Connection diameter | 250 mm |
| Number of phases | 1~ |
| Number of poles | 2 |
| Control | 3-position switch |
| Control | On/Off |
| Type of motor control | 36925 |
| Category code | 35 |
| Capacitor µ | 6 µF |
| Capacitor Voltage | 450 V |
| Weight | 7.07 kg |
| IP Complete Unit | IPX4 |
| IP Motor | IP00 |
| Insulation Class Motor | F |
| Max. Operating Current | 0.82 A |
| Max. pressure | 510 Pa |
| Max. Air Volume | 1710 m³/h |
| Max. Current Consumption | 0.82 A |
| Max. power consumption | 180 W |
| Max. Static Efficiency | 49 % |
| Max. allowed Medium Temperature | 50 °C |
| Max. allowed Medium Temperature at Rated Current | 50 °C |
| Max. allowed Ambient Temperature | 50 °C |
| Max. allowed Ambient Temperature at Rated Current | 50 °C |
| Max. number of revolutions | 2930 1/min |
| Max. Total Efficiency | 53 % |
| With timer | No |
| Min. allowed Voltage | 230 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TAI |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 2850 1/min |
| Nominal power consumption | 180 W |
| Nominal voltage | 230 V |
| Nominal current | 0.78 A |
