Dimplex Opti-myst Cassette 500 Projects - Automatic Water Vapour Burner

Cassette 500 Projects Opti-myst Hybrid Automatic Water Vapour Burner

Here we present the Dimplex Opti-myst Cassette 500, a 50 cm wide unit designed specifically for DIY projects where you want to create your own Opti-myst water vapour fireplace.

Opti-myst technology, developed by Dimplex, uses water vapour and LED lights to create 3D flame effects. This results in a stunning flame illusion, which is why these fireplaces are often referred to as Opti-myst, Hybrid, or Water Vapour fireplaces.

The Dimplex Cassette 500 comes with a standard black metal top plate. However, you can also purchase a set of decorative logs that can be placed on top of the cassette to enhance the realistic appearance of the flames.

Hybrid fireplaces, such as the Dimplex Cassette 500, are highly versatile and can be installed in a variety of locations, as they do not require a connection to a flue system. All that is needed is an electrical outlet. The Dimplex Cassette 500 does not generate heat, making it ideal for modern homes where additional heat is not required, but you still want to enjoy the cozy ambiance of a fireplace.

Additionally, the Cassette 500 has a built-in sound module that can create sparkling fireplace sound effects.

Requires Fixed Water Connection

Cassette 500 Project requires a connection to a fixed water supply.

Being connected to a fixed water supply means that the cassette is automatically refilled with water when necessary. You will never have to manually refill the cassette with water - it happens completely automatically!

The model with automatic water connection can also be used with an external water container and a special water pump. Please contact our customer service for more information on this.

If you don't have the option to connect Cassette 500 to a fixed water supply, you should choose the Cassette 500 Retail edition here.

TECH CARD

---

Key Features:

• Opti-myst Water Vapour Technology: Creates realistic, 3D flame effects using LED lighting and water vapors. No actual flame or heat is produced.

• Perfect for DIY Projects: Ideal for installing in custom-built fireplace setups. This insert doesn’t require a flue, making it versatile and easy to install.

• Automatic Water Refill: The cassette connects to a fixed water supply for automatic refilling, eliminating the need for manual water changes.

• Sound Module Included: Features a built-in sound module that emits soothing crackling fireplace sounds, enhancing the realistic ambiance.

• Remote Control: Convenient remote control allows you to adjust settings from a distance, offering full control over the flame effects.

• Energy-Efficient: Requires minimal power, with a maximum consumption of 220W, ensuring low energy usage.

• No Heating Effect: The Cassette 500 does not provide heat, making it a great choice for creating atmosphere without adding extra warmth, perfect for modern homes.

---

Specifications:

• Brand: Dimplex

• Product Type: Water Vapour Burner / Hybrid Fireplace Insert

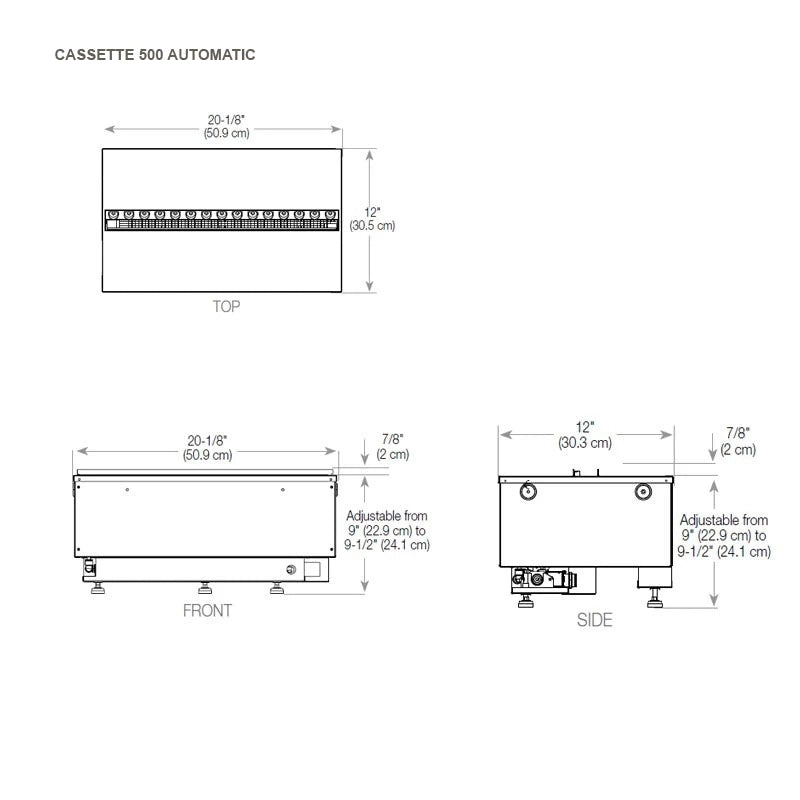

• Size:

  • Length/Width: 50.9 cm

  • Height: 22.9 cm

  • Depth: 30.5 cm

  • Weight: 9 kg

  • Cable Length: 1.5 m

• Material: Hard Plastic & Steel (Black Finish)

• Fuel Type: Water & Electricity

• Flame Colours: 1 Colour (Realistic Flame Effect)

• Heat Output: No Heat

• Water Consumption: 0.2 L/h

• Power Usage: Max 220W

---

What’s in the Box:

• Dimplex Opti-myst Cassette 500 Projects Auto

• Black Metal Top Plate

• Remote Control

• 1.5-meter Power Cord

• User Manual

---

TECH CARD

Additional Options:

• Optional Logset Decoration: Enhance the realism of your fire with two available logset options (sold separately):

  • Logset 500: A compact log set with built-in lighting effects (509mm width).

  • Logset 500 new: A compact log set with built-in lighting effects (510mm width).

Why Choose the Dimplex Opti-myst Cassette 500?

Whether you’re building a fireplace for a modern home or a stylish renovation, the Dimplex Opti-myst Cassette 500 offers a cutting-edge way to create a mesmerizing flame effect. Its innovative water vapour technology ensures a safe, beautiful display without the need for venting or heat, making it an excellent choice for spaces where additional warmth is not required. With the convenience of automatic water refill and remote control functionality, this insert is a hassle-free addition to any DIY fireplace project.
