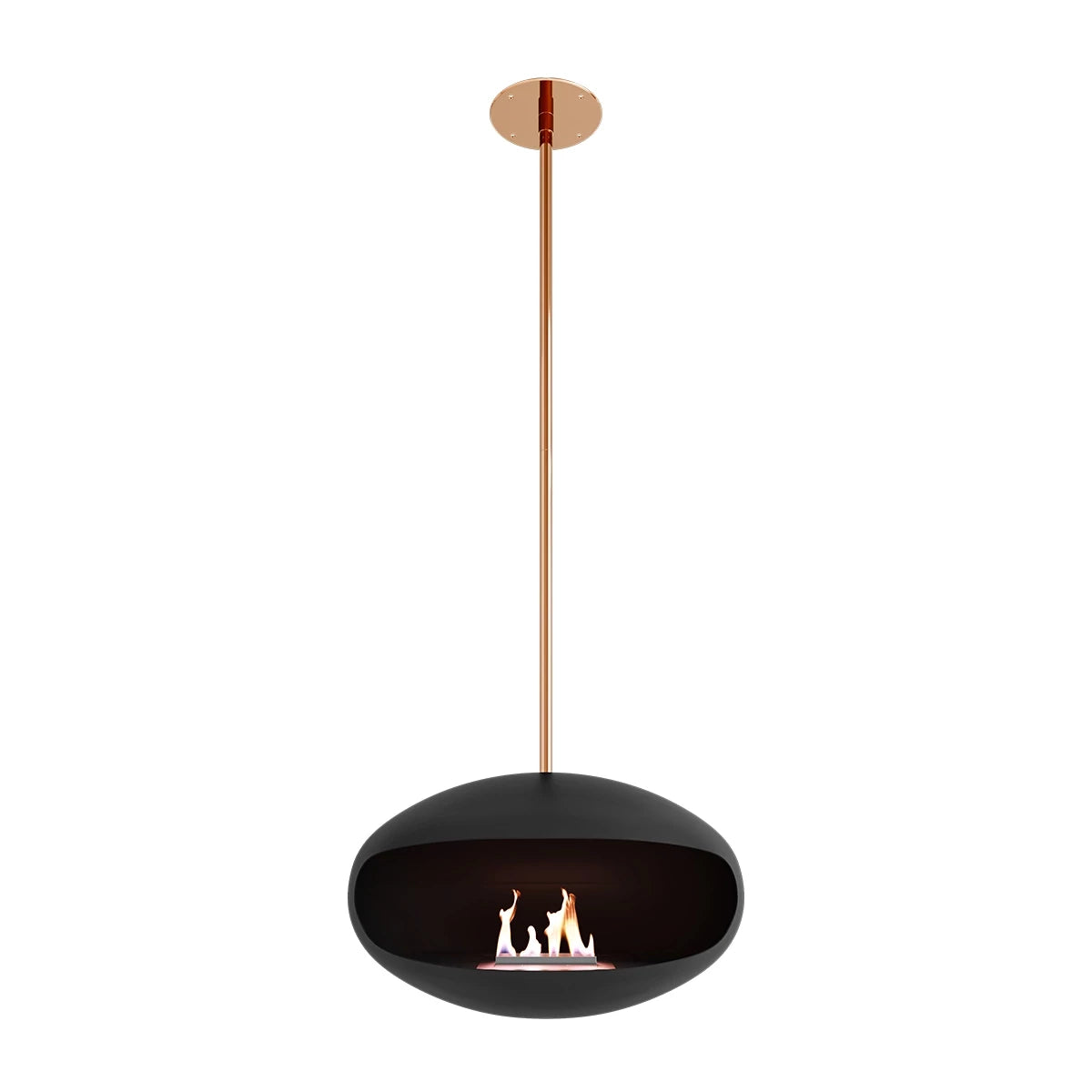

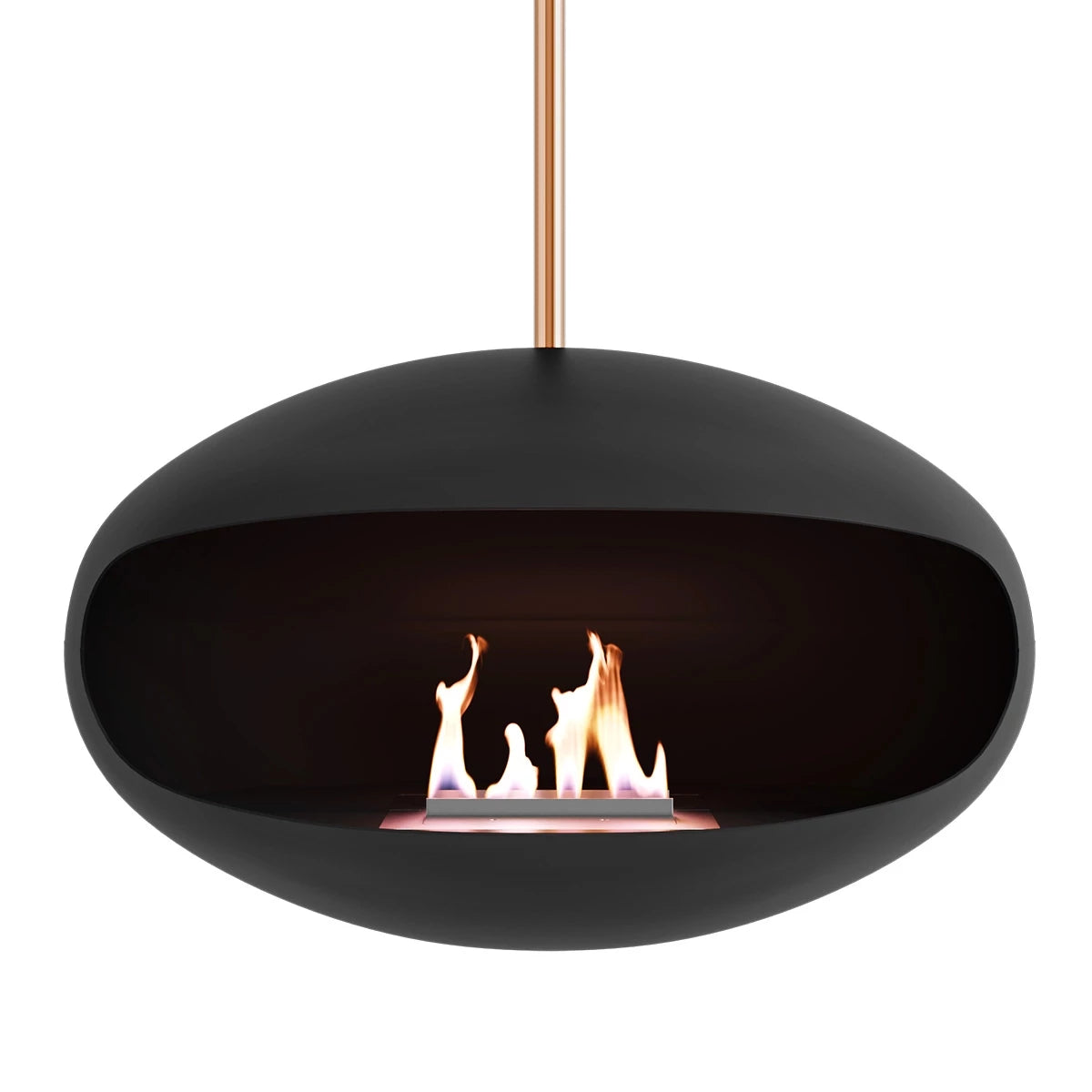

Cocoon Aeris Black - Copper mounting system

Cocoon Aeris Black - Copper mounting system

A new version of the popular Cocoon Aeris ceiling-hung bioethanol fireplace from Cocoon Fires. Now available with a matte white finish.

Cocoon Aeris is a ceiling-hung bioethanol fireplace with a manual burner, meaning it doesn't require electrical connections or a chimney, making it easy and quick to install wherever you want to enjoy the fireplace's flames.

The included burner has a capacity of 1.5 liters and can burn for up to 5 hours per bioethanol refill, with an approximate consumption of 0.30 liters per hour.

The design of Cocoon Aeris dates back to 2011 when the renowned industrial designer Federico Otero created the fireplace for Cocoon Fires. Federico Otero is also known for designing watches for TAG Heuer, lamps for BOYD Lighting, and kitchen fittings for Delta Faucet.

Mounting System

The fireplace is mounted to the ceiling using the provided ceiling bracket and rods.

Four ceiling rods are included, measuring 25 cm*, 25 cm, 50 cm, and 100 cm. You can arrange them as needed to achieve the desired length, with a maximum length of 200 cm using the included rods.

*One of the 25 cm ceiling rods serves as a connector between the ceiling bracket and the rods and must be used.

The ceiling bracket is suitable for flat ceilings only.

Highlighted Cocoon Aeris Features:

• Requires no chimney, vent, or electricity
• Up to 5 hours of burn time per refill
• Consumption of approximately 0.3 liters per hour
• Ceiling bracket for flat ceilings
• White ceiling rod in 4 parts - maximum length 200 cm
• Extension rods are available

Installation of Cocoon Aeris

Installation and mounting of Cocoon Aeris are relatively easy and can be done by anyone. It simply requires securing the ceiling bracket to the ceiling using 4 screws. Installation screws are not included, as the optimal screws depend on the ceiling material. For secure installation, the ceiling should be able to support the fireplace's weight of 24 kg.

Once the ceiling bracket is in place, screw the ceiling rod into the bracket, and finally, secure the Cocoon Aeris dome to the mounting system.

The bioethanol fireplace weighs only 24 kg, which means Cocoon Aeris from Cocoon Fires can be hung from almost any ceiling.

Made in Spain.

Key Specifications

• Product type: Ceiling-mounted Bioethanol Fireplace

• Model Name: Aeris

• Brand: Cocoon Fires

• Included: Extinguishing Tool, Bioethanol Burner, User Guide, Bracket

• Designer: Federico Otero

• Use: Indoor

• Warranty: 2 years

Dimensions & Weight

• Length/Width: 60 cm

• Height: 238 cm

• Depth: 60 cm

• Diameter: 60 cm

• Weight: 24 kg

Technical Specifications

• Minimum room size: 45 m³

• Fuel: Bioethanol

• Burning time up to: 5 hours

• Capacity: 1.5 Litres

• Heat output (max): 3 kW

• Consumption: 0.3 L/h

Burner Specifications

• Adjustable flame: Yes

• Control: Manual

• Burner Model: Cocoon 2.0 Burner System

• Flame length: 15 cm

• Remote control: No

Material and Appearance

• Material: Steel

• Steel Thickness: 2 mm

• Colour: Black

• Finish: Matte

• Interior (colour/material): Black

• Flame view: Front

• Shape: Oval

• Glass included: No

Installation Details

• Installation/Mounting: Ceiling-mounted (loft-hung)

• Flue/Chimney: Not Required

• Bioethanol fireplacesPower Requirements: No
