MPC 225 D2 40 – Box fan with frequency driven AC motor – Ruck
MPC 225 D2 40 – Box fan with frequency driven AC motor – Ruck

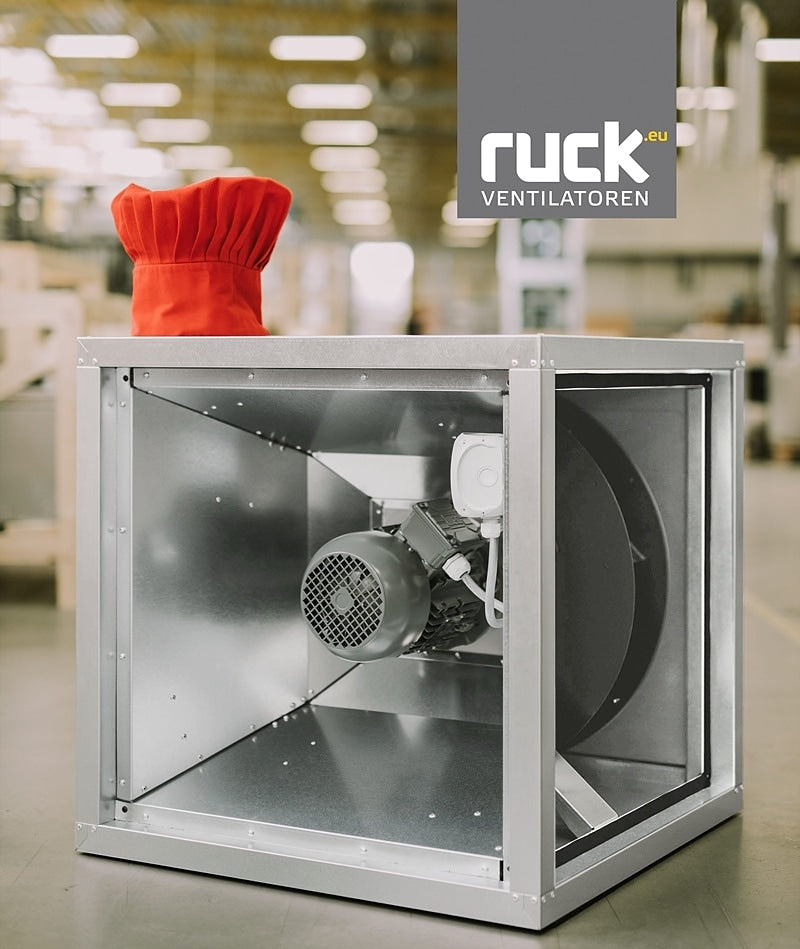

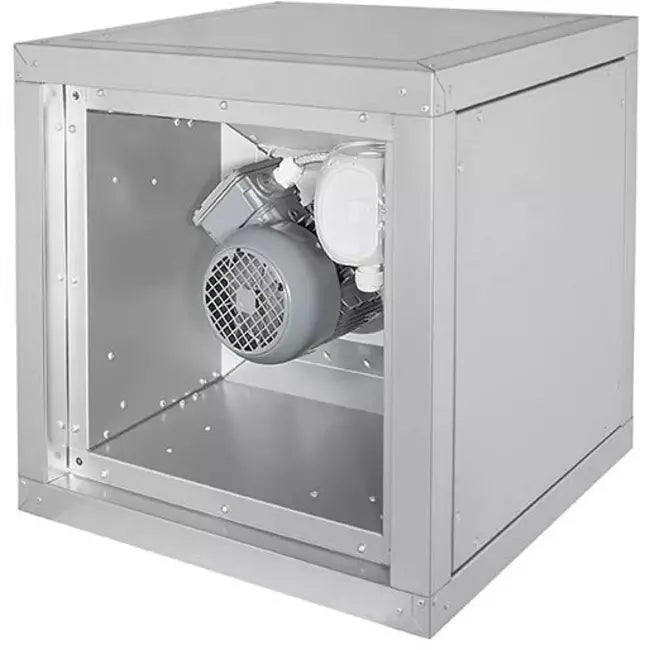

The box fan comes with 30 mm insulation and features an integrated electronic temperature control system to protect the motor from overheating. It can be installed using Ruck®’s base frame and offers a flexible discharge direction. The MPC series is available in models with air capacities from 2020 m³/h up to 19555 m³/h. Please note: operation requires a frequency converter, which can also be controlled via a variable potentiometer if desired.
MPC 225 D2 40
- Centrifugal fan with backward curved impeller
- Variable discharge direction right / left / linear
- Double wall housing made of galvanized steel sheet, insulated
- Efficient IE3 motor, frequency controllable
- Motor protection via frequency converter or motor protection switch
- With bottom tray
Ruck Ventilatoren GmbH is a renowned German manufacturer with over 25 years of expertise and a leading position in the production of energy-efficient box fans. With more than 300 dedicated employees, the company continuously develops new technologies and innovations. Ruck ensures strict quality standards and compliance with the latest ERP (Energy Related Product) requirements to guarantee reliable, high-performance products.
Specifications
- Number of phases: 3~
- Number of poles: 2
- Type of motor control: F
- Category code: 35
- Capacitor µ: 0 µF
- Capacitor Voltage: 0 V
- Weight: 35 kg
- IP Terminal Box: IP55
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 0.9 A
- Max. Pressure: 960 Pa
- Max. Air Volume: 2020 m³/h
- Max. Current Consumption: 0.9 A
- Max. Power Consumption: 465 W
- Max. Static Efficiency: 47.5 %
- Max. Allowed Frequency (3~ motors): 60 Hz
- Max. Allowed Medium Temperature: 60 °C
- Max. Allowed Medium Temperature at Rated Current: 60 °C
- Max. Allowed Ambient Temperature: 60 °C
- Max. Allowed Ambient Temperature at Rated Current: 60 °C
- Max. Number of Revolutions: 3530 1/min
- Max. Total Efficiency: 47.9 %
- Min. Operating Temperature: -20 °C
- Motor Type: 3~
- Nominal Frequency: 50 Hz
- Rated Speed: 2920 1/min
- Nominal Power Consumption: 306 W
- Nominal Voltage: 400 V
- Nominal Current: 0.7 A
- Direction of Blow Out: Shifted by 90° compared to suction
