Heat recovery ventilation system: The Ultimate Solution for Energy-Efficient Homes.

A very quiet ventilation system that provides fresh air in your apartment or office. Designed to eliminate mold and supply heated fresh air to the room. Minimum operating costs.

Prana balances humidity and CO2 levels, regulates temperature, and prevents mould and fungus formation. MVHR system.

Heat exchanger material - copper. Best MVHR system.

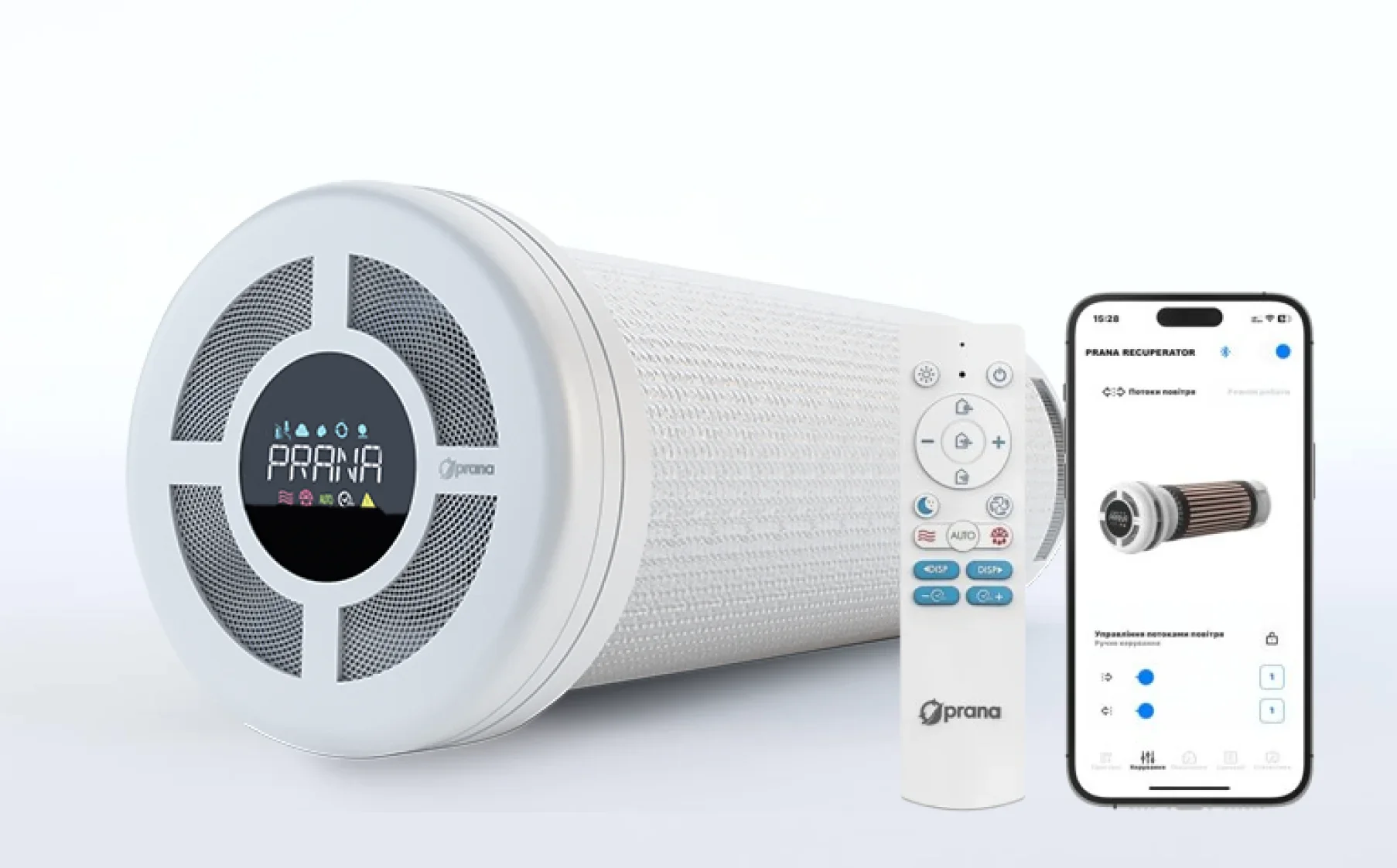

The mechanical ventilation heat recovery system, the Prana Recuperator efficiently filters pollutants, balances humidity and CO2 levels, and adjusts the temperature within a specific room. And for a tranquil, refreshing night’s sleep, you can simply switch to the noiseless Night Mode.

The Prana Recuperator/decentralised MVHR employs state-of-the-art technology to minimise its impact on both your energy expenses and the environment.

Once the unit is in place, you can manage it effortlessly via your smartphone. When you activate Auto or Auto+ Mode, the Prana Recuperator will intelligently and automatically adapt to the conditions of each room in your home.

Remarkably, they consume as little as 3 watts and a maximum of 30 watts per hour — less than the energy consumption of an average domestic lightbulb!

Operating within a copper heat exchanger, the warm exhaust air efficiently transfers its heat to the cold, fresh air being supplied to the room.

This transfer occurs in separate chambers within the copper core, ensuring that the inflow and exhaust air streams remain distinct and do not mix.

Consequently, heat recovery takes place with an impressive efficiency rate of up to 96%. Even during the summer, the inflow air is pleasantly cooled through this same mechanism, requiring minimal energy expenditure. Also, it maintains natural ionic air composition.

Our domestic ventilation systems can protect your home from dust, pollen, cigarette smoke, and a multitude of other pollutants from the outside. While also keeping your house warm and free of mould.

Heat recovery ventilation unit PRANA 160 ERP PRO:

• The diameter of the mounting hole: 162 mm.
• The length of the working module: from 450 mm. Сan be extended to the required length (option).
• The recommended area of the premises: up to 20 m².
• The volume of air exchange during recuperation: 5/14/21/32/52/70 m³/h.
• Sound power level (Lwa): 8/18/23 /32 /44/50 dB (A).
• In the “Night mode”: 12 m³/h.
• Temperature sensors.
• VOC (Total Volatile Organic Compounds) sensor.
• CO₂‑equivalent sensor.
• Humidity sensor.
• WI-FI control.
• Remote control.
• Recuperation efficiency: 96%.
• Electricity consumption: from 3,6 Wh to 17 Wh.
• Recuperator material: copper.
• Operating temperature: from -25 to +40 °C.
• Packing box size, (LxHxW): ≥750х210х210 mm.
• System weight in individual packaging: ≥ 4,3 Kg.

Mini heating up function. The mini heating up function is for PRANA 160, PRANA 210G and PRANA 210C models. It allows you to ex-tend the temperature range of the Prana system to -25 °C. The function is turned on or/ off using the remote control or via the app.In extreme temperatures, winter mode will prevent the heat exchanger and fans of the recuperator from freezing. In night mode, the temperature of the inflow air is increased by an additional 4 °C.

Winter mode. The function in the WINTER MODE is intended to prevent icing of condensate drain during cold season or to freeze it if icing has occured.
To avoid icing and to ensure the correct operation of the recuperator at a minus temperature outside, the use of the “Winter Mode” is obligatory.

Click for more detail

HOW DOES THE RECUPERATOR WORK?

SPECIFICATIONS

TECHNICAL PASSPORT OF THE DEVICE

QUICK USER’S GUIDE

VENTILATION SYSTEM INSTALLATION

Heat recovery ventilation cost

You can install PRANA yourself or use your own installation service, installation costs £250 - £450 depending on wall material.
