MPS 500 D4 40 – Box fan with frequency driven motor outside the air stream – Ruck
MPS 500 D4 40 – Box fan with frequency driven motor outside the air stream – Ruck

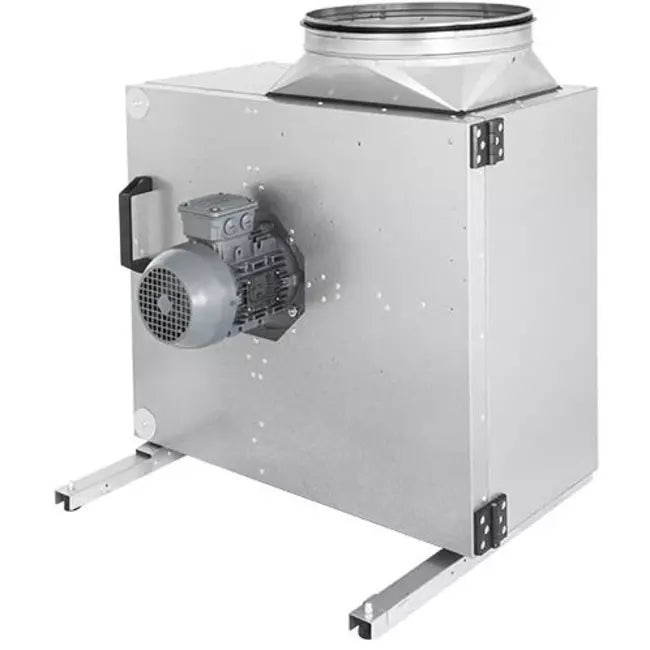

The Ruck box fan (MPC D series) features a frequency-driven motor mounted outside the airflow. This design prevents contaminated air of up to 120°C from passing through the motor, making it ideal for use in the catering industry and grease extraction applications. Note that the fan requires a frequency converter, which can optionally be adjusted via a variable potentiometer.
MPS 500 D4 40
- Backward curved centrifugal impeller
- Swing out fan unit
- Sheet steel housing double-walled, 40 mm mineral wool
- IE3 motor outside the airflow, frequency controllable
- Conveyed medium temperature up to 120 °C in continuous operation
- With condensate and grease drain
The fan is designed for easy maintenance and includes provisions for condensation and grease drainage. The MPC D series offers capacities from 1960 m³/h up to 11,840 m³/h.
Specifications
- Number of phases: 3~
- Number of poles: 4
- Type of motor control: F
- Category code: 35
- Weight: 112.7 kg
- IP Motor: IP55
- Insulation Class Motor: F
- Max. Operating Current: 2.98 A
- Max. pressure: 855 Pa
- Max. Air Volume: 7890 m³/h
- Max. Current Consumption: 2.98 A
- Max. power consumption: 1504 W
- Max. Static Efficiency: 53.7 %
- Max. allowed Frequency (3˜ motors): 50 Hz
- Max. allowed Medium Temperature: 120 °C
- Max. allowed Medium Temperature at Rated Current: 120 °C
- Max. allowed Ambient Temperature: 60 °C
- Max. allowed Ambient Temperature at Rated Current: 60 °C
- Max. number of revolutions: 1490 1/min
- Max. Total Efficiency: 57.8 %
- Min. allowed Voltage: 400 V
- Min. Operating Temperature: -20 °C
- Motor type: 3~
- Nominal frequency: 50 Hz
- Rated Speed: 1450 1/min
- Nominal power consumption: 1504 W
- Nominal voltage: 400 V
- Nominal current: 2.84 A
- Direction of blow out: Shifted by 90° compared to suction
